1974 Pieces Detachees Bicyclettes (1st to 6th Editions)
The 1st Edition of this French, English and German binder-style catalogue was published in January 1974. Subsequent to publication of the 1st Edition at least five addtional editions for a total of six were published, each of which consisted of individual pages for new and updated bicycle models which could be added to the 1st Edition binder. I am still doing research to assign publication years for the 2nd through 6th Editions.
1st Edition
|
|
|
|
|

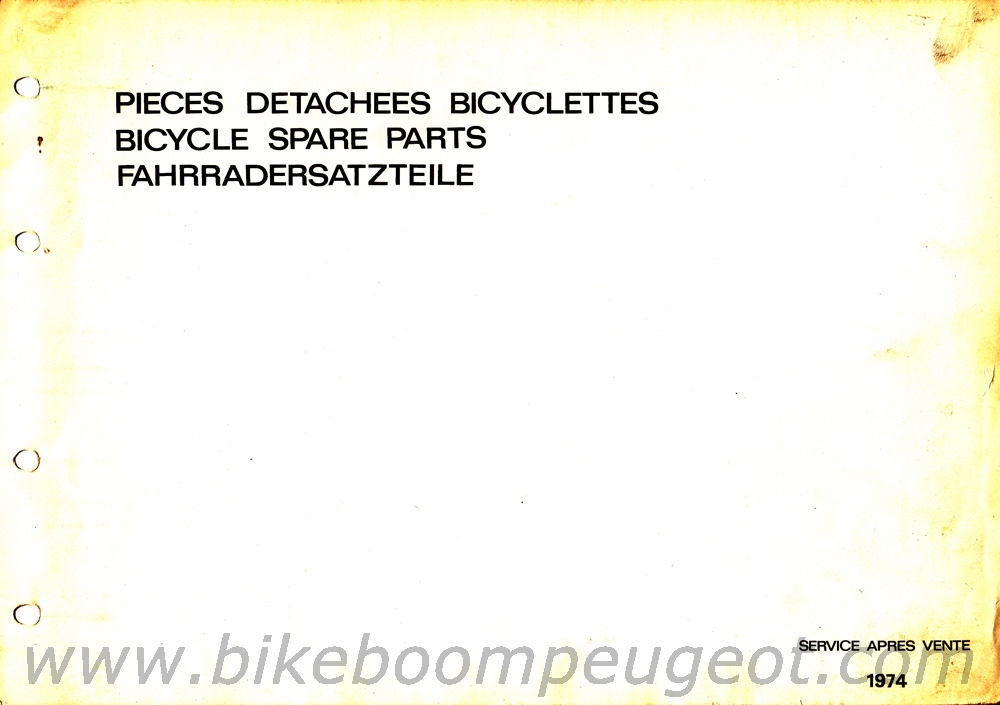

Front Cover |
Photo |

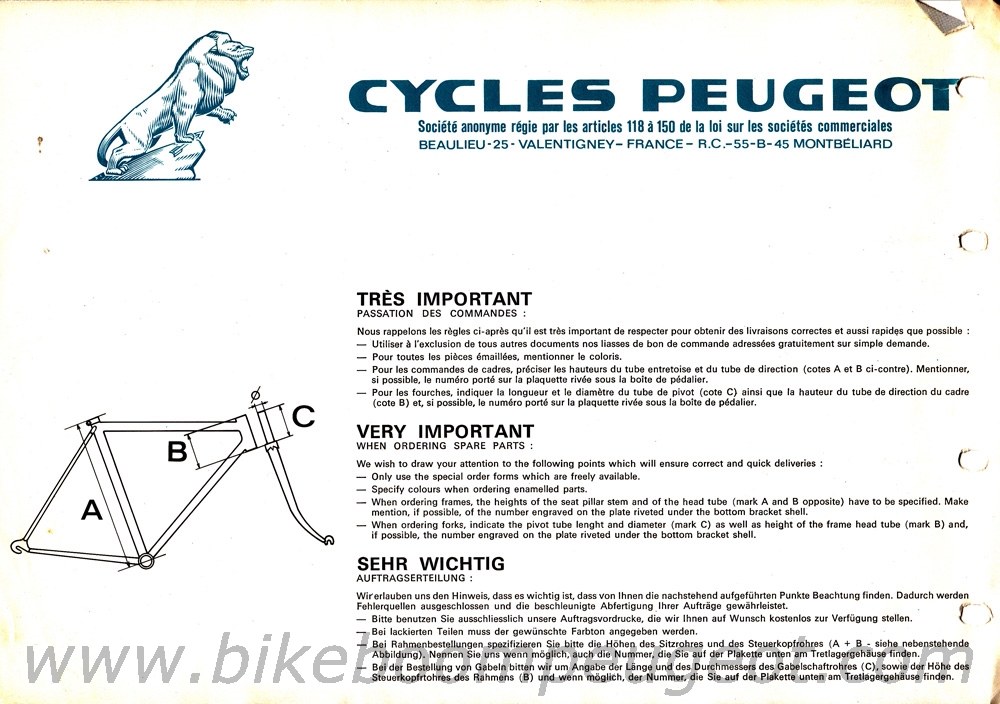

Very Important |
Bicycle Pieces & Accessories |
Color Codes |
|
|
|
|
|
|
|
|
|
|
Utilisation du Catalogue |

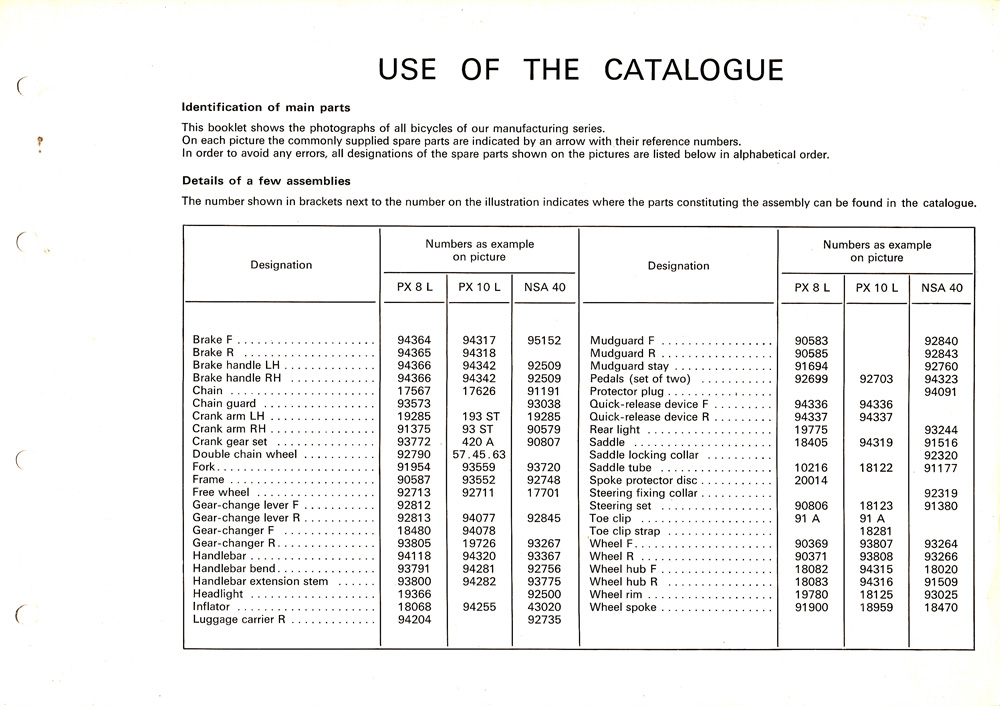

Use of the Catalogue |

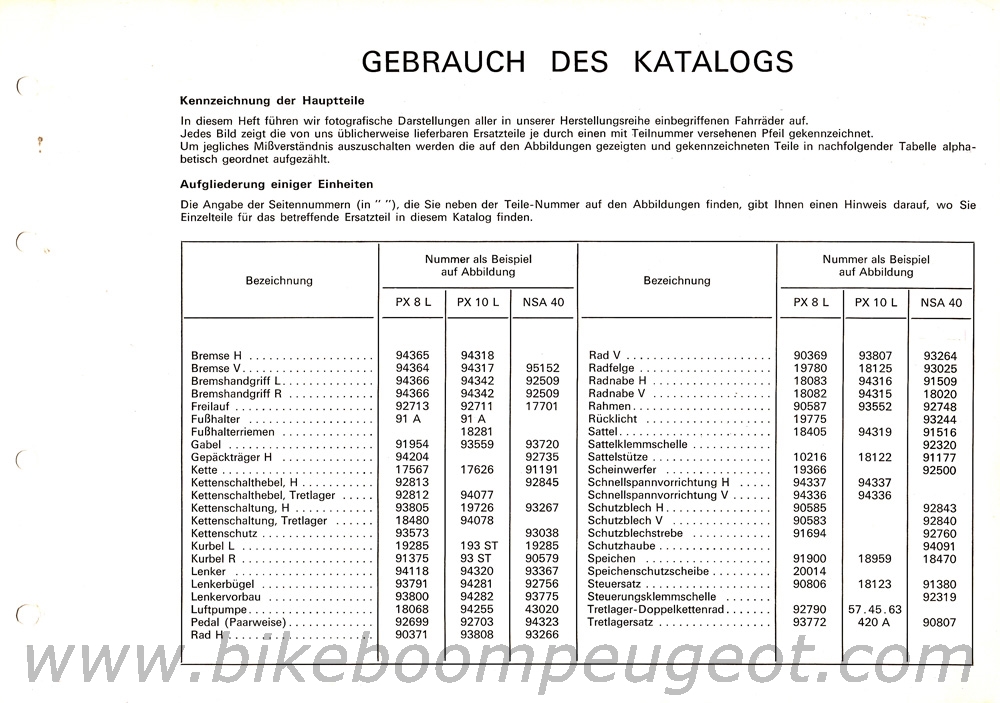

Gebrauch des Katalogs |
Table des Matieres |

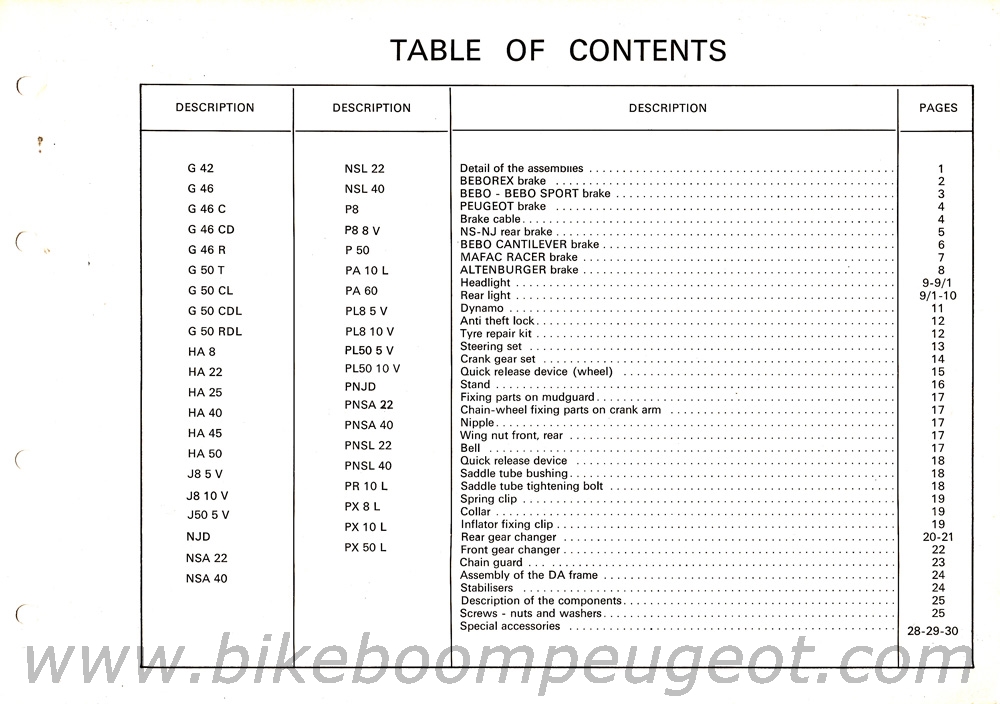

Table of Contents |
|
|
|
|
|
|
|
|
|
|
Inhaltsverzeichnis |
G42 |
G46 |
G46C |
G46CD |
|
|
|
|
|
|
|
|
|
|
G46R |
G50T |
G50CL |
G50CDL |

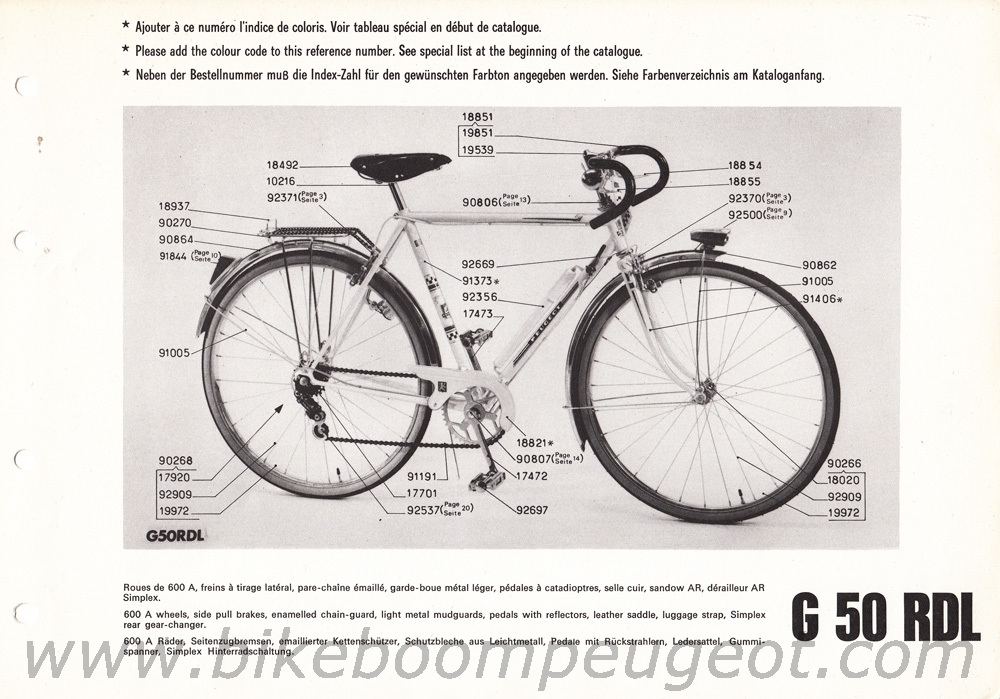

G50RDL |
|
|
|
|
|
|
|
|
|
|
HA8 |
HA22 |

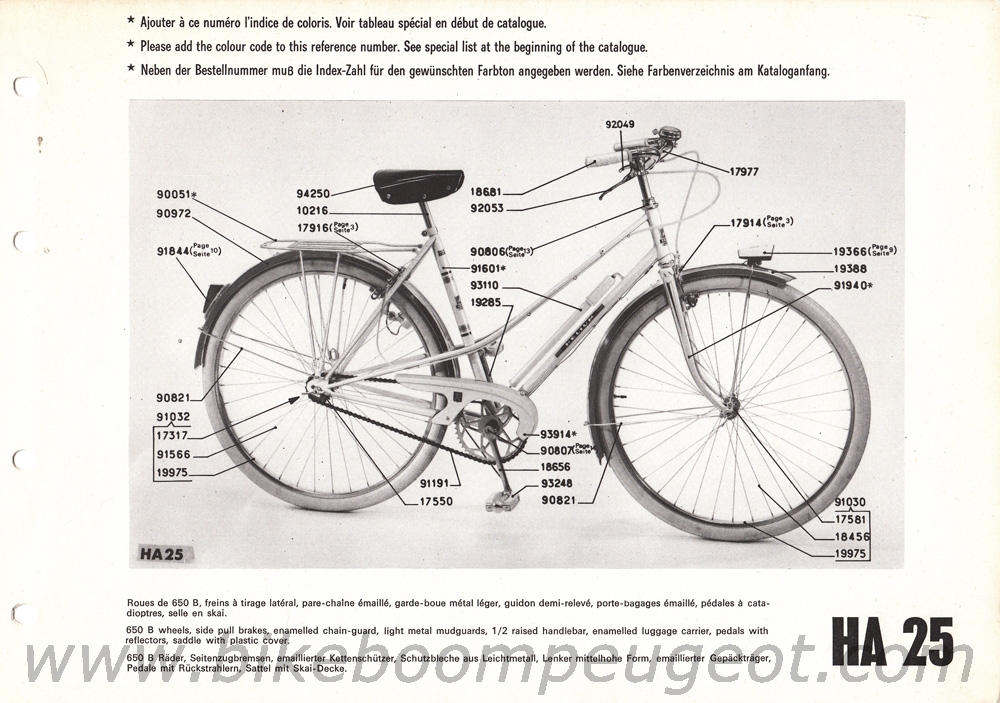

HA25 |

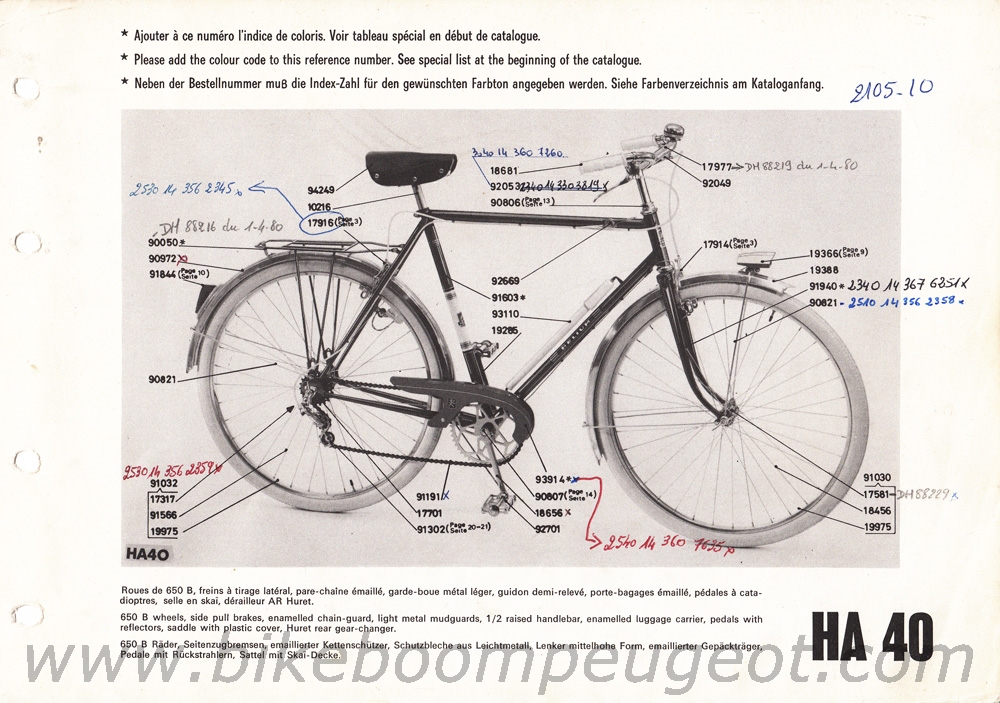

HA40 |

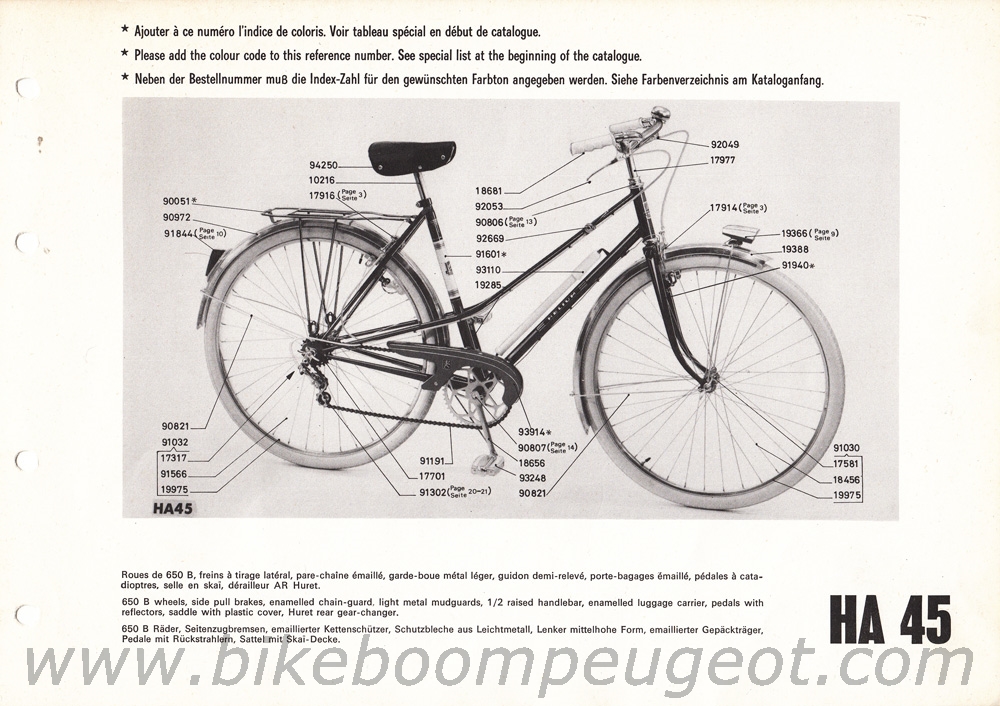

HA45 |
|
|
|
|
|
|
|
|
|
|

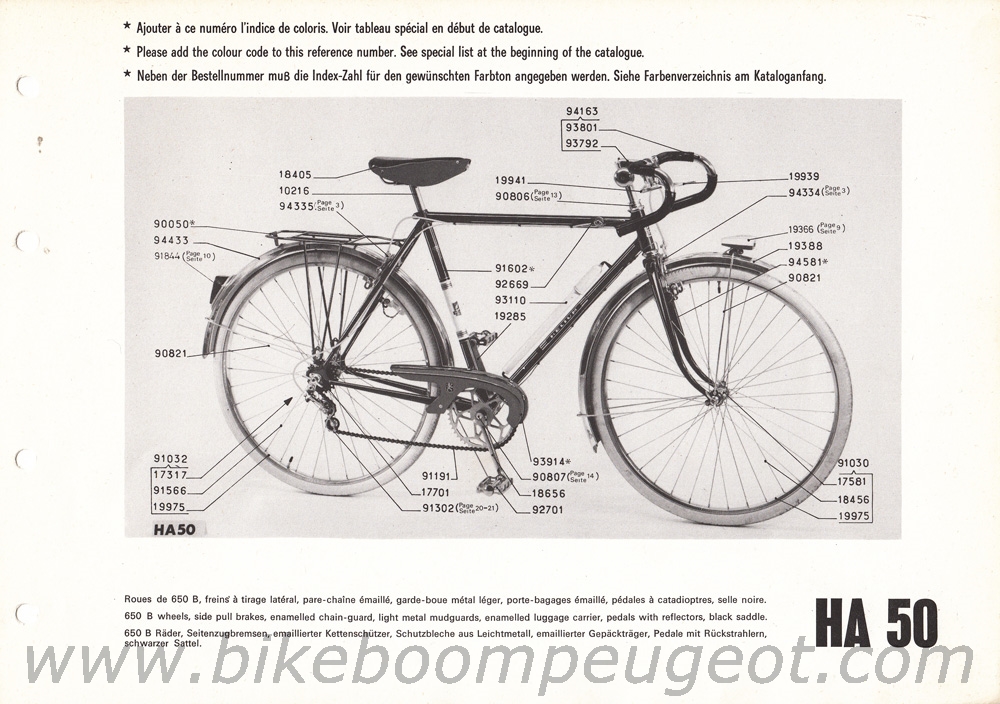

HA50 |
J85V |

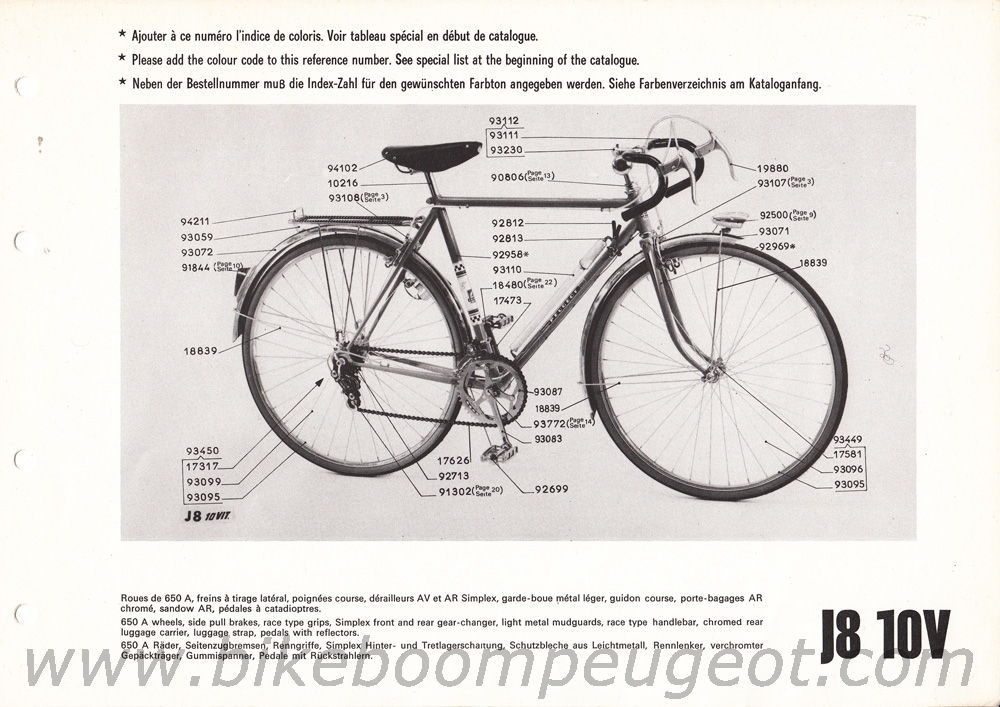

J810V |
J505V |

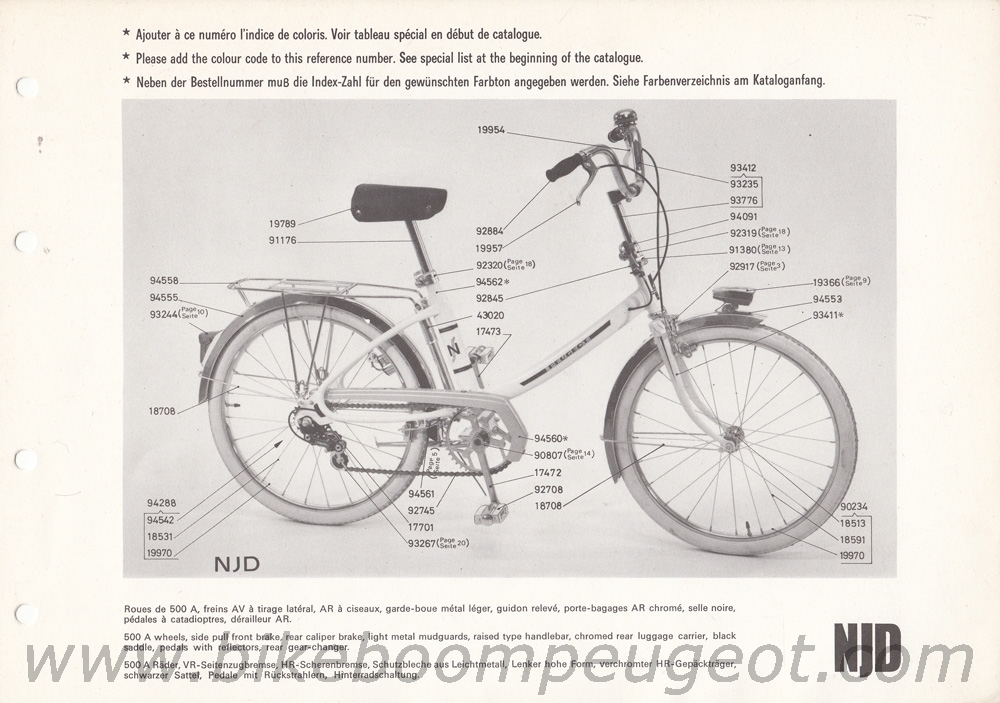

NJD |
|
|
|
|
|
|
|
|
|
|
NSA22 |
NSA40 |

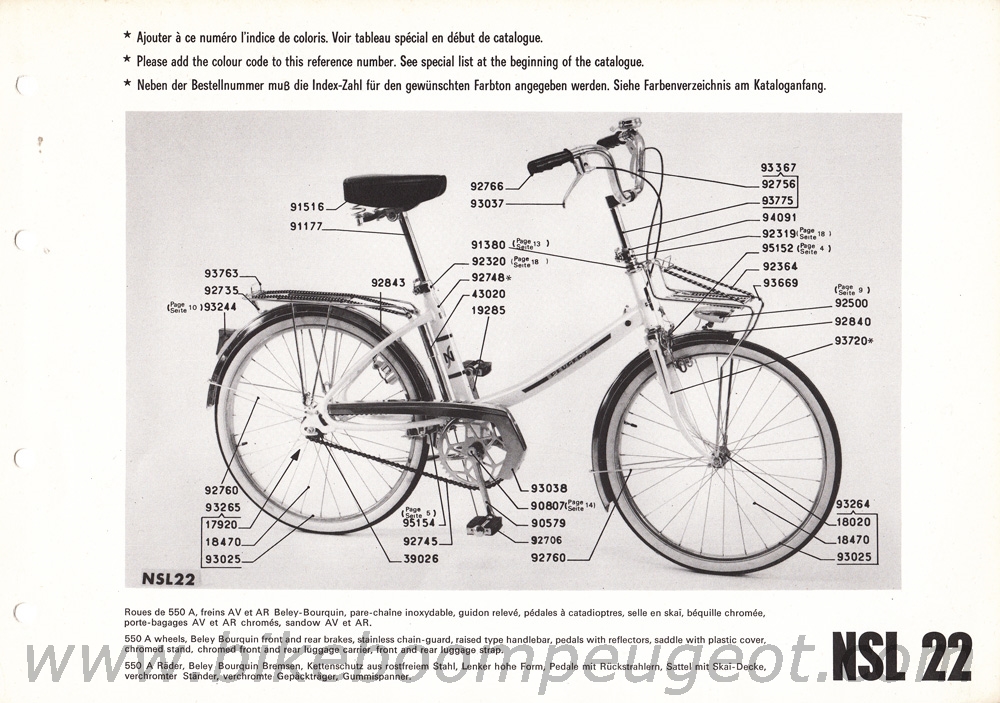

NSL22 |

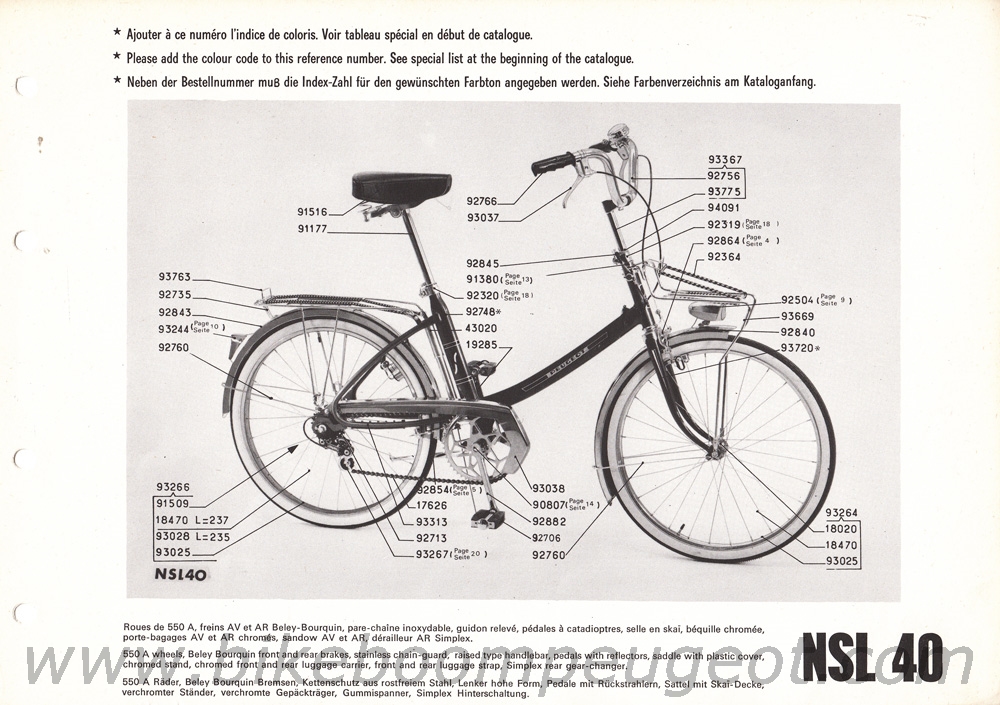

NSL40 |
P8 |
|
|
|
|
|
|
|
|
|
|

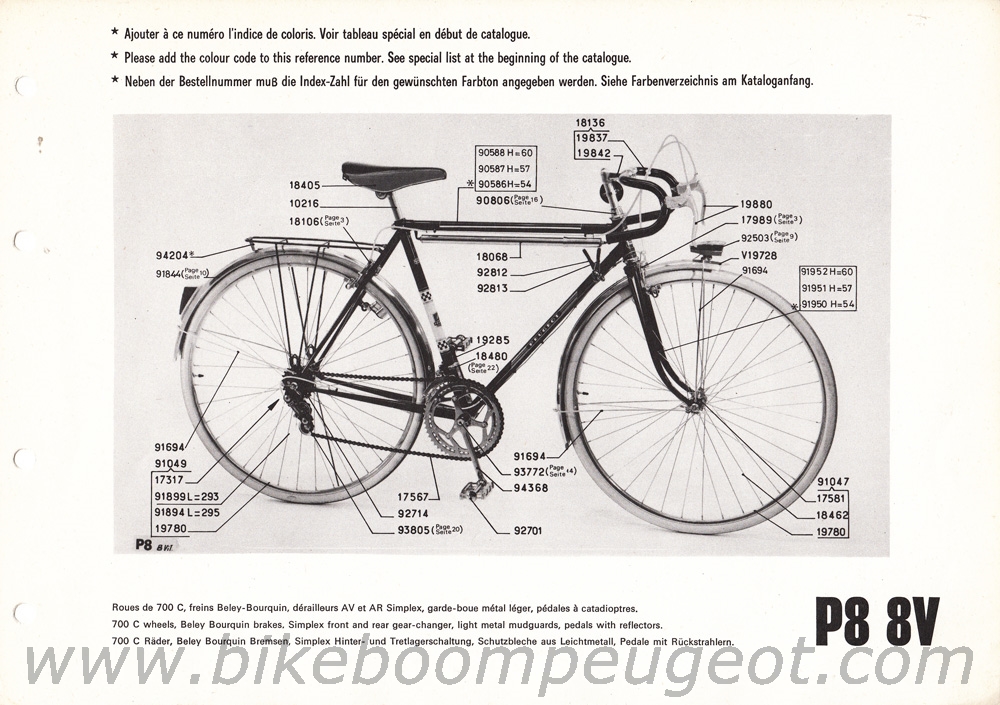

P88V |

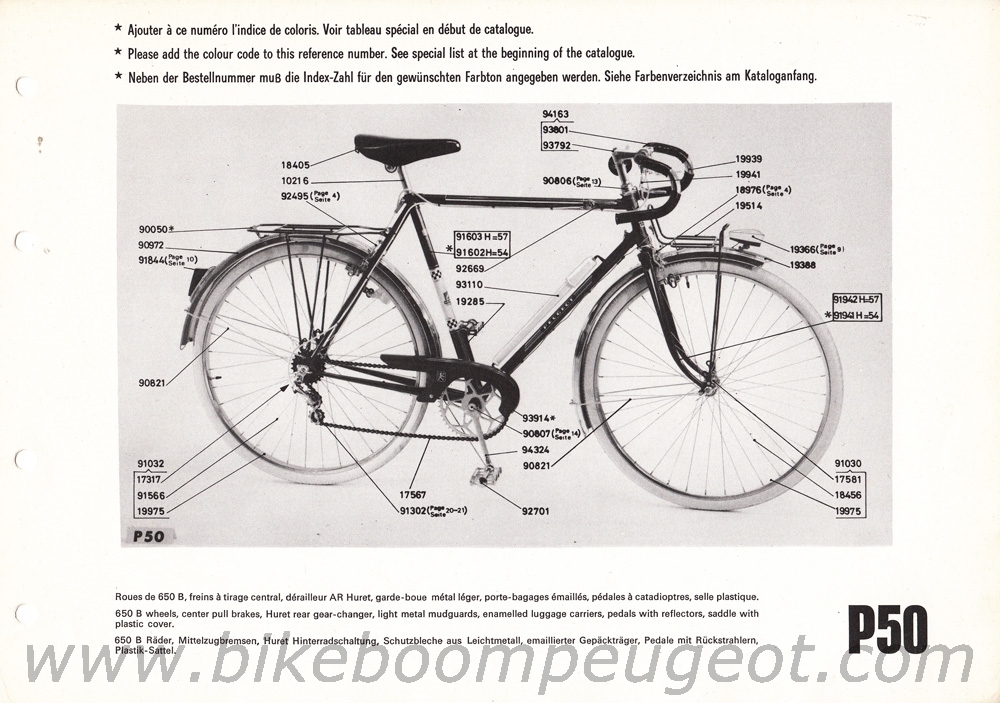

P50 |
PA10L |
PA60 |
PL85V |
|
|
|
|
|
|
|
|
|
|
PL810V |
PL505V |

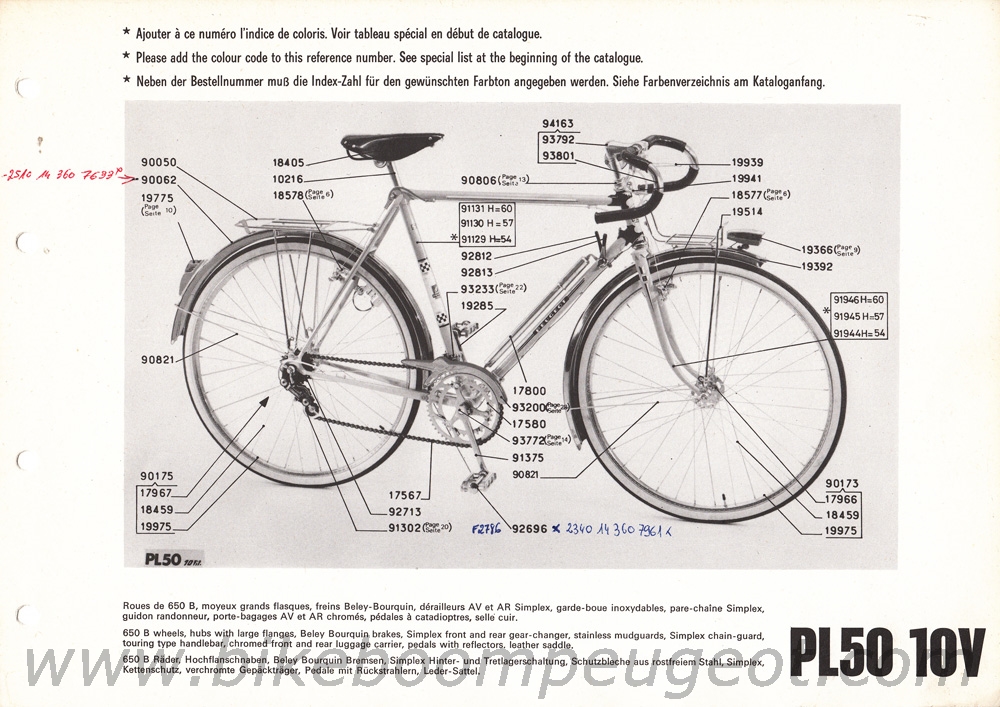

PL5010V |
PNJD |
PNSA22 |
|
|
|
|
|
|
|
|
|
|
PNSA40 |

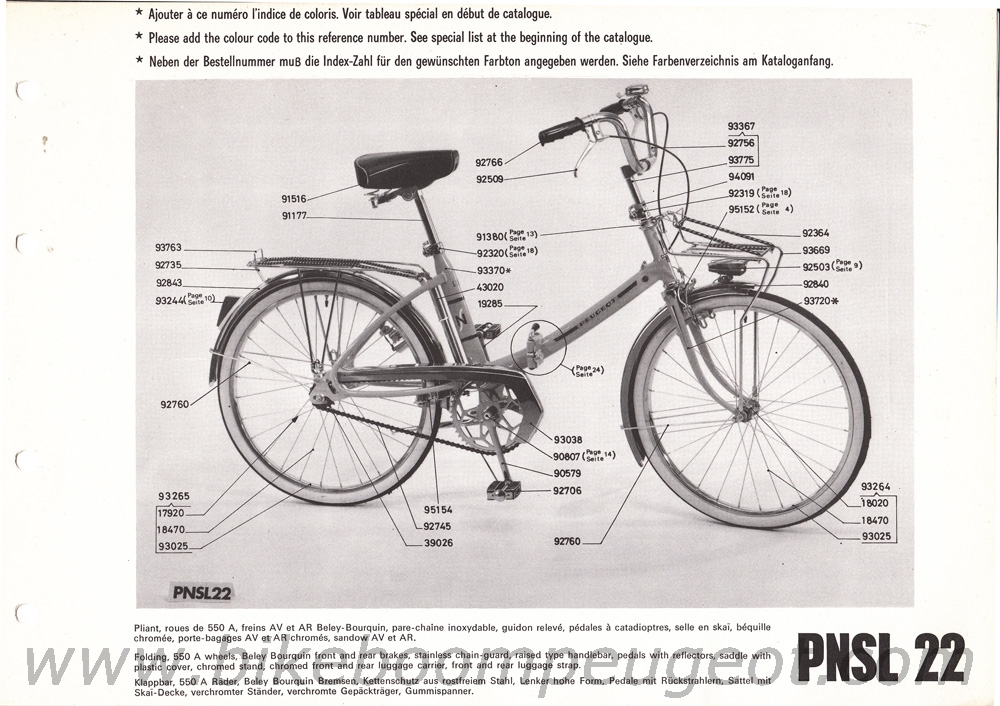

PNSL22 |

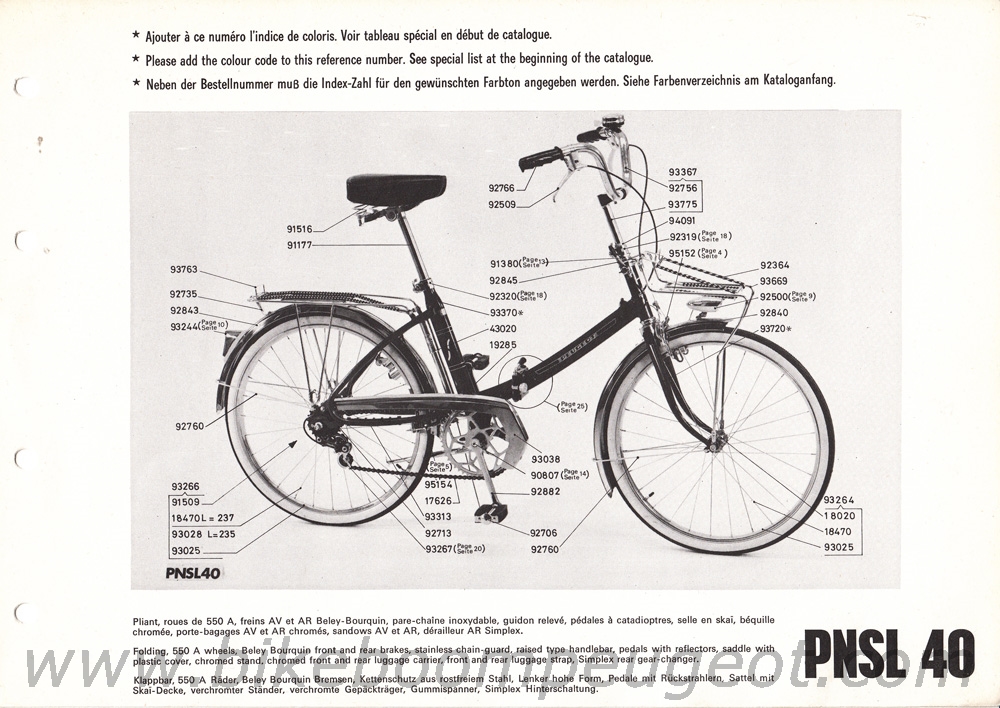

PNSL40 |
PX8L |

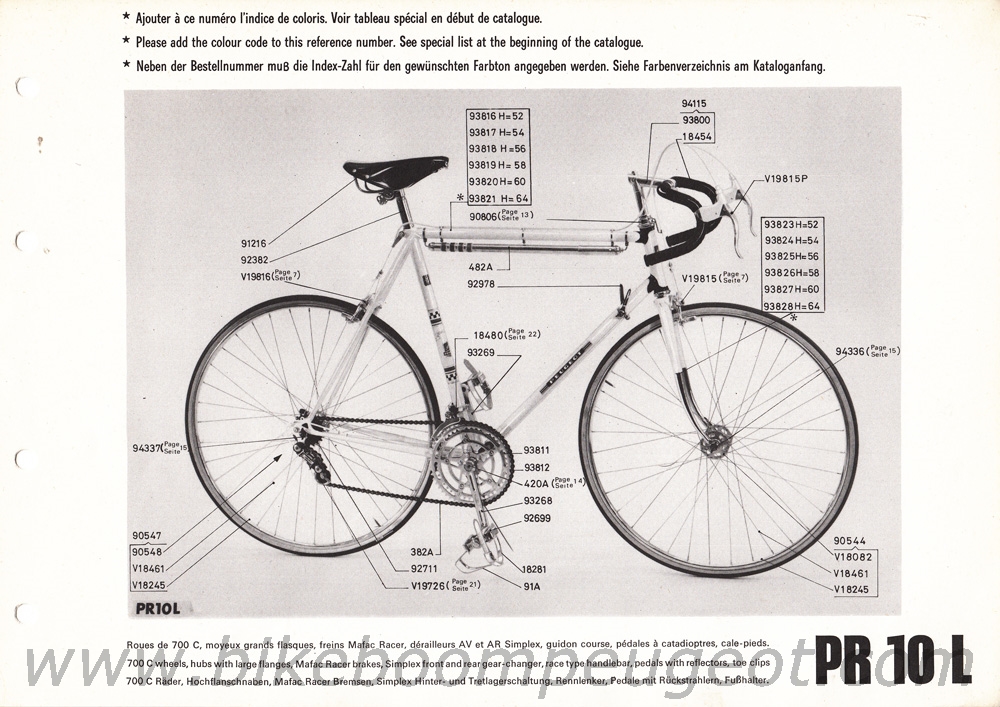

PR10L |
|
|
|
|
|
|
|
|
|
|
PX10L |
PX50L |
Detail of Assemblies |

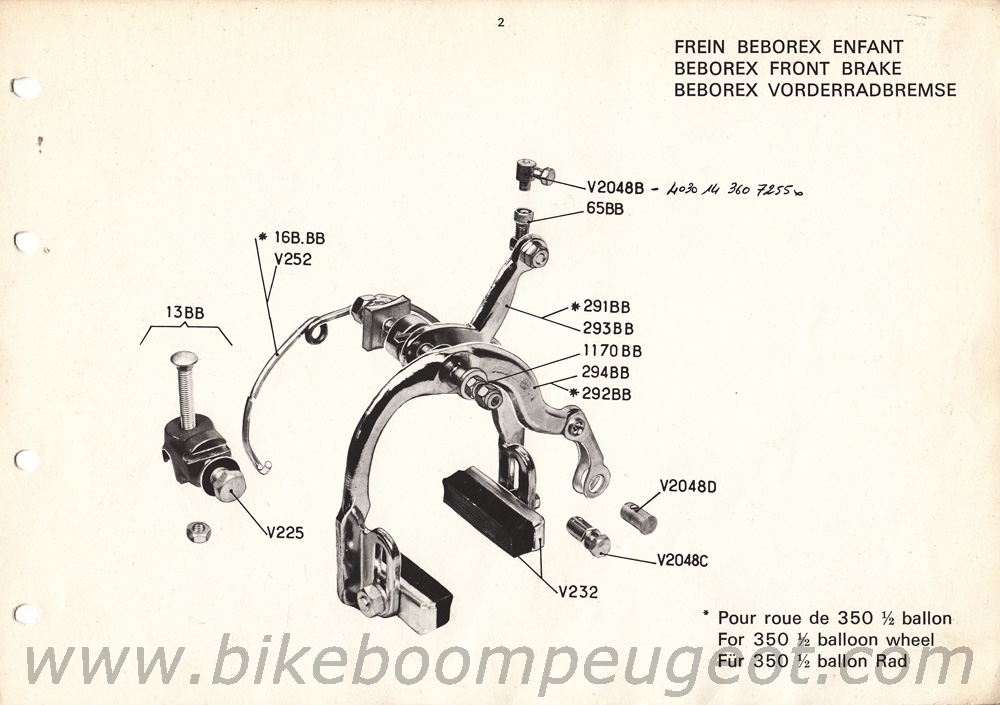

Beborex Front Brake |
Bebo-Sport |
|
|
|
|
|
|
|
|
|
|
Brake Cable, Peugeot Brake |
NS-NJ Rear Brake |

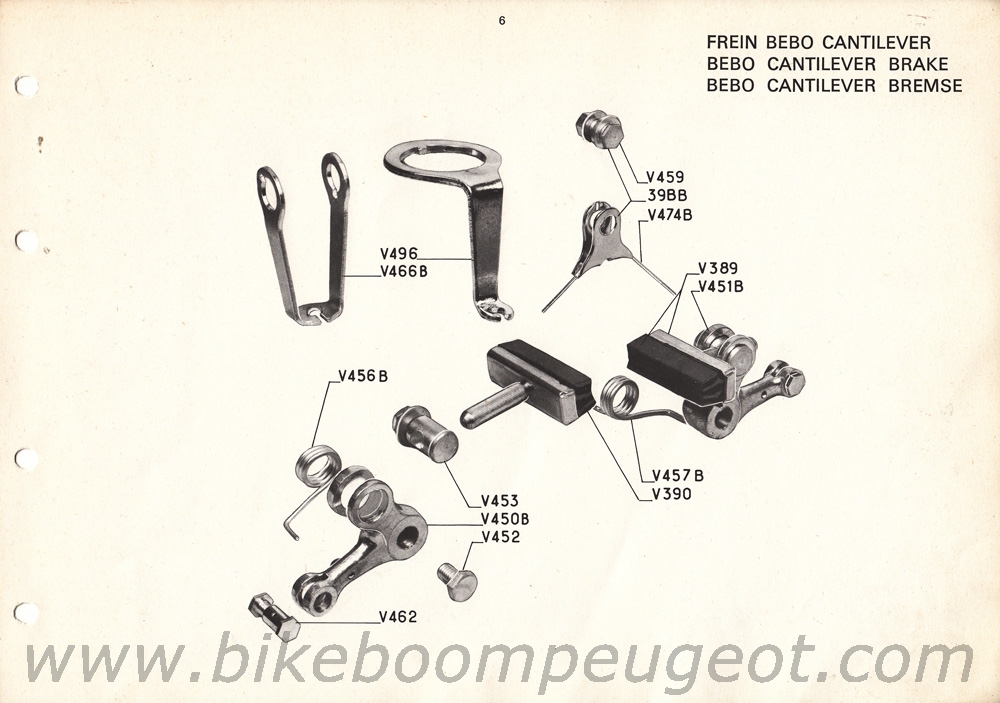

Bebo Cantilever Brake |
Mafac Racer Brake |
Altenburger Brake |
|
|
|
|
|
|
|
|
|
|

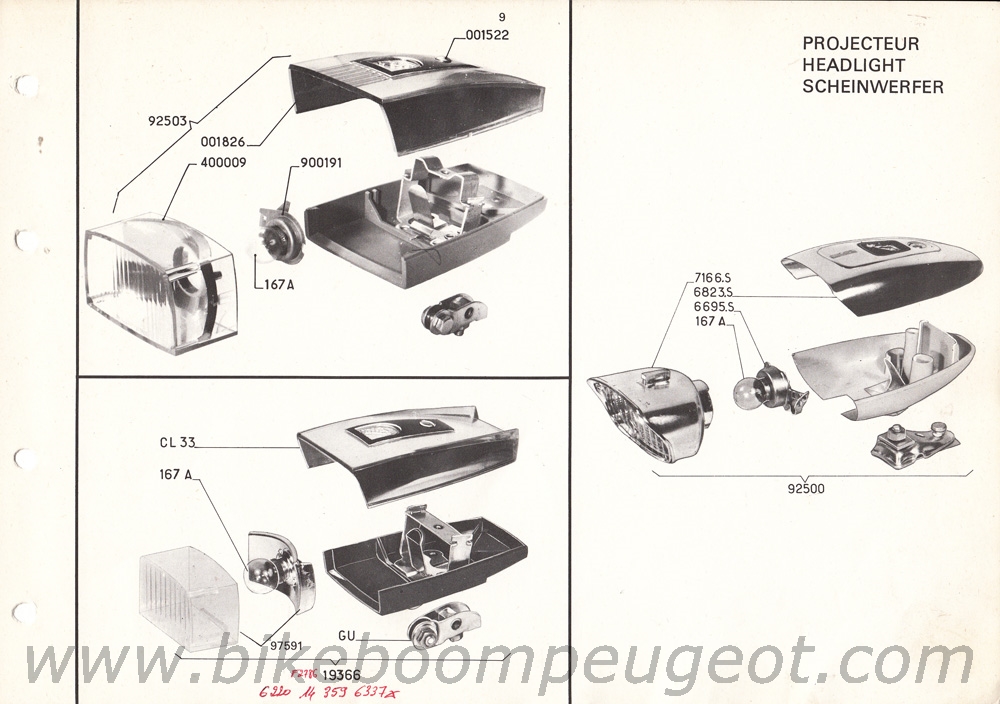

Headlight |
Headlight |
Rear Lights |
Dynamo |
Repair Kit |
|
|
|
|
|
|
|
|
|
|
Steering Set |

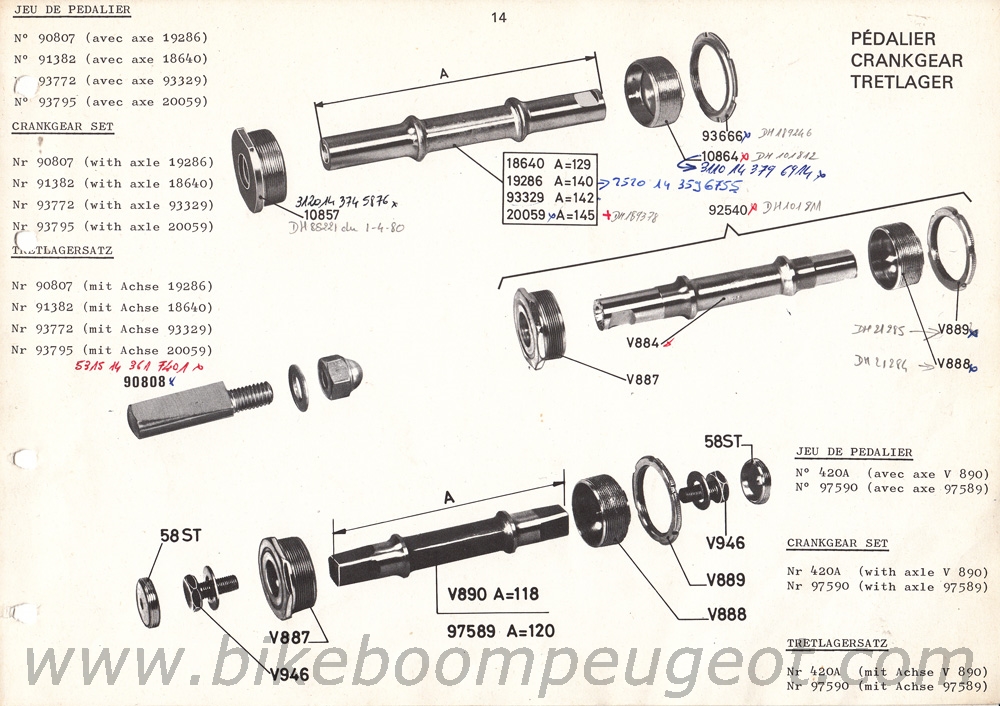

Crankgear |
Quick Release Device |

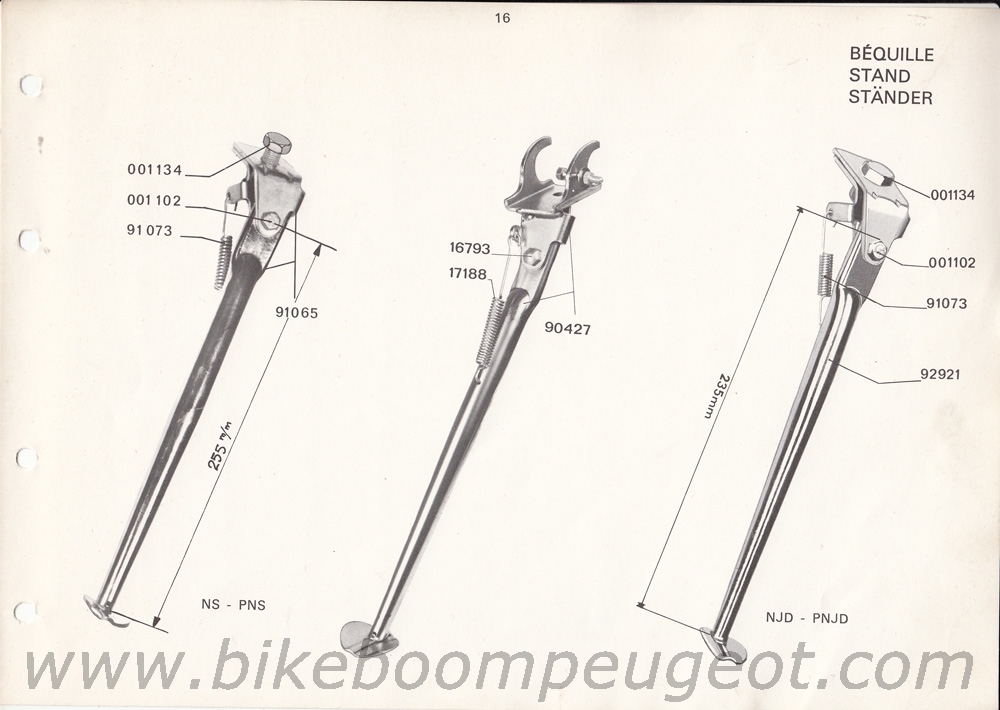

Stand |
Wing Nut, Fixing Parts, Bell |
|
|
|
|
|
|
|
|
|
|
Saddle Tube, Bolt, Quick Release Device |
Spring Clip, Cable Guide, Inflator Fixing Clip |
Rear Gear Changer |

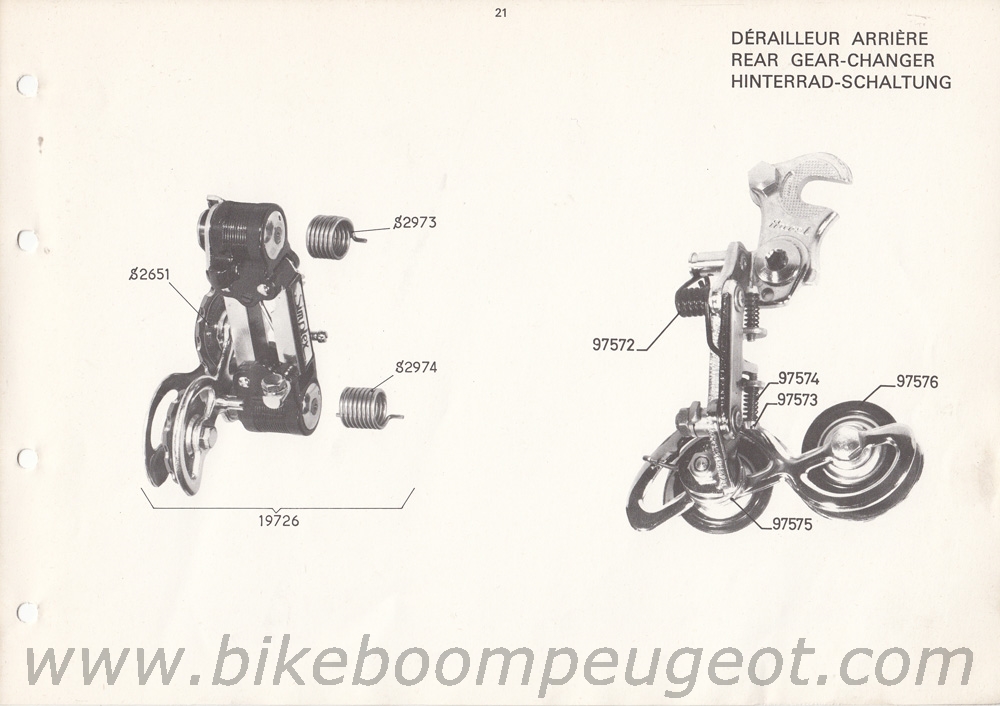

Rear Gear-Changer |
Front Gear-Changer |
|
|
|
|
|
|
|
|
|
|

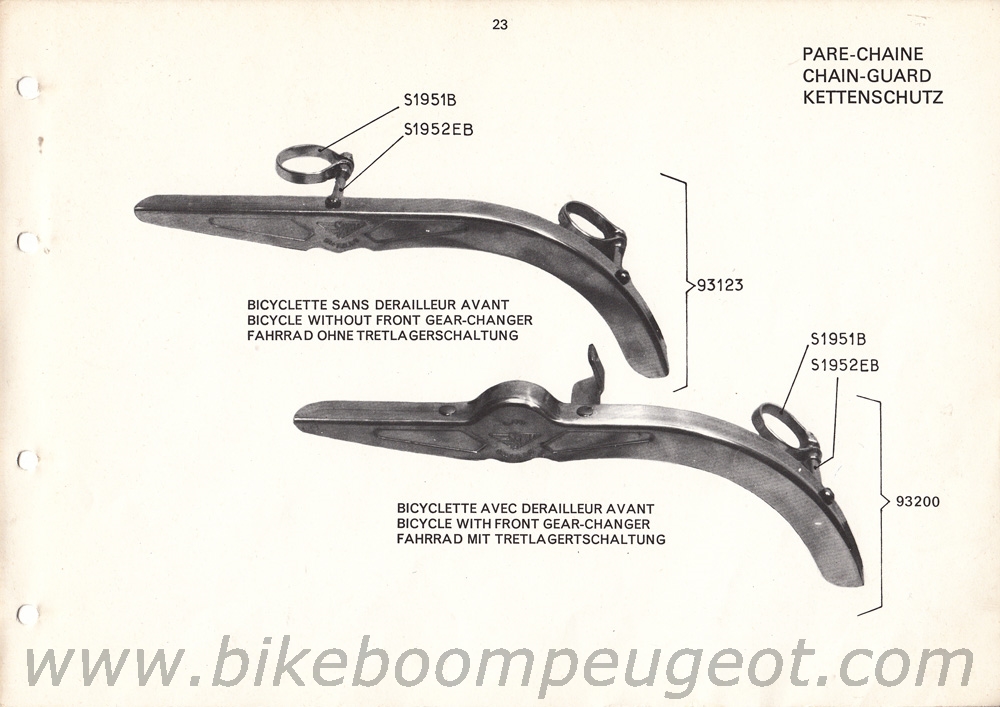

Chain Guard |
Stabiliser |
Screws, Nuts, Washers, Hubs Parts |
Screws, Nuts, Washers, Hubs Parts |
Screws, Nuts, Washers, Hubs Parts |
|
|
|
|
|
|
|
|
|
|

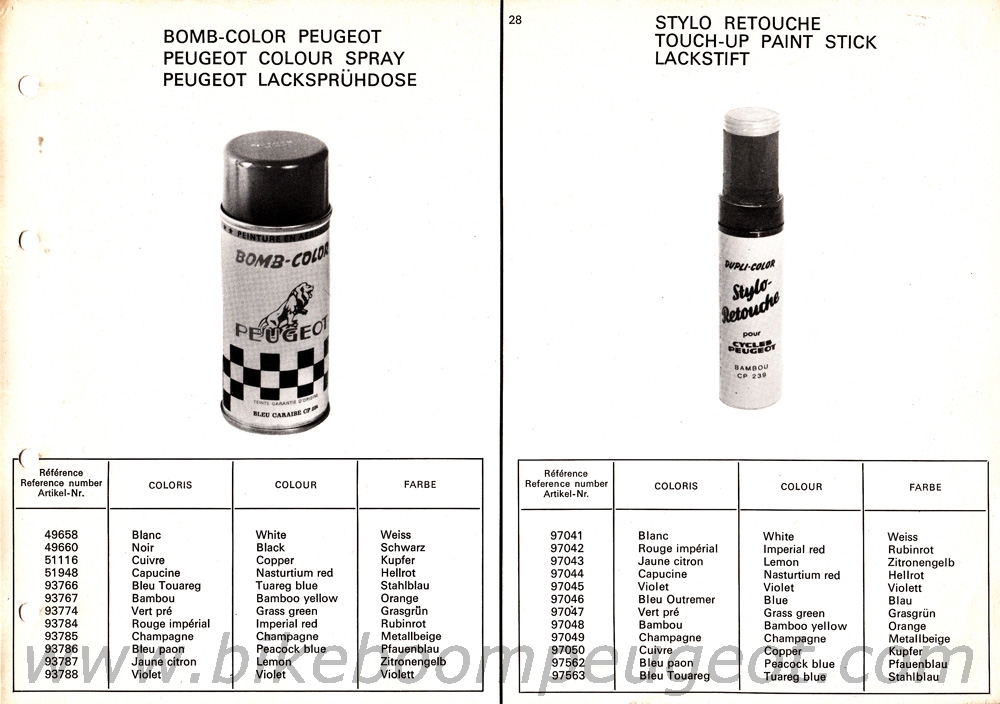

Peugeot Colour Spray, Touch-up Paint Stick |
Plastic Cloak |
Hold All, Metalic Basket |
Conditions |
Back Page |
2nd to 6th Editions
Table Des Matieres
Below are the Table Des Matieres - Types for the 2nd to 6th Editions. The first table is not numbered, but is believed to be the 2nd Edition by process of elimination since the 3rd to 6th Editions are numbered. The 2nd and 5th Edition tables were extracted from the Forum Tonton Vélo (https://forum.tontonvelo.com/viewtopic.php?t=3451&start=40) after being posted by McSpock.
|
|
|
|
|
2nd Edition |

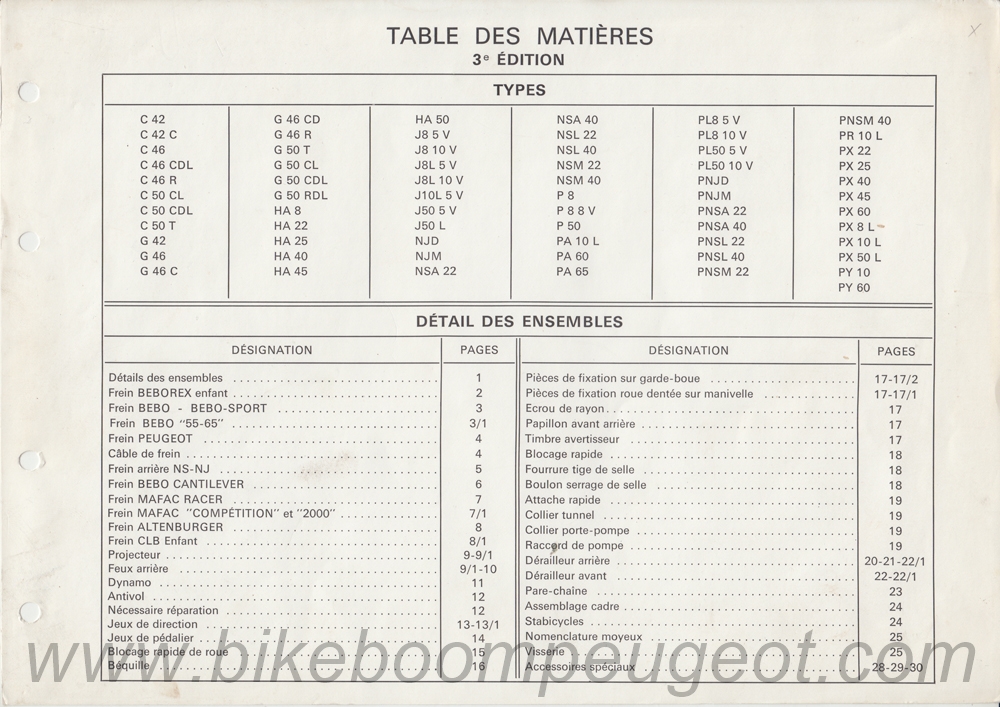

3rd Edition |

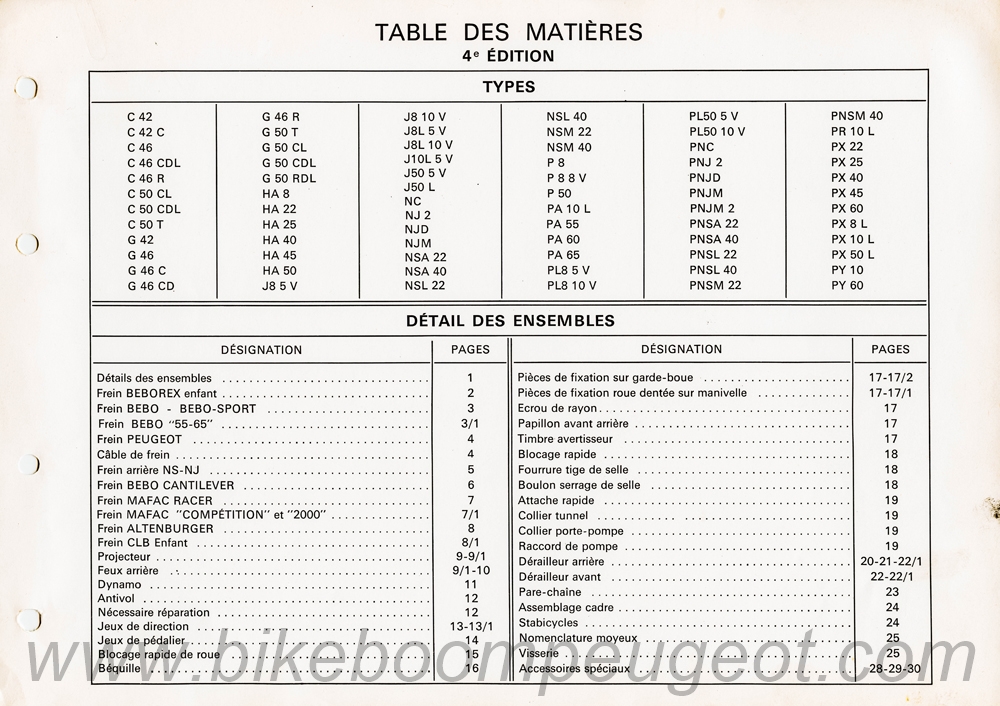

4th Edition |

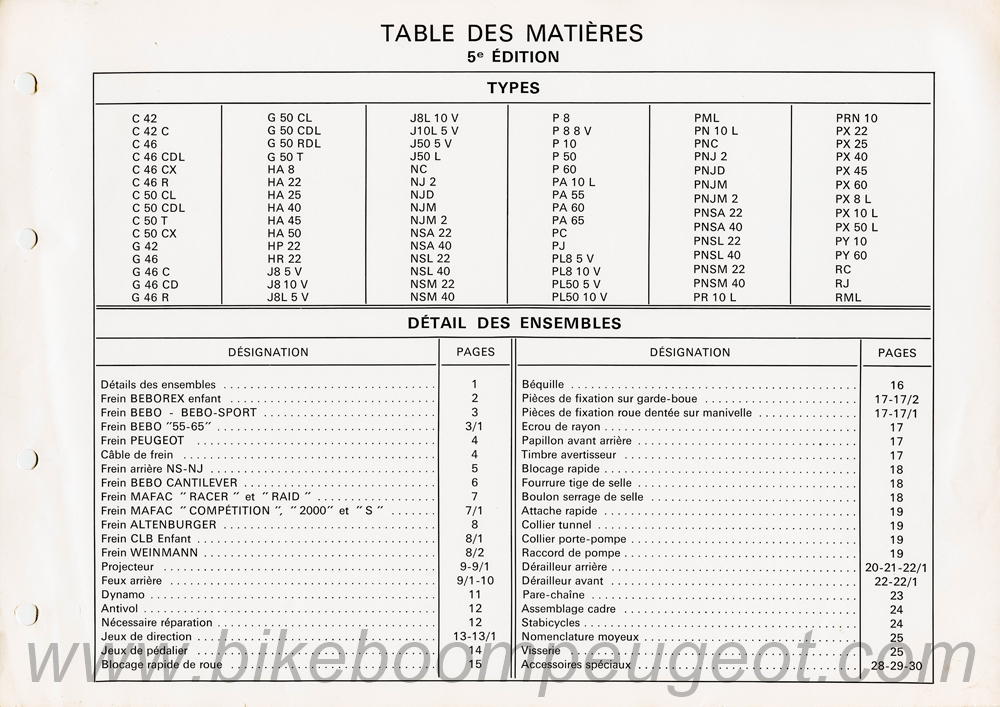

5th Edition |
6th Edition |
All of the tables from the 1st to 6th Editions are combined in the below spreadsheet for easy comparison.
Table Des Matieres - Types - New and Updated Bicycle Models
The new and updated bicycle model pages for the 2nd to 6th Editions are presented together in alphabetical and numerical order and not separated by edition because there are inconsistencies. For example, in some cases the edition number on the biciycle model page does not agree with the edition number on the table in which it is listed. Also, some bicycle models are not listed on any of the tables.
 |
|
 |
 |
 |
C42 |

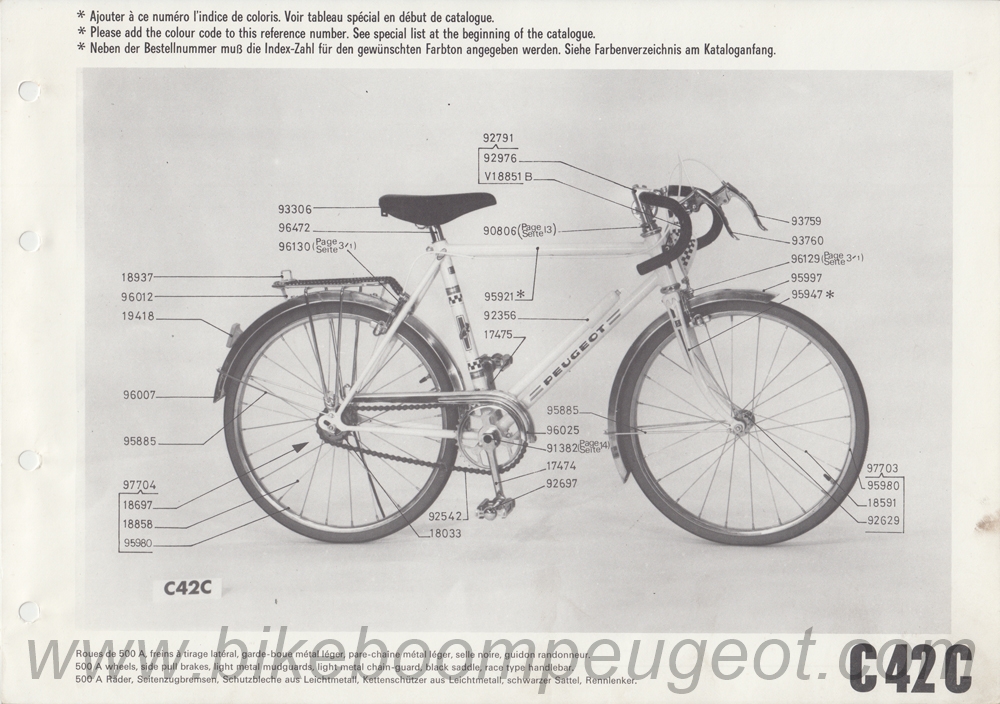

C42C |

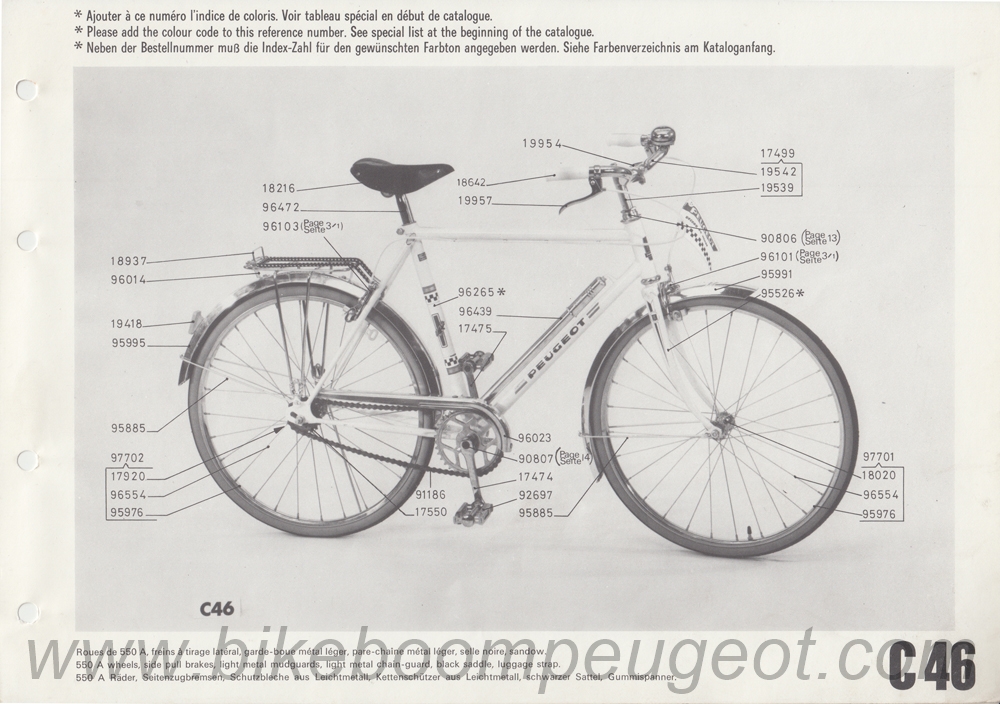

C46 |

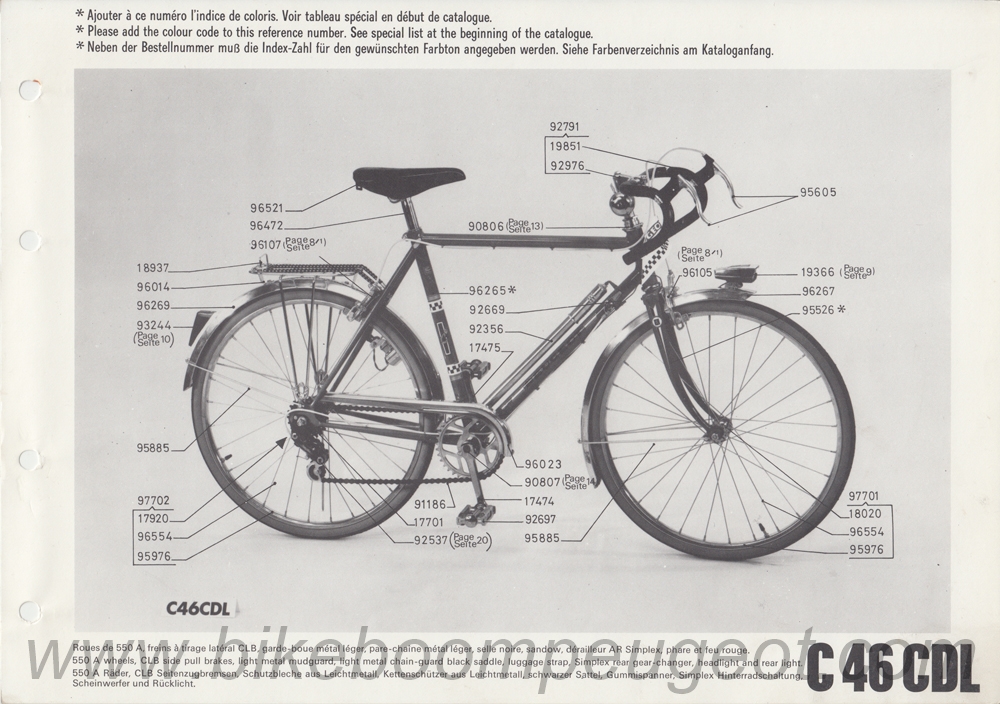

C46CDL |
C46CX |
|
|
|
|
|
|
|
|
|
|

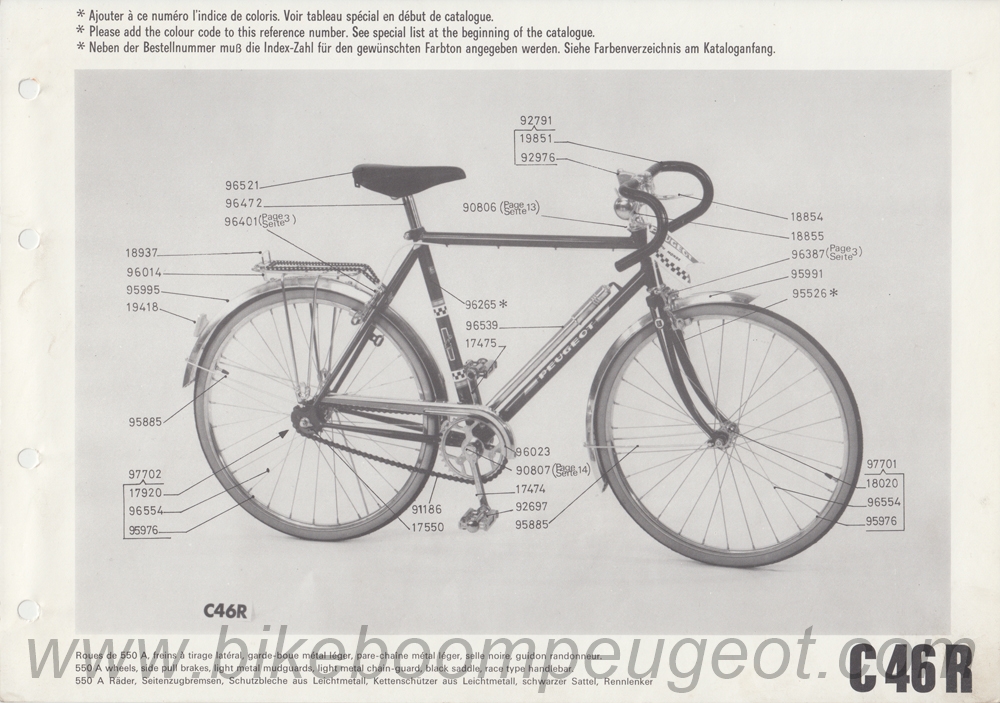

C46R |

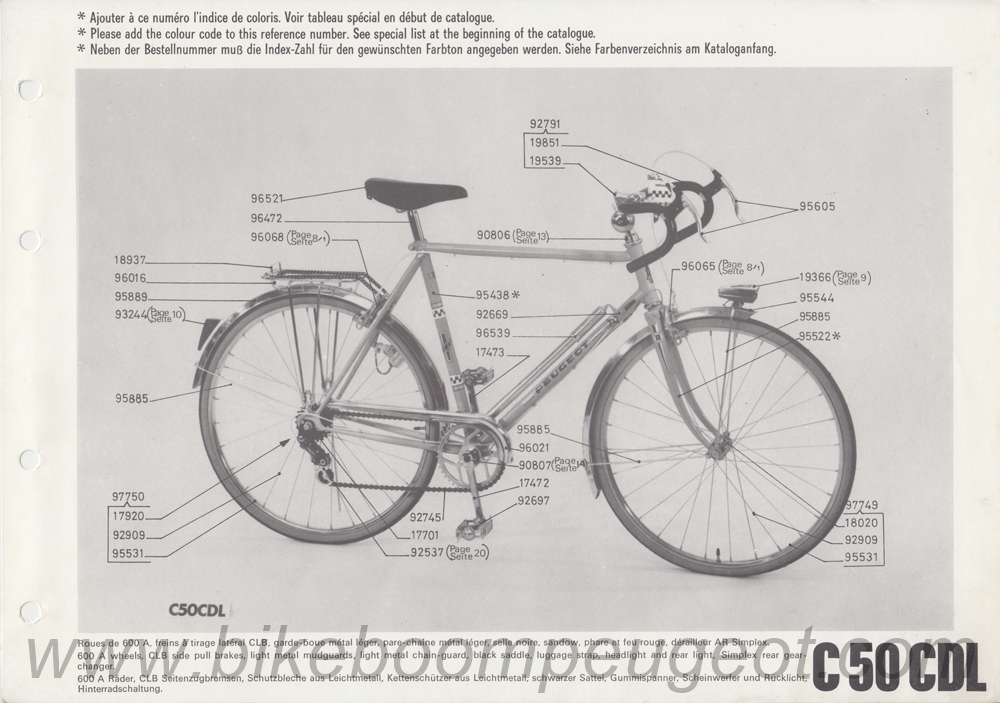

C50CDL |

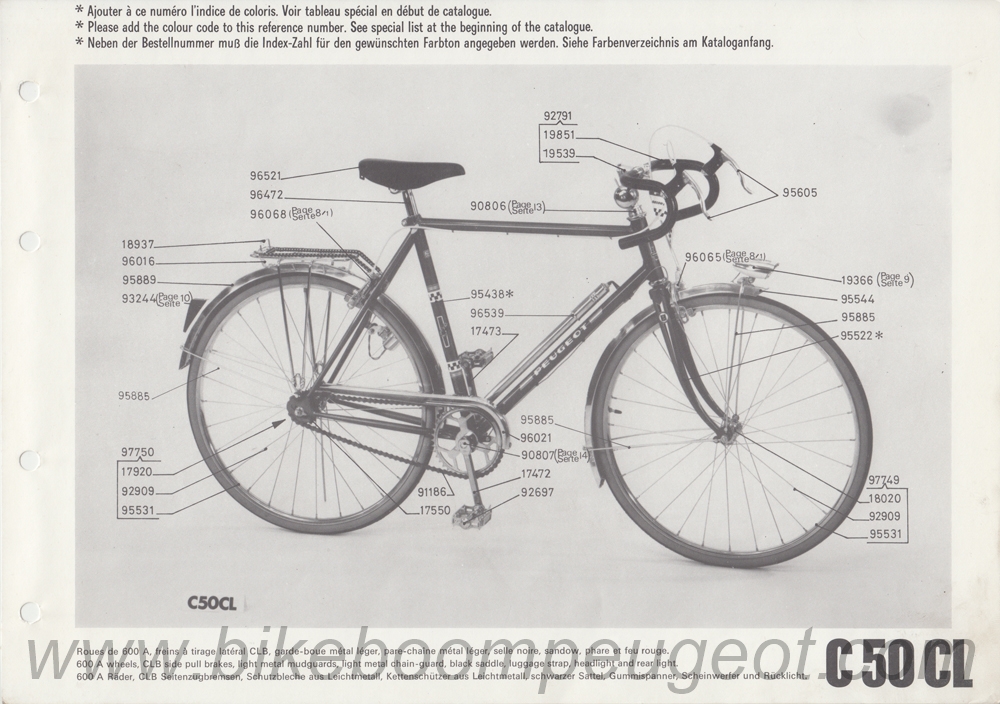

C50CL |

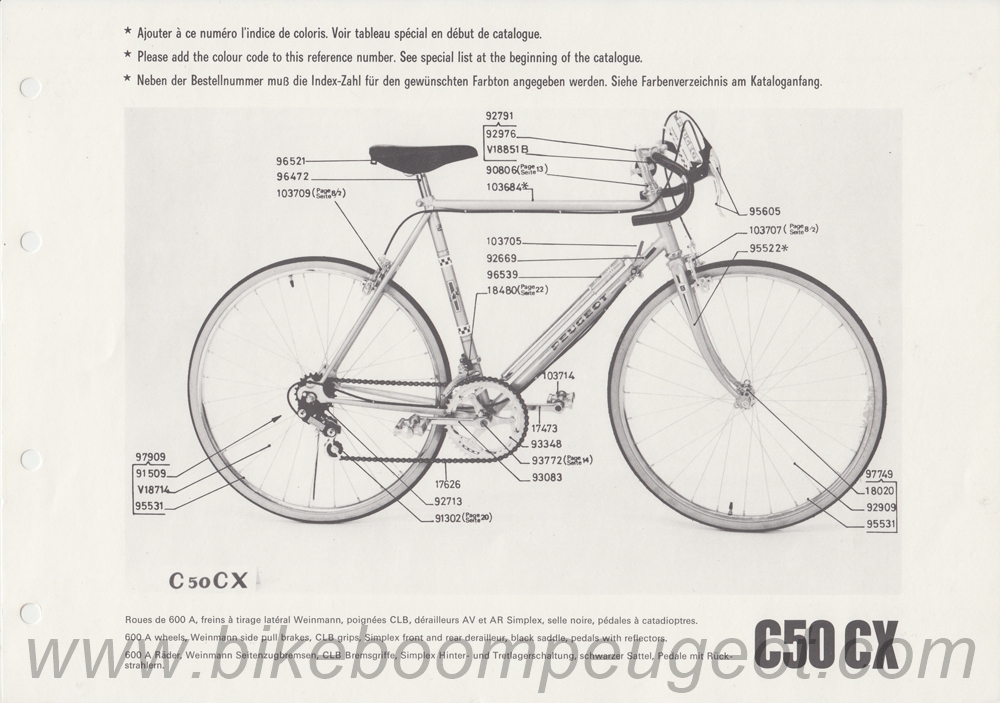

C50CX |

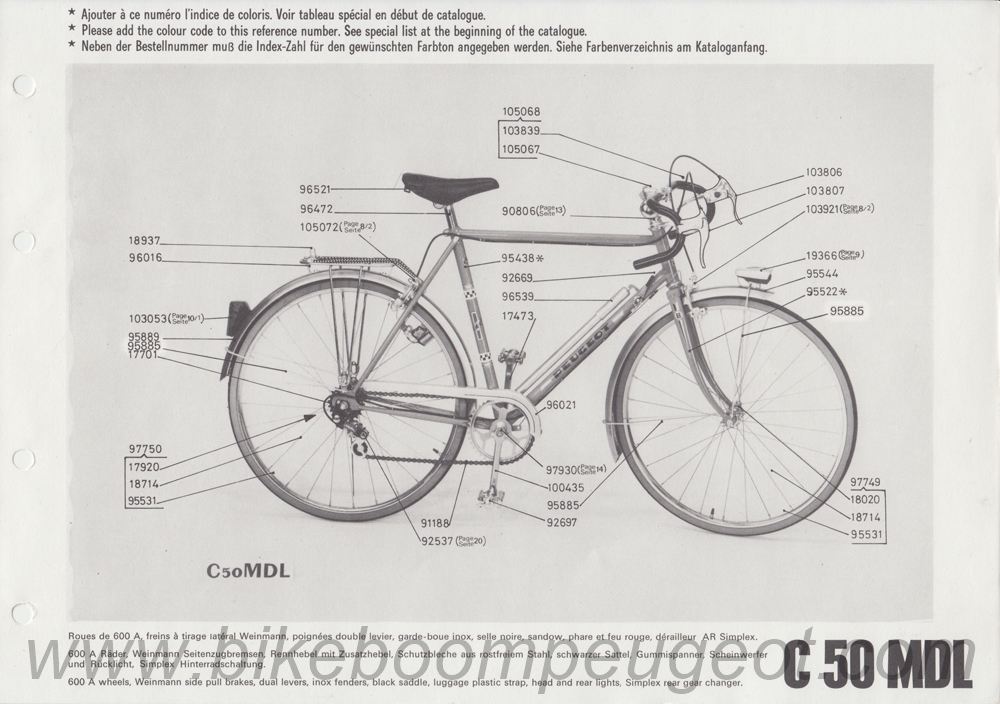

C50MDL |
|
|
|
|
|
 |
|
|
|
|
C50RDL |

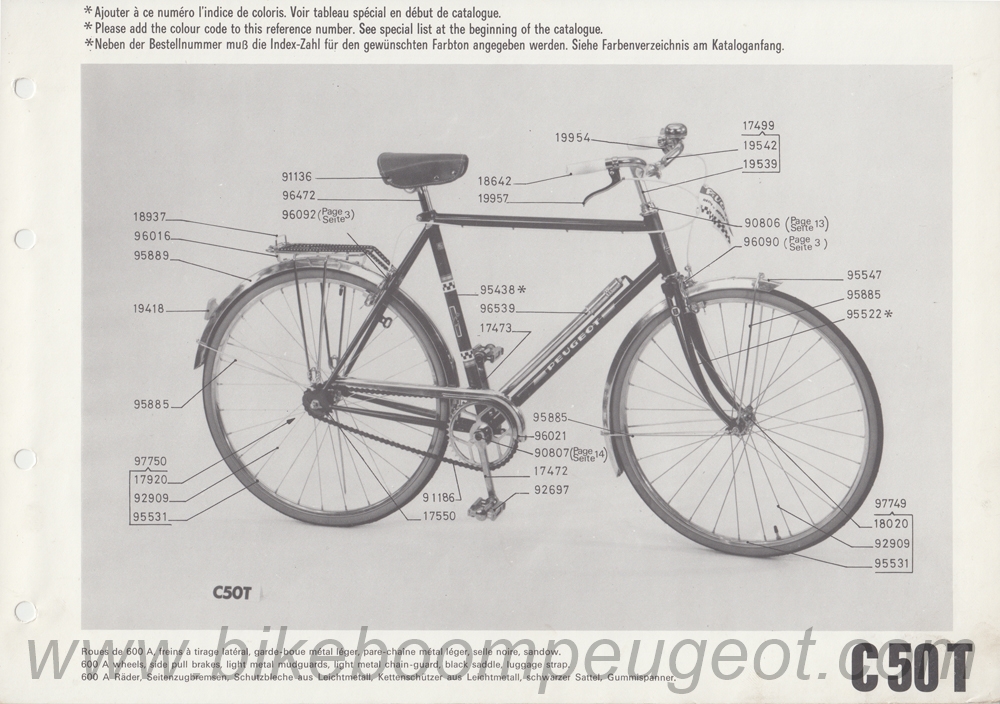

C50T |

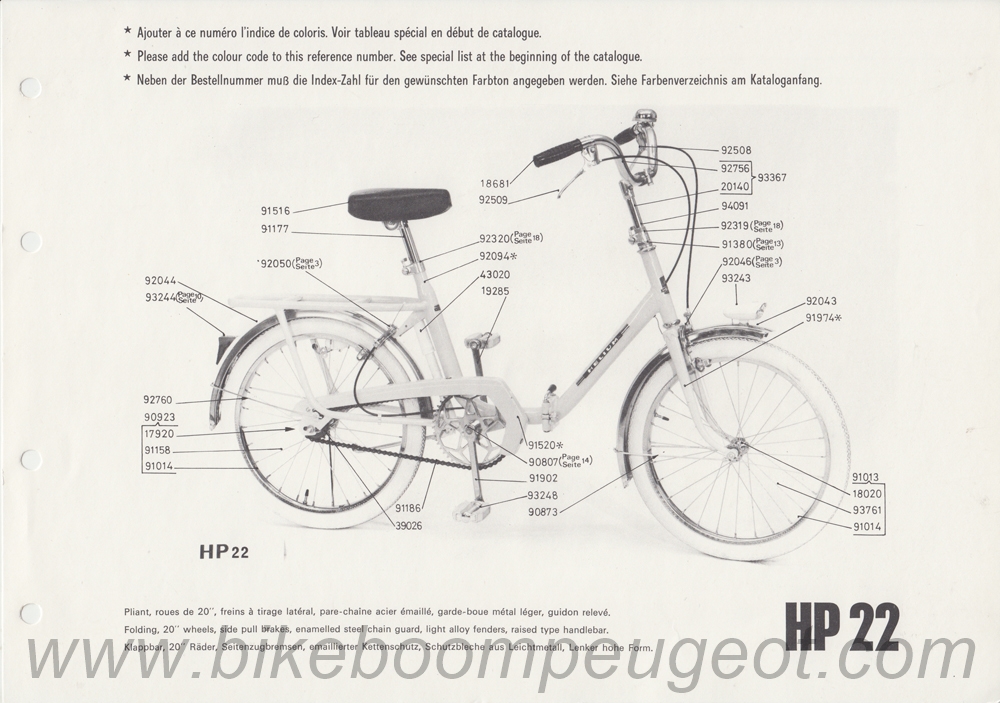

HP22 |

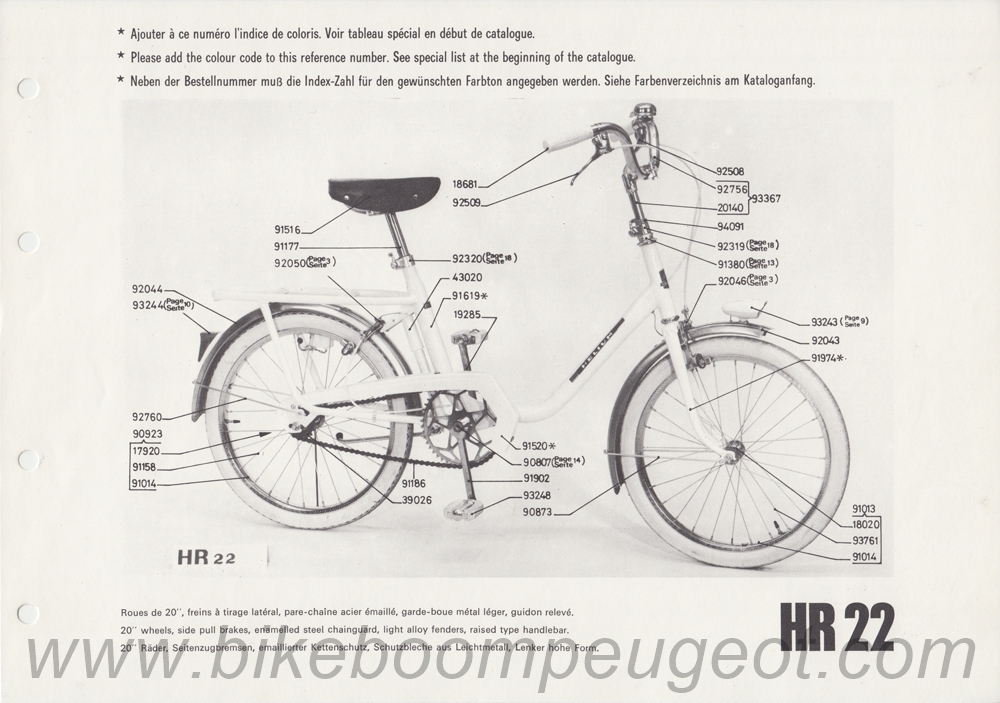

HR22 |
J8L |
| |
|
|
|
|
|
|
|
|
|
J8L10V |
J10L |

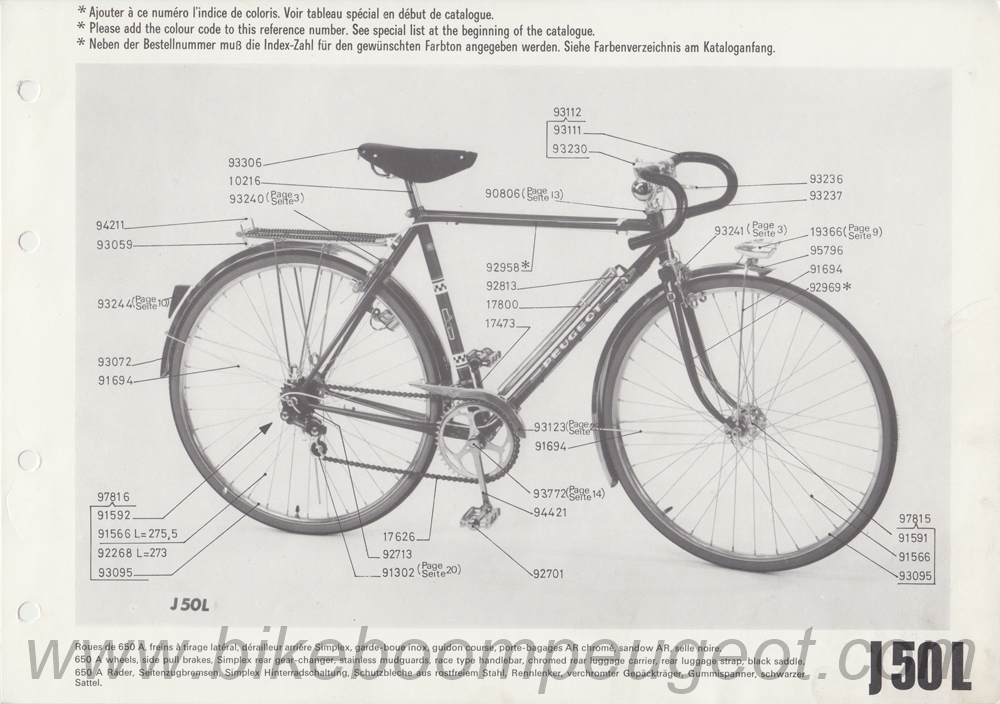

J50L |
M23 |
NC |
|
|
|
|
|
|
|
|
|
|

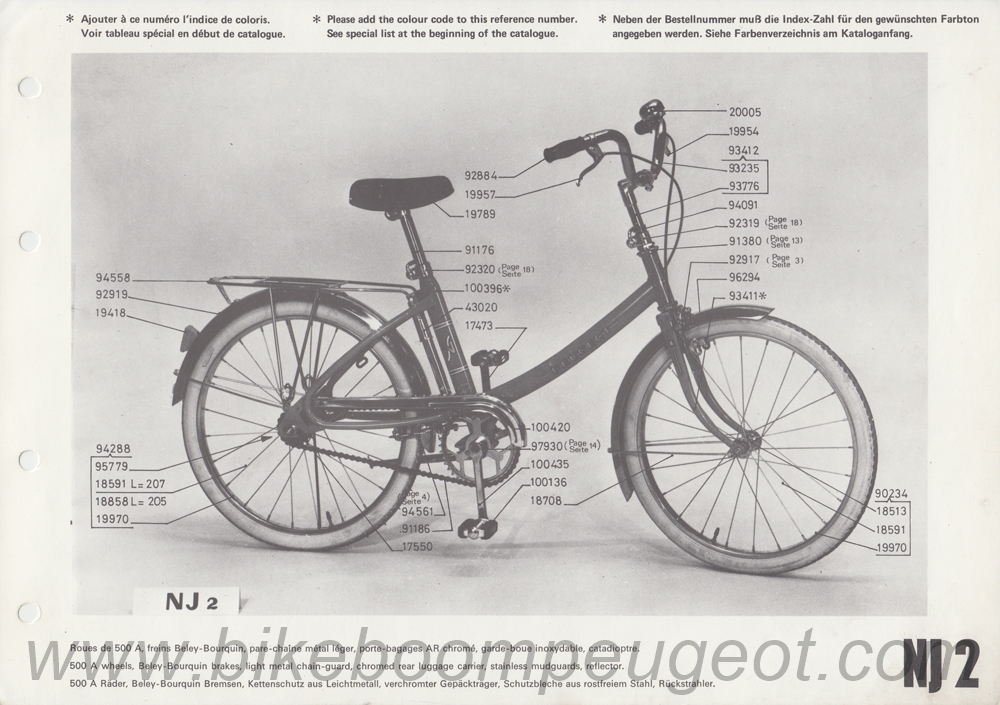

NJ2 |

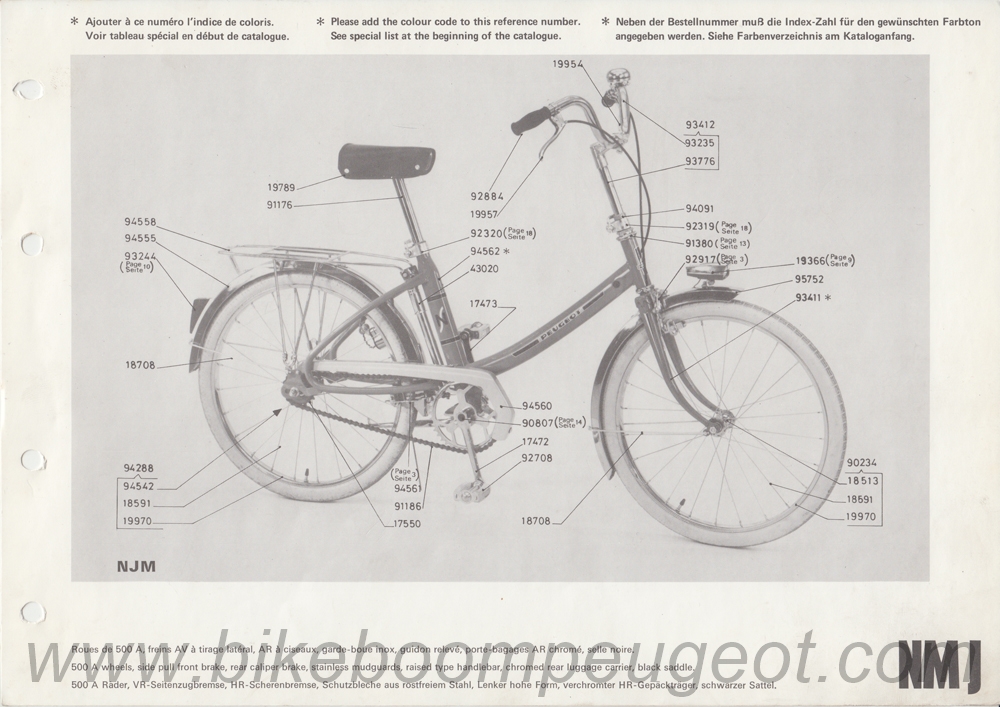

NJM |
NJM2 |
NSB22 |
NSB40 |
|
|
|
|
|
|
|
|
|
 |

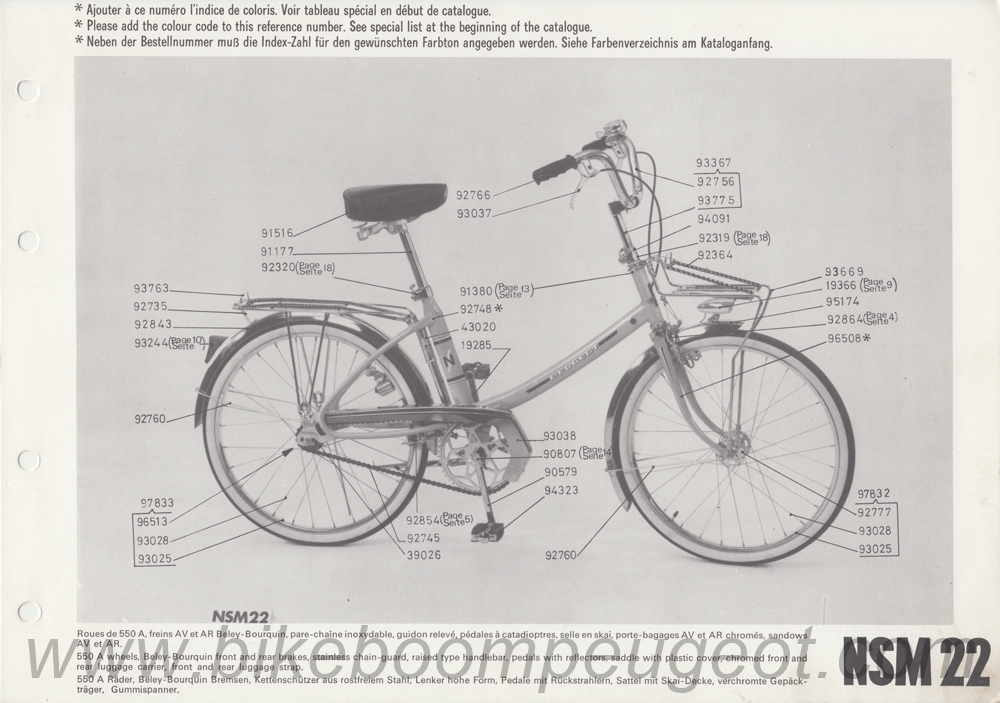

NSM22 |

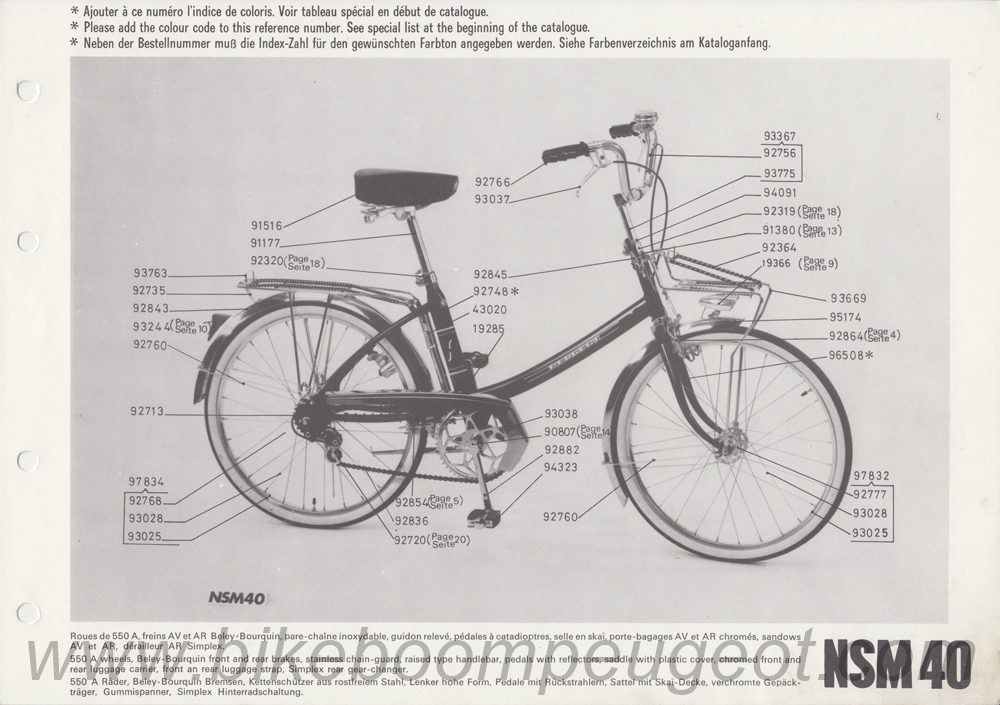

NSM40 |

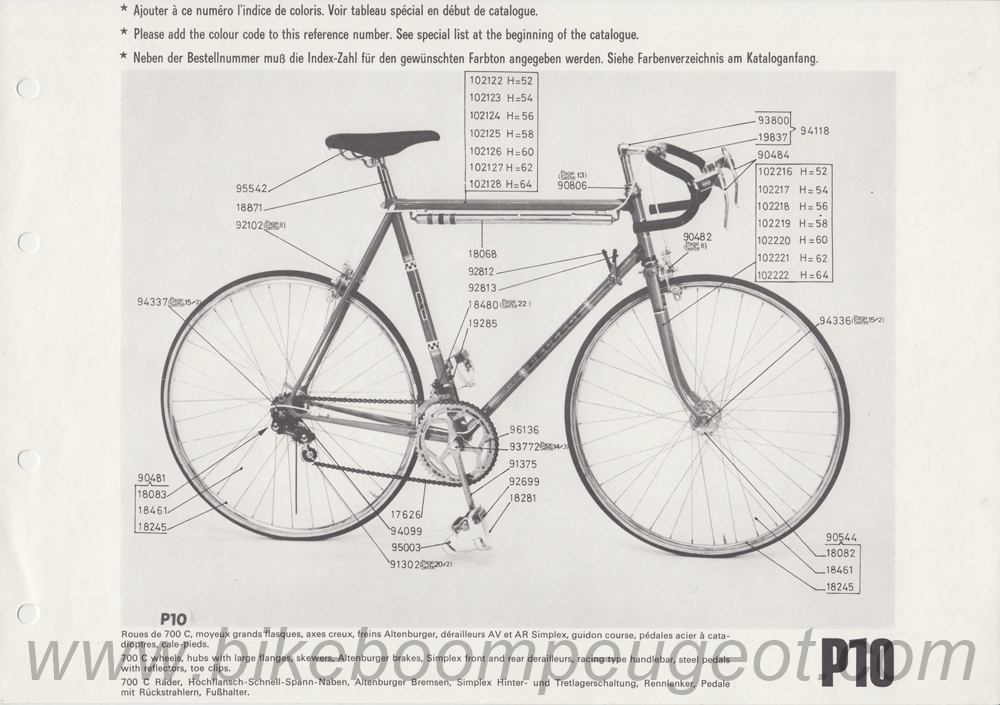

P10 |
|

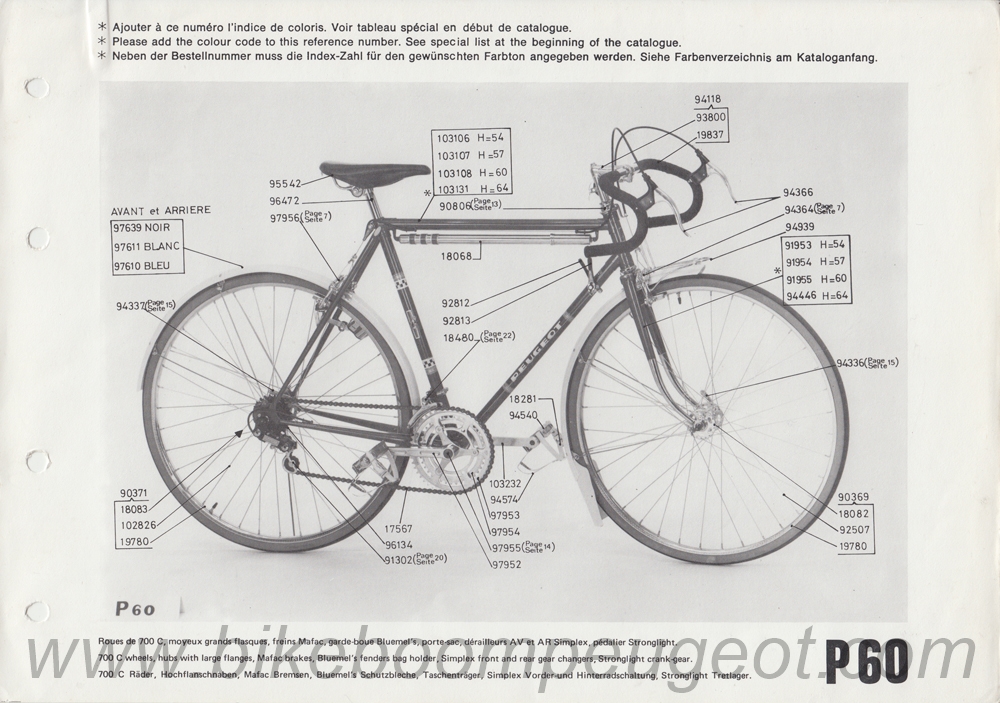

P60 |
|
|
|
|
|
|
|
|
|
|

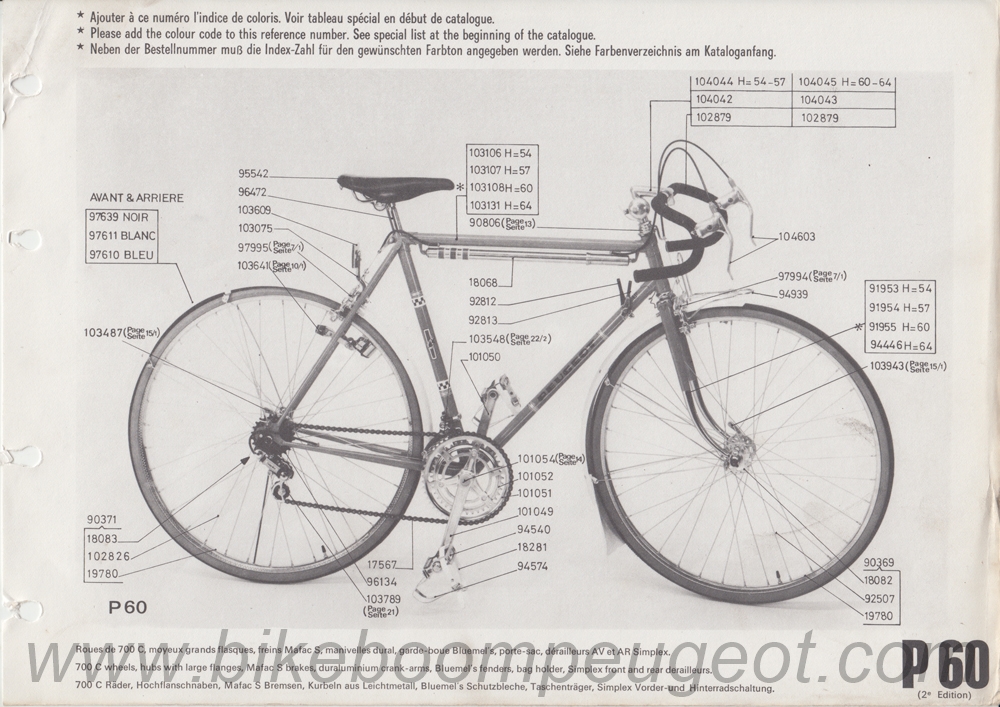

P60 (2nd Ed.) |

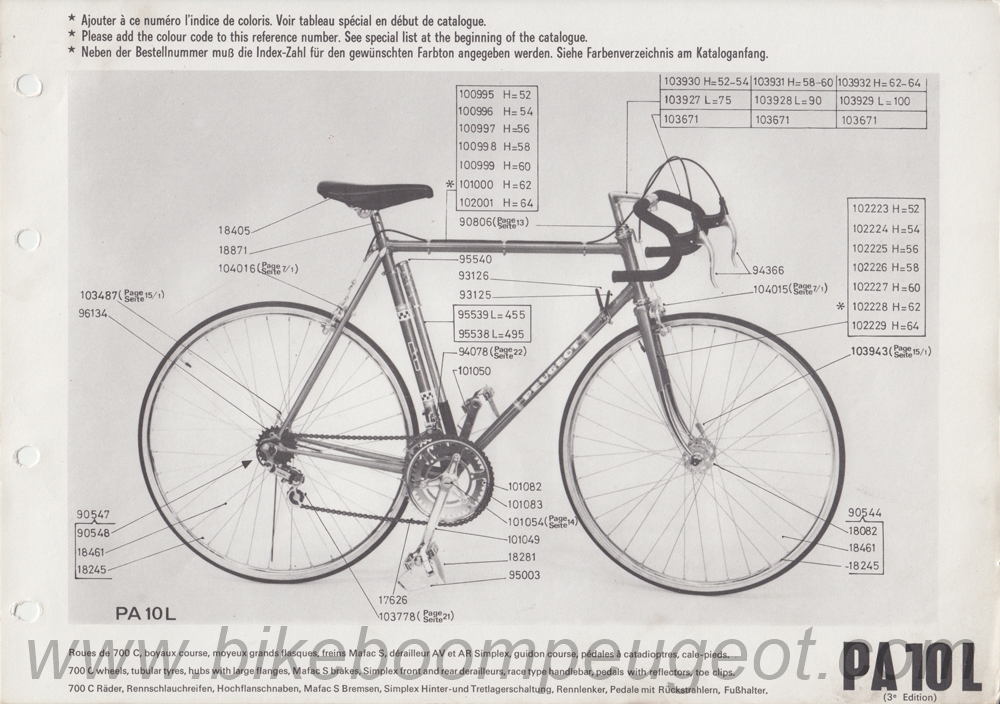

PA10L (3rd Ed.) |
PA55 |

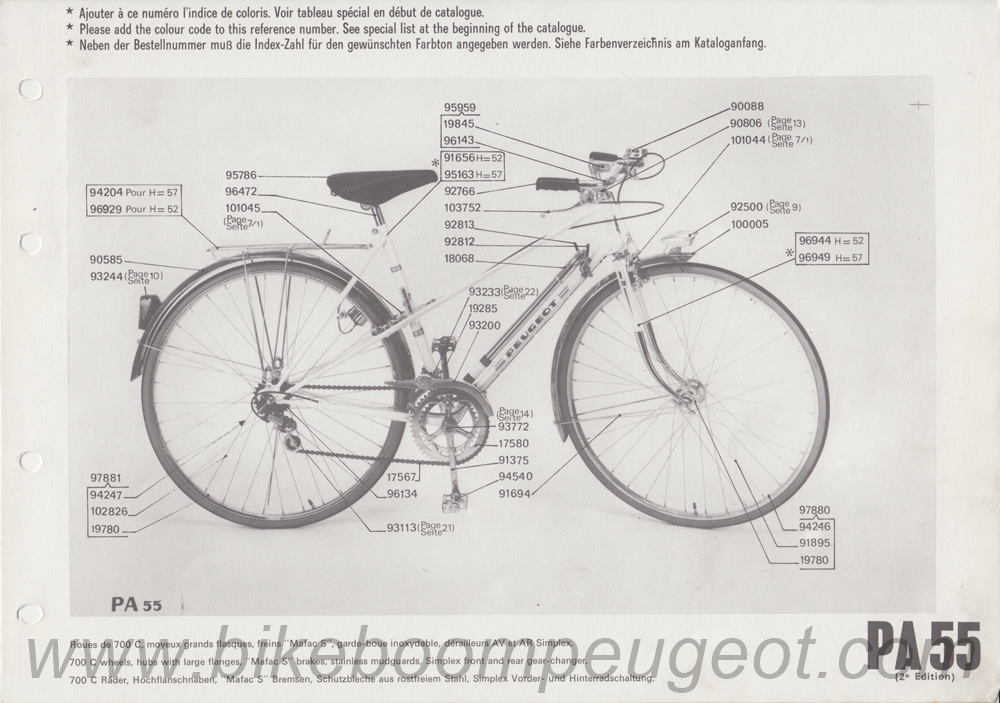

PA55 (2nd Ed.) |

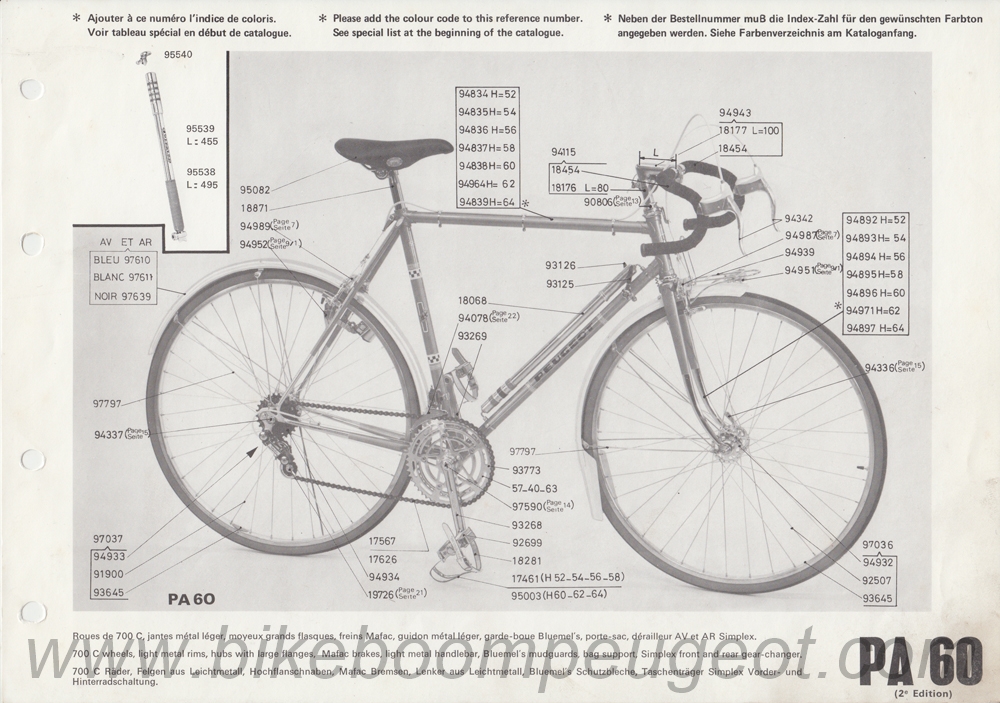

PA60 (2nd Ed.) |
|
|
|
|
|
|
|
|
|
|
PA65 (2nd Ed.) |

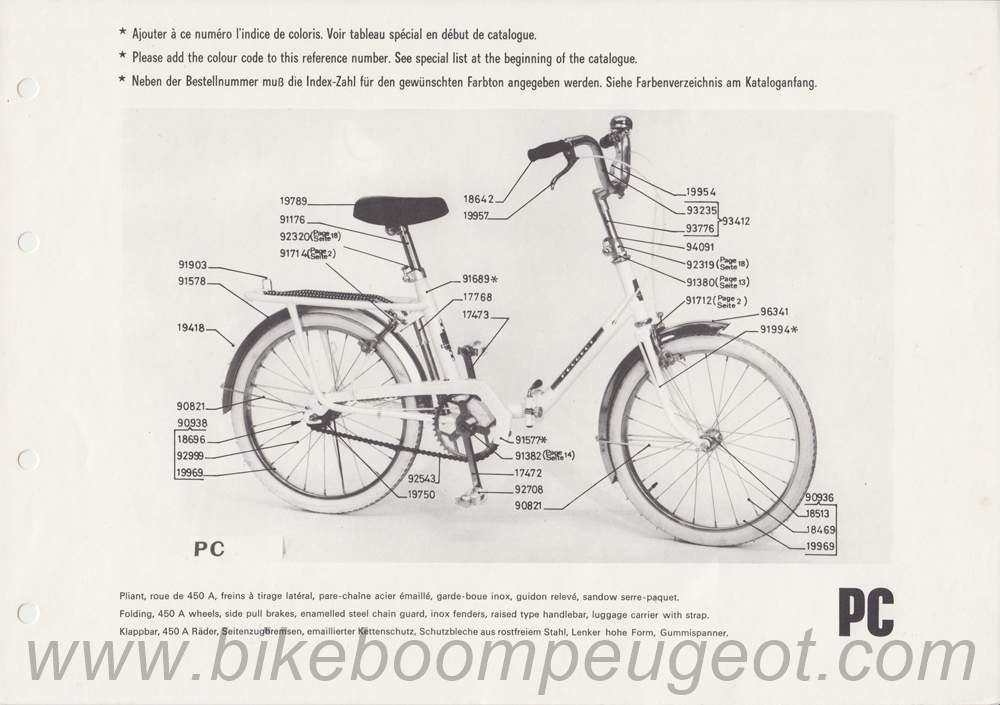

PC |

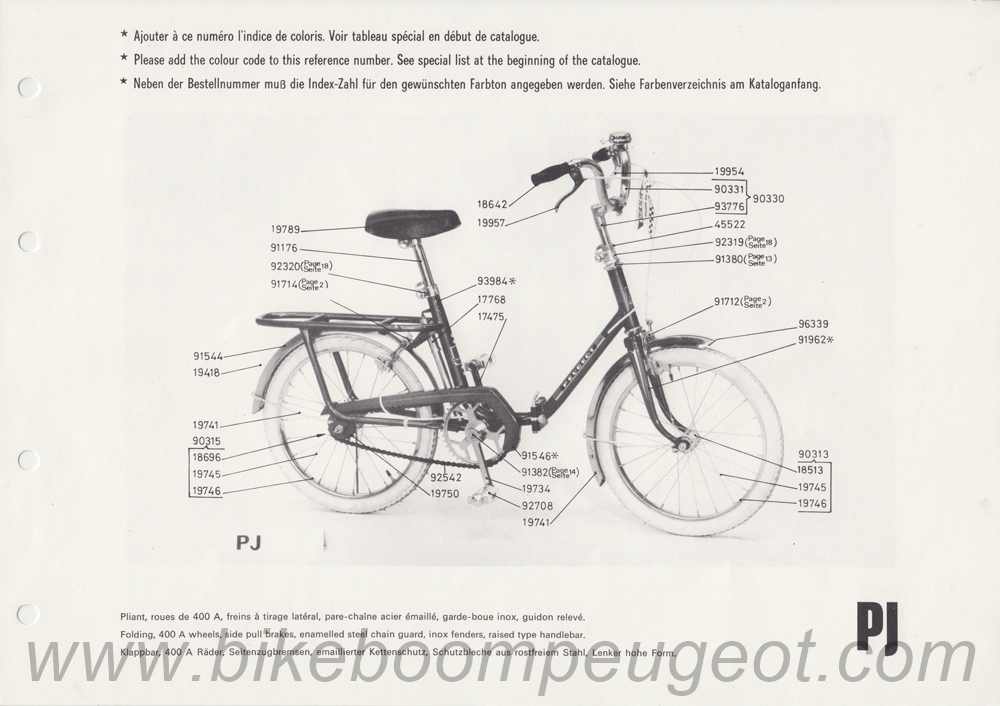

PJ |

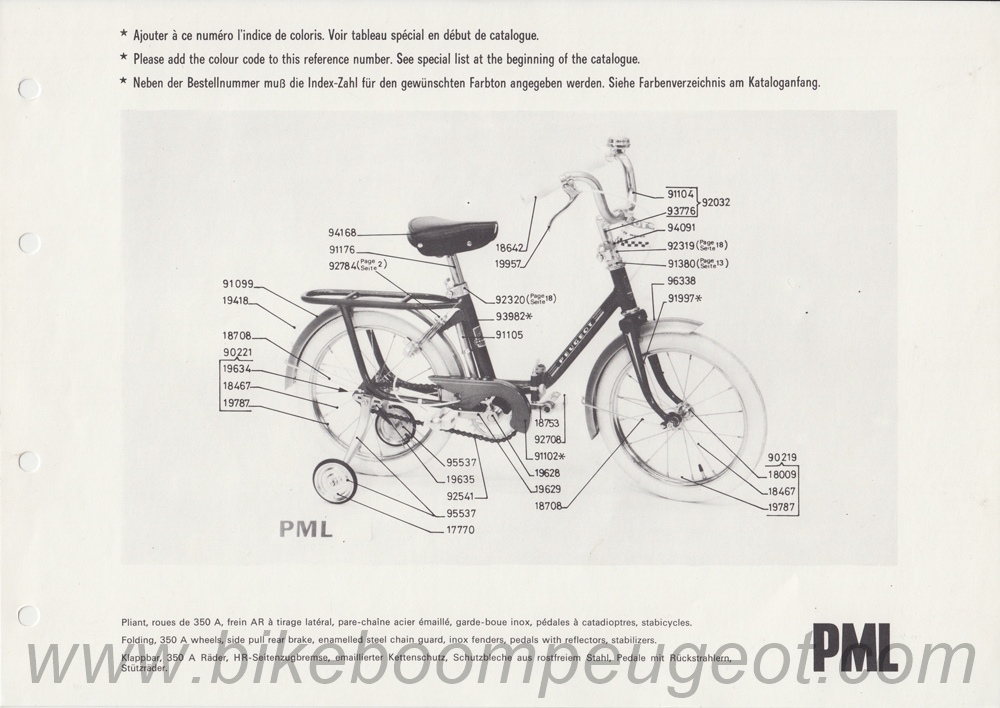

PML |

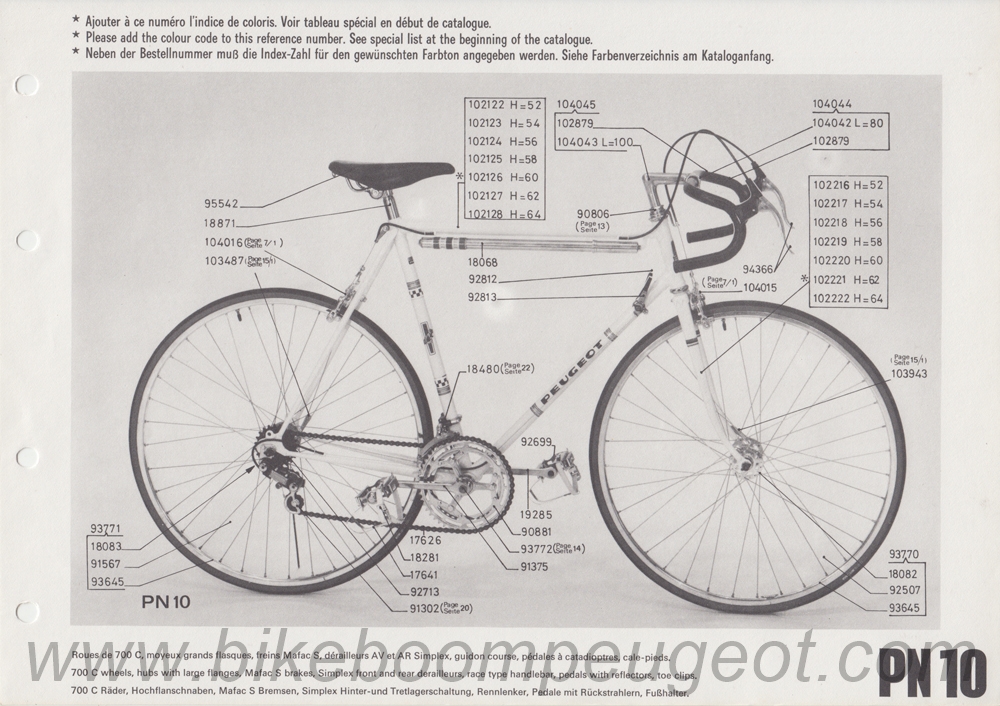

PN10 |
|
|
|
|
|
|
|
|
|
|

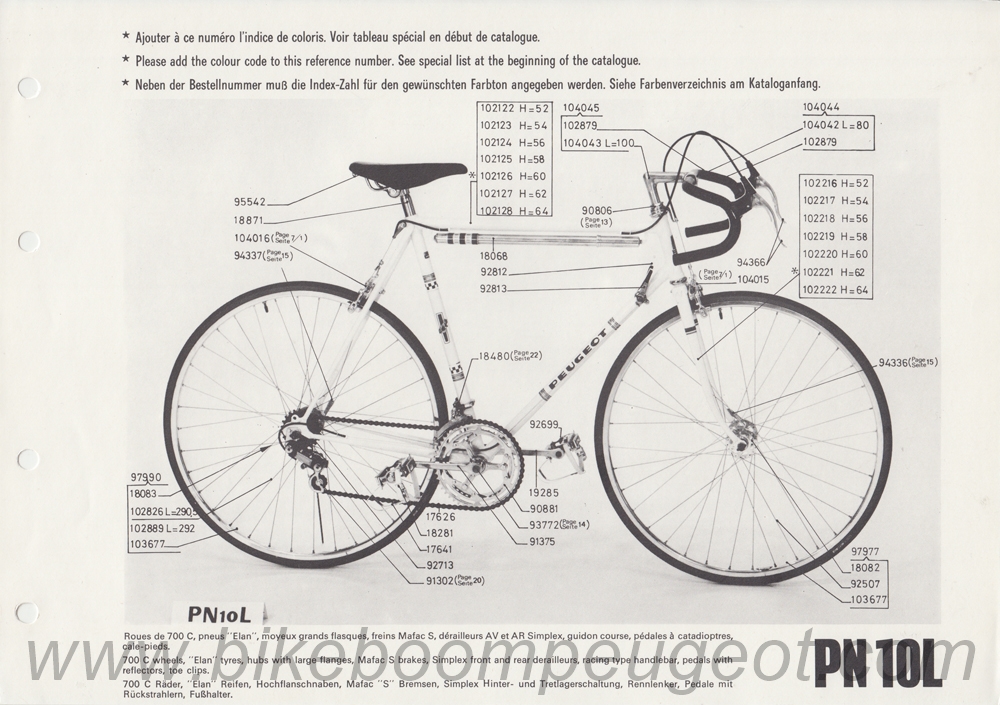

PN10L |
PNC |

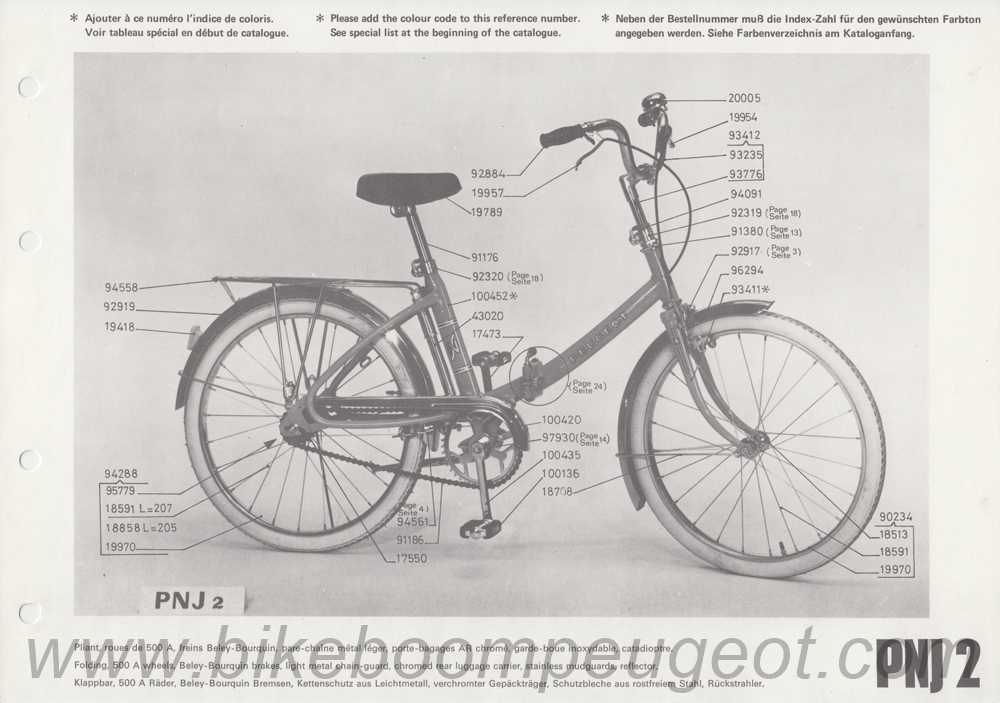

PNJ2 |

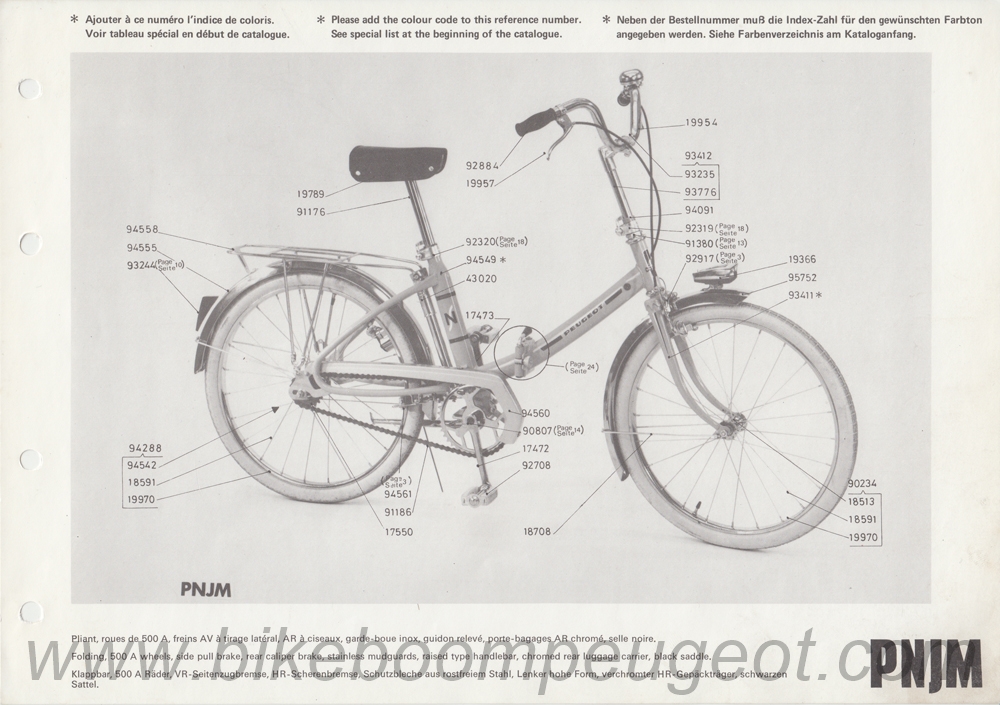

PNJM |

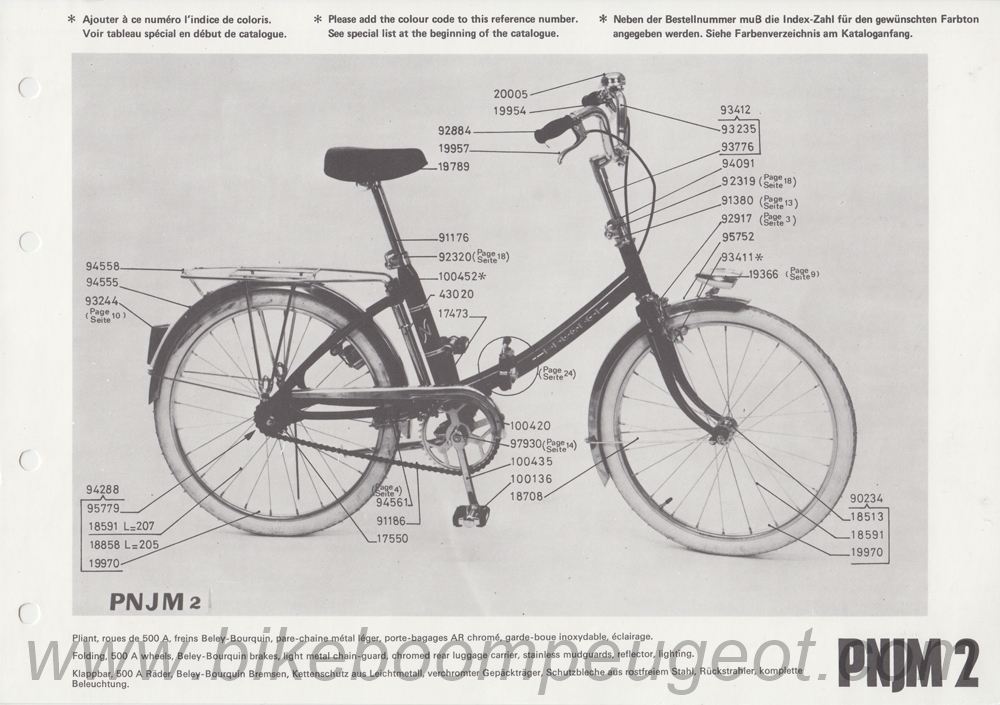

PNJM2 |
|
|
|
|
|
|
|
|
|
|

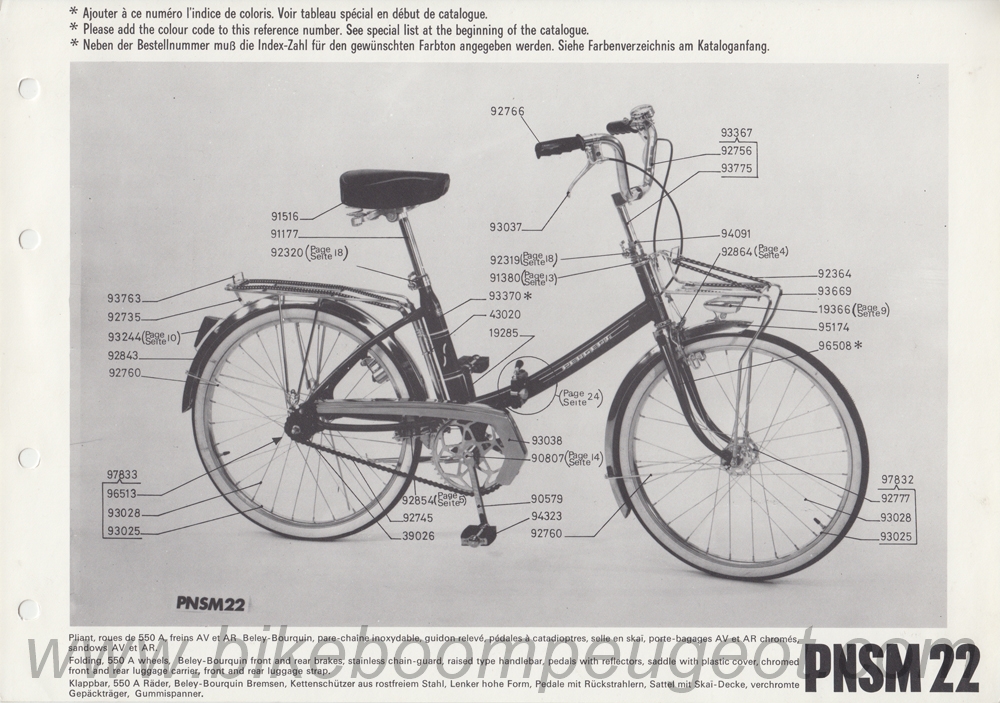

PNSM22 |

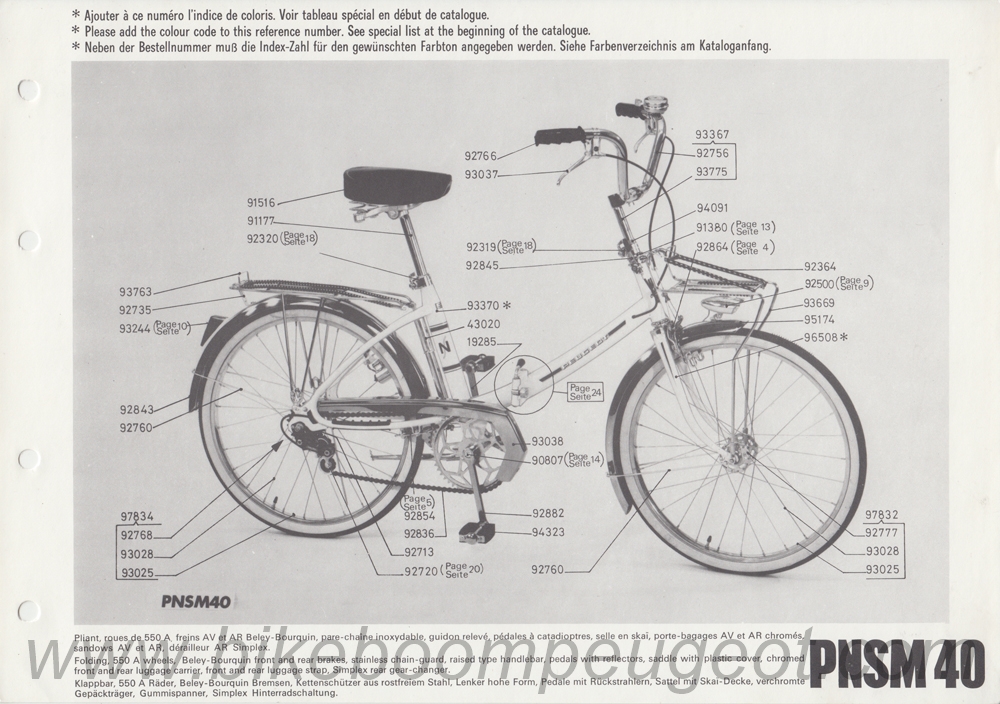

PNSM40 |

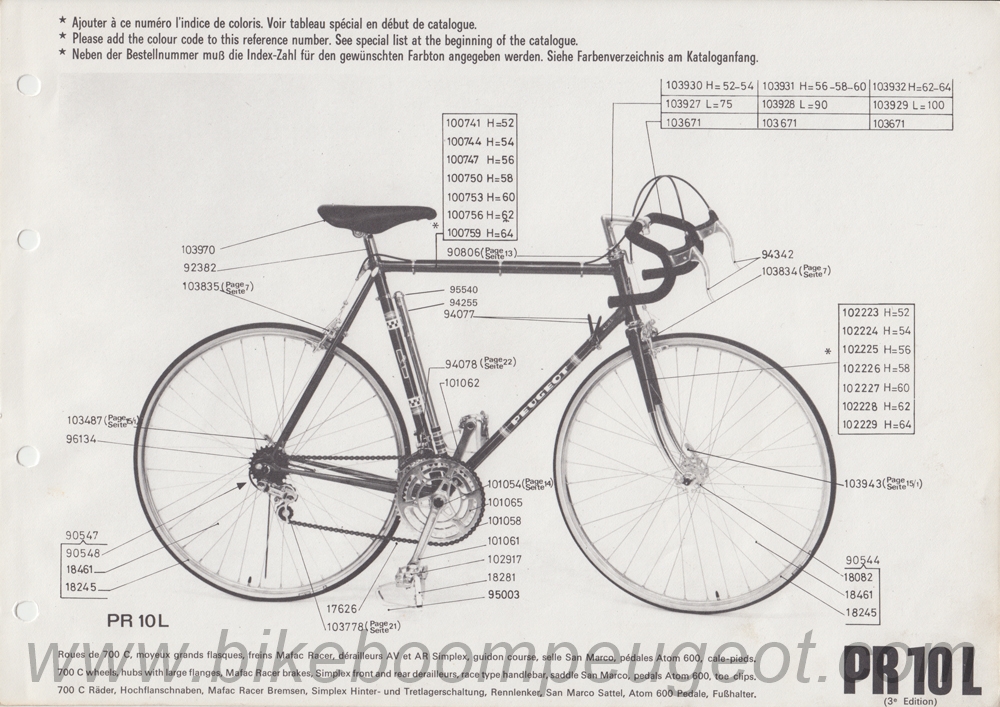

PR10L (3rd Ed.) |

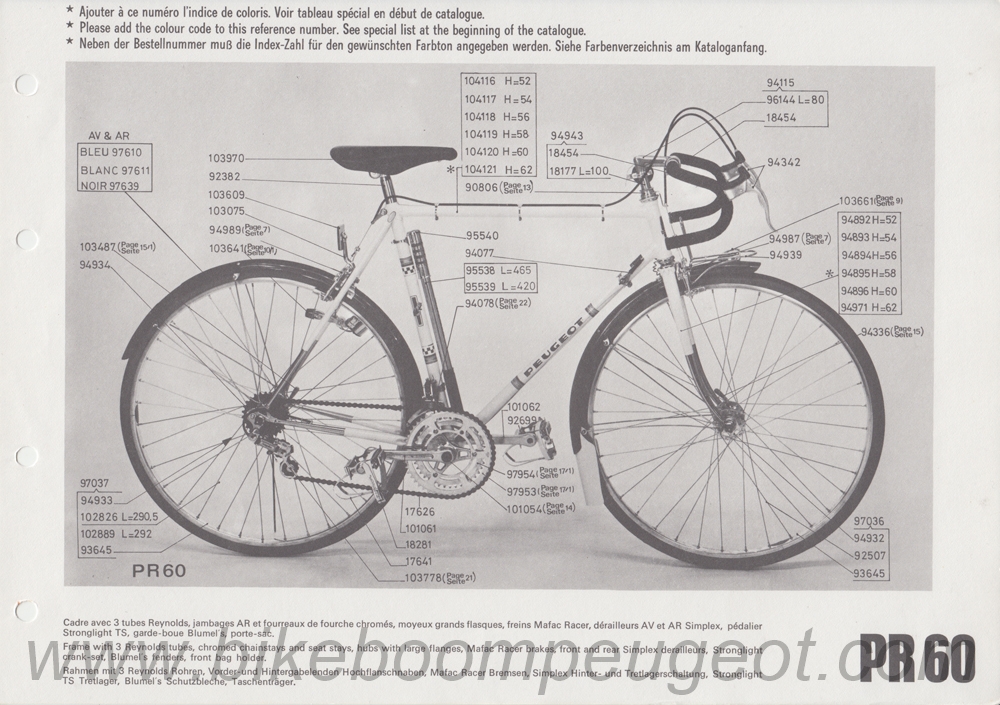

PR60 |

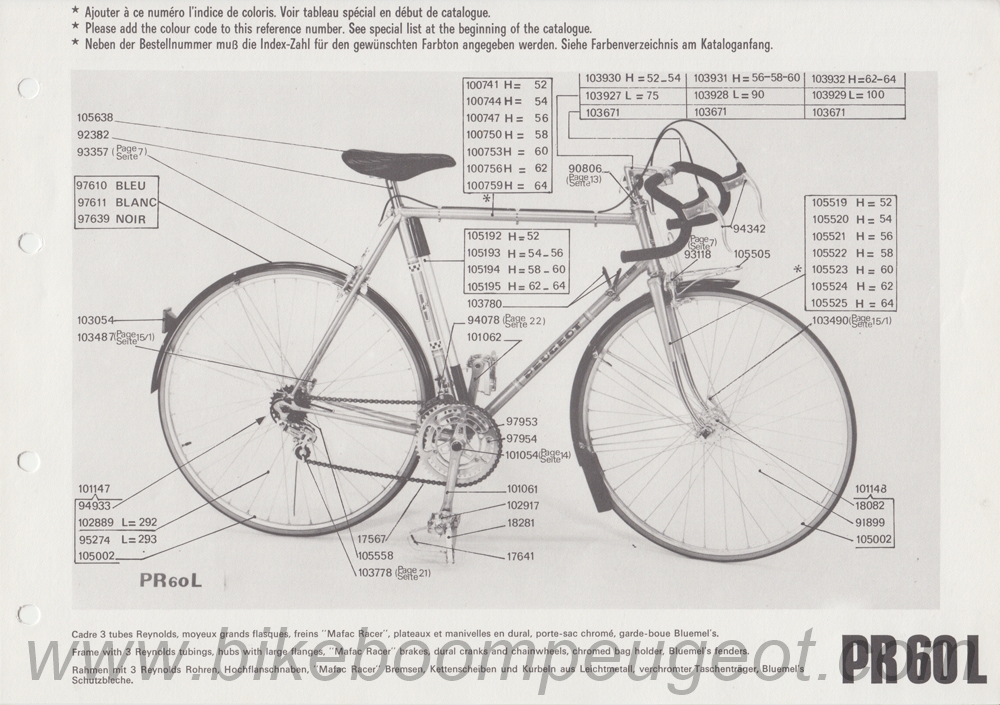

PR60L |
|
|
|
|
|
|
|
|
|
|

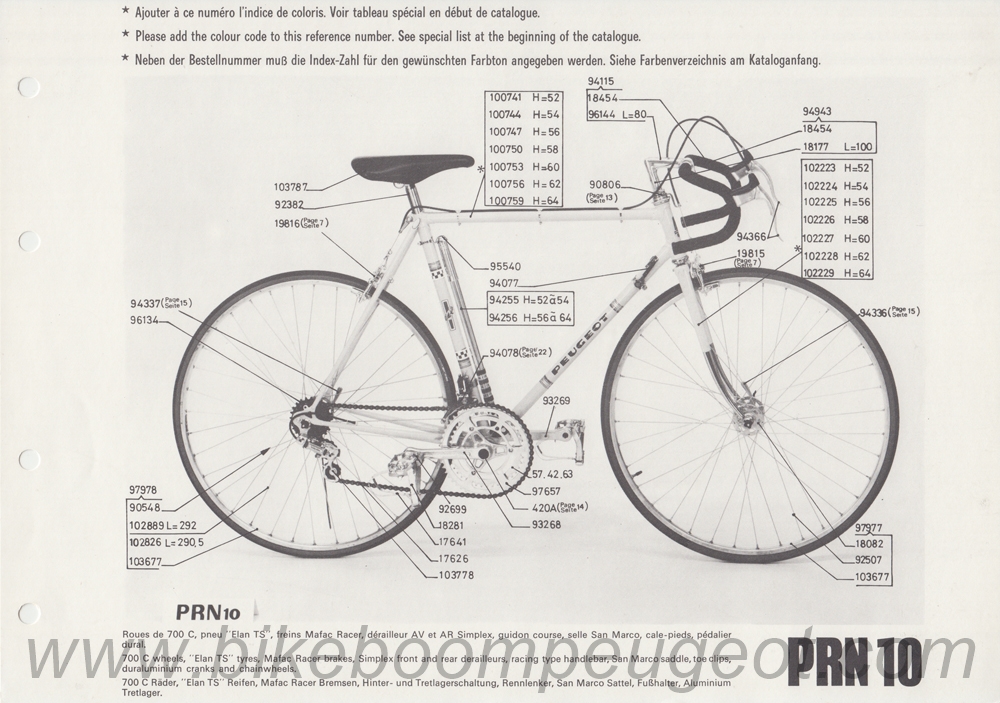

PRN10 |

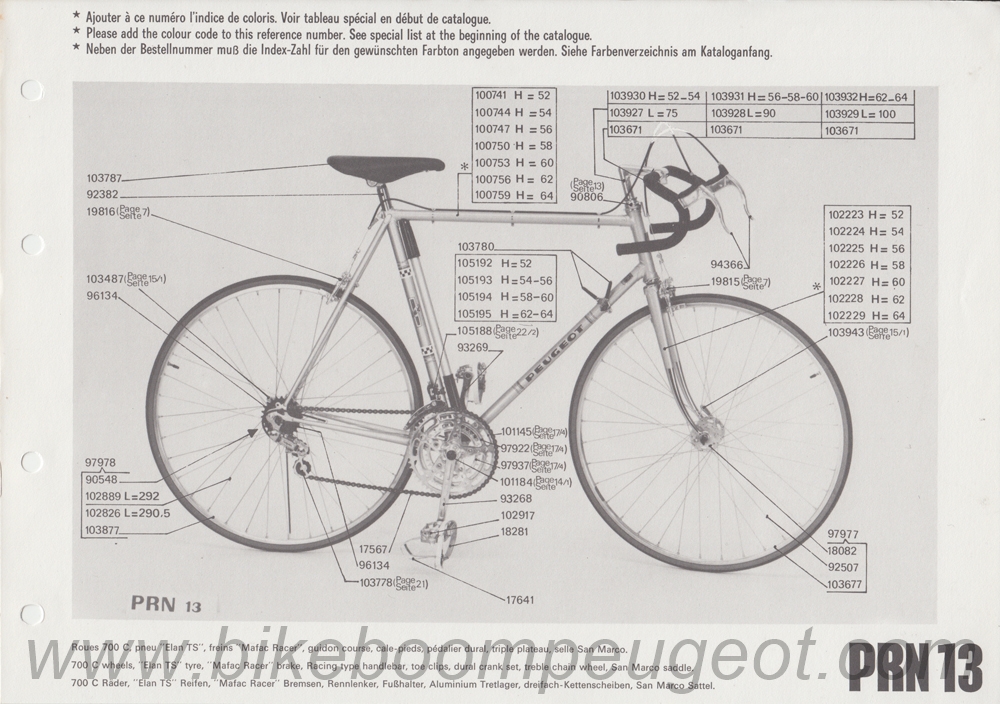

PRN13 |

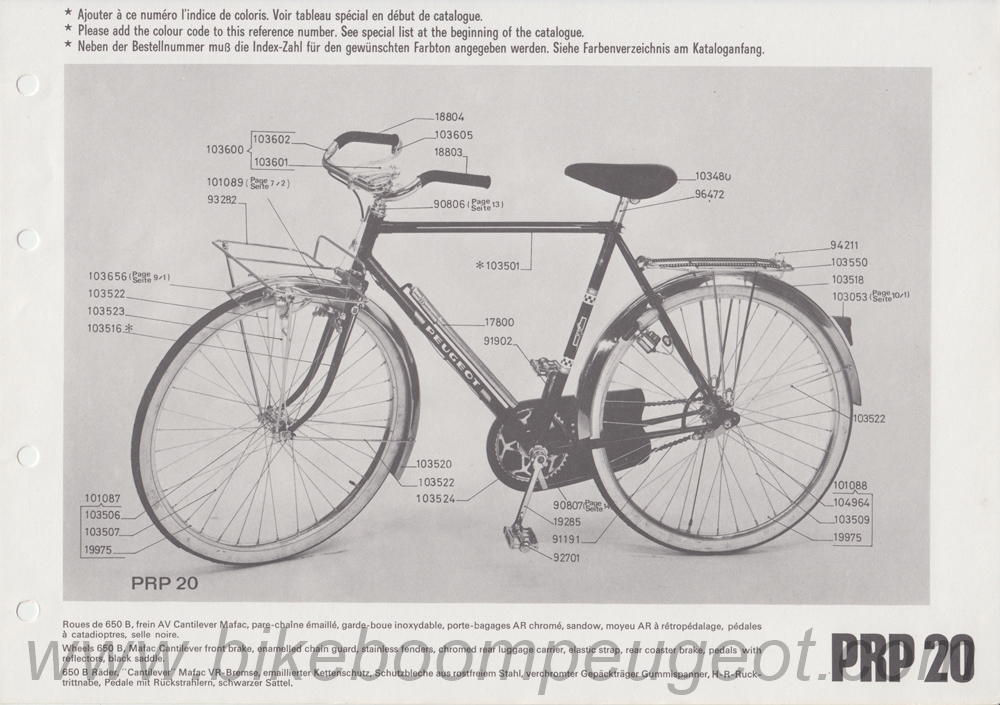

PRP20 |

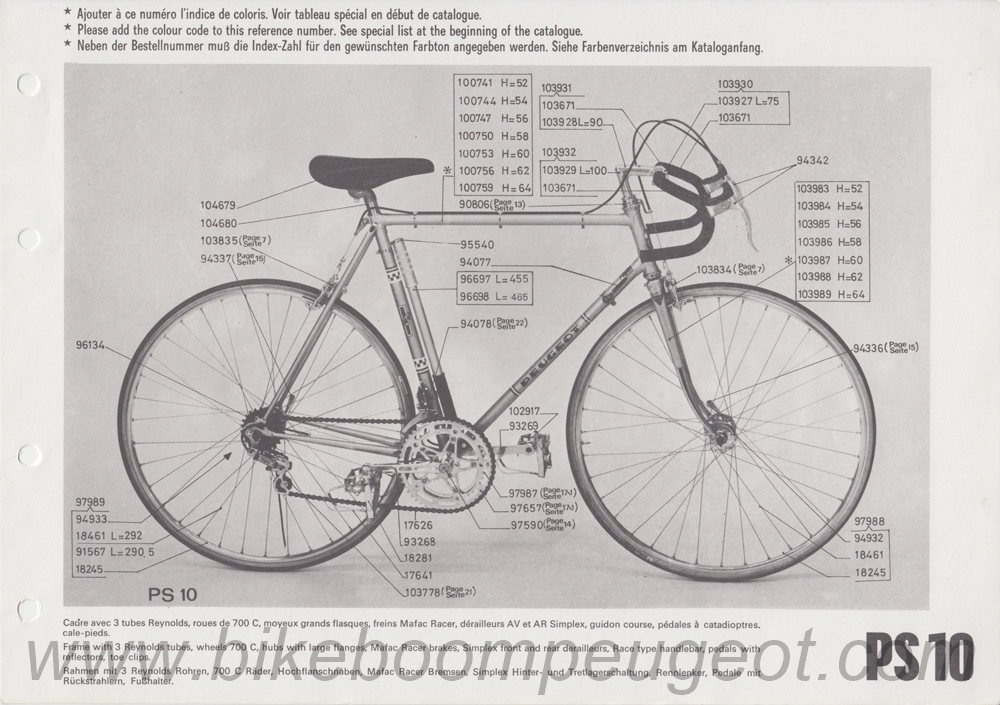

PS10 |

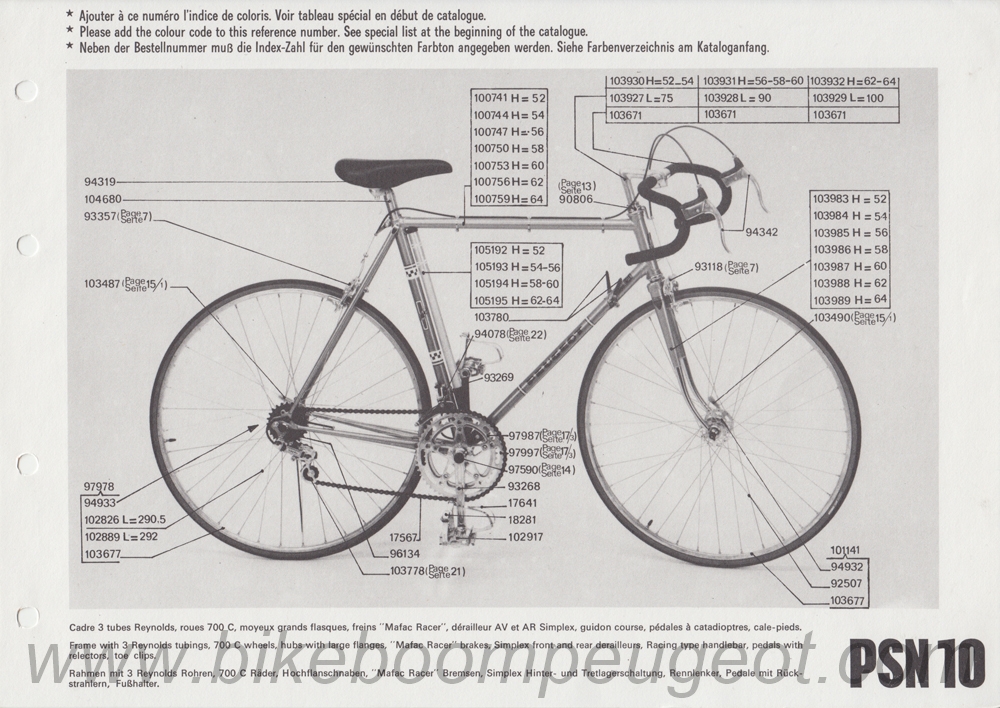

PSN10 |
|
|
|
|
|
|
|
|
|
|

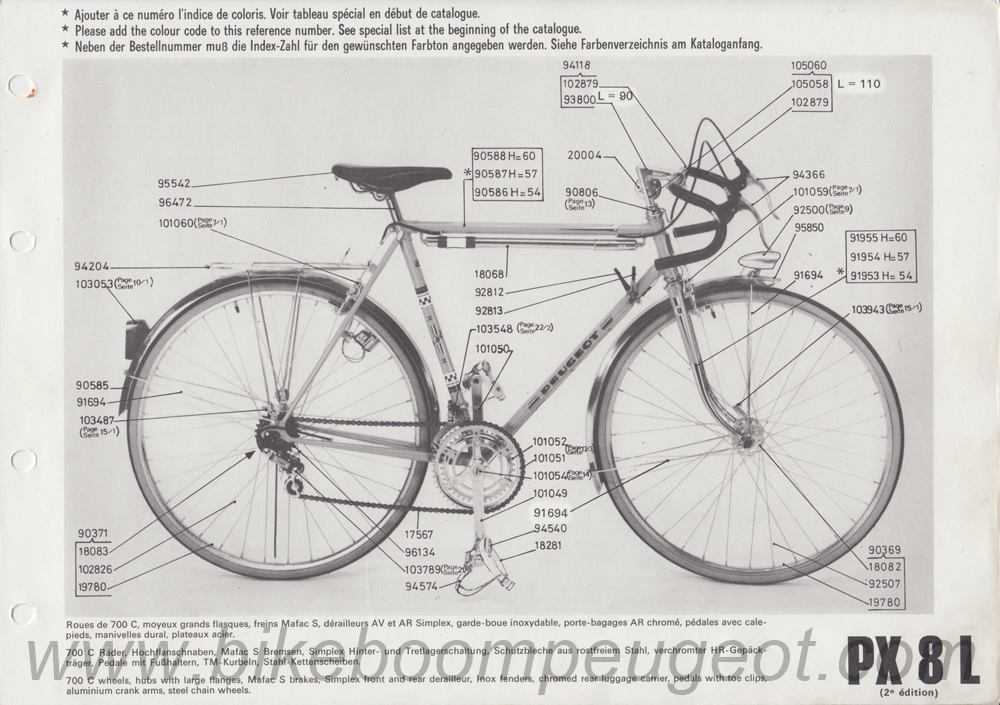

PX8L (2nd Ed.) |

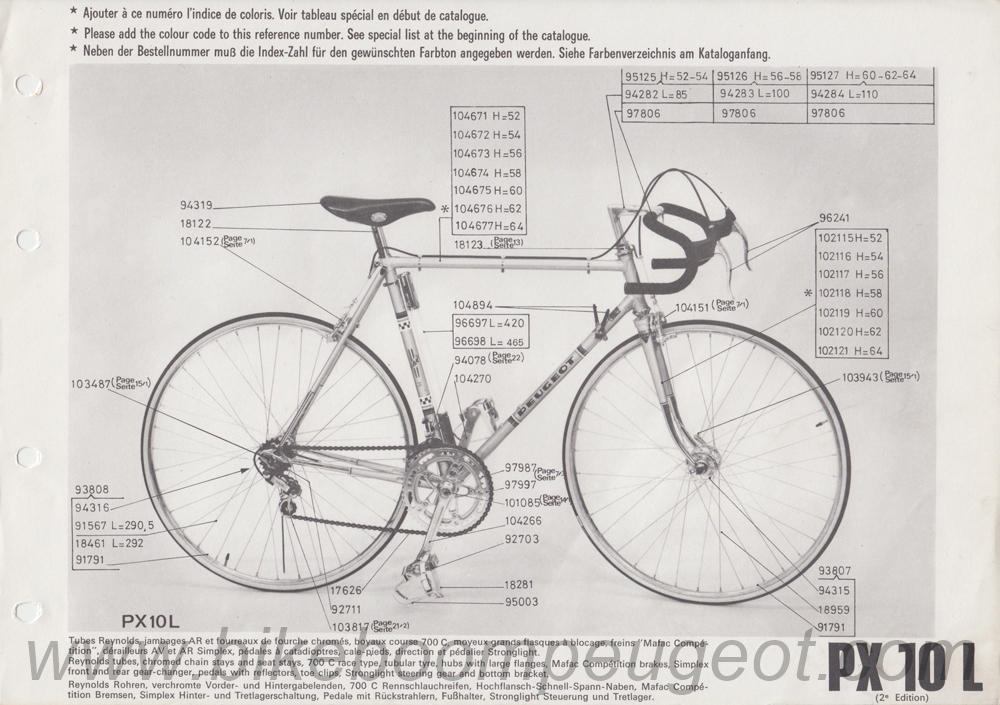

PX10L (2nd Ed.) |

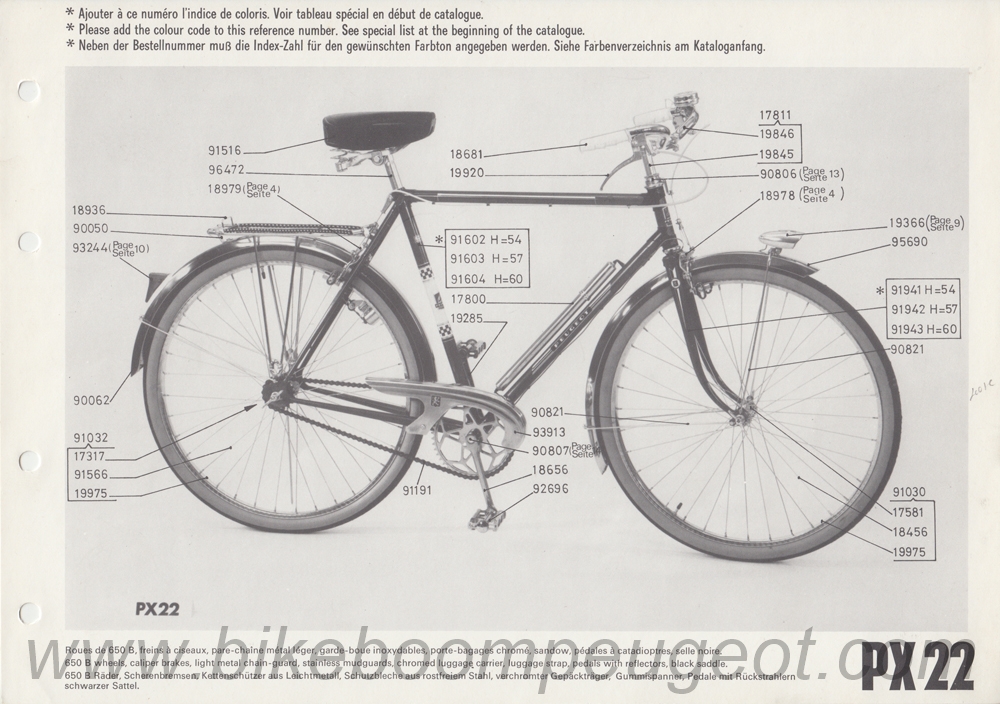

PX22 |
|

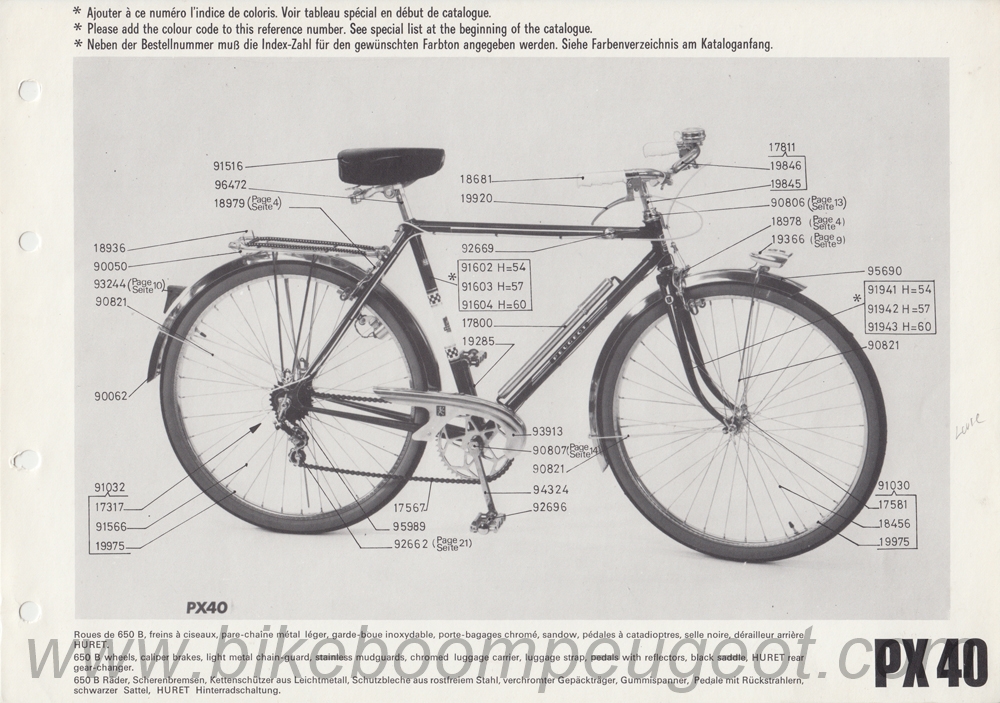

PX40 |
|
|
|
|
|
|
 |
|
|
|

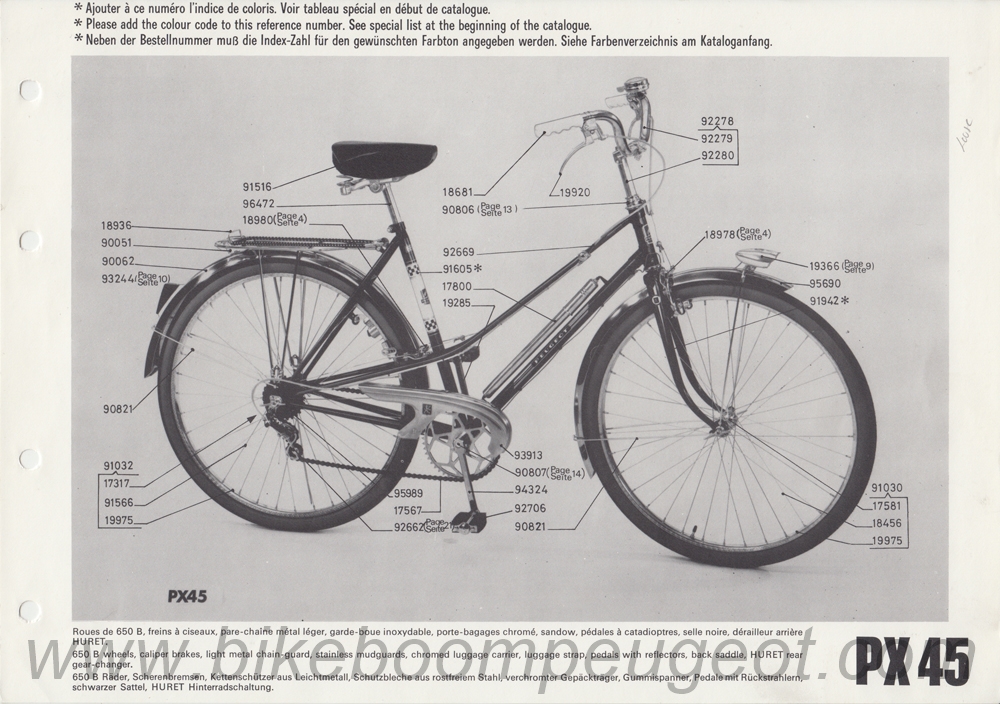

PX45 |

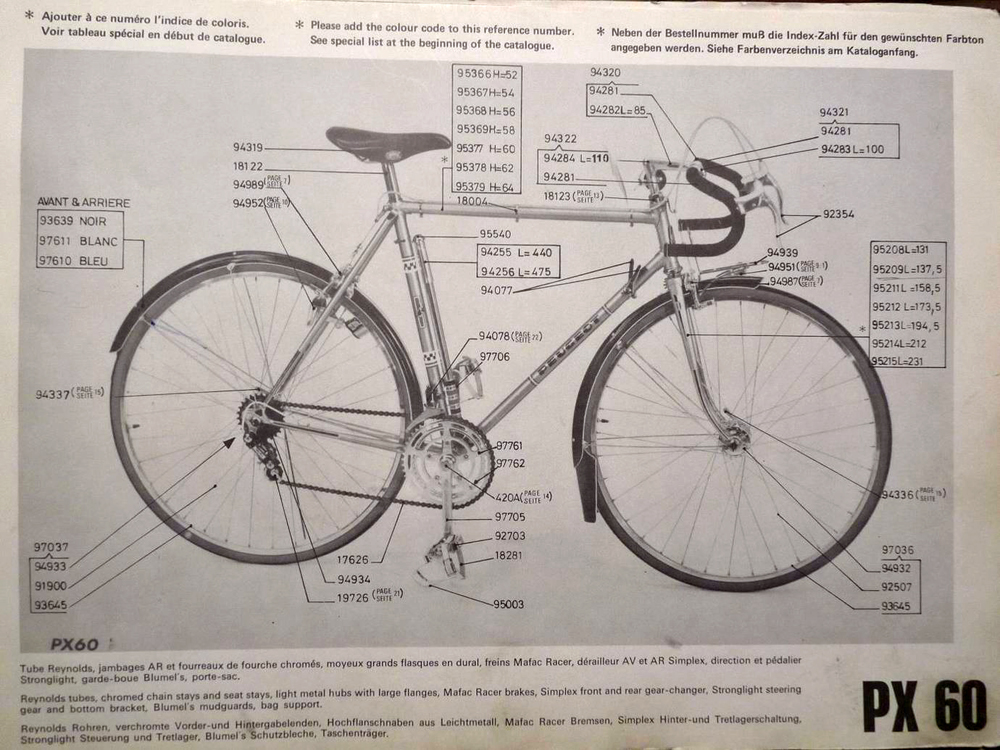

PX60 |

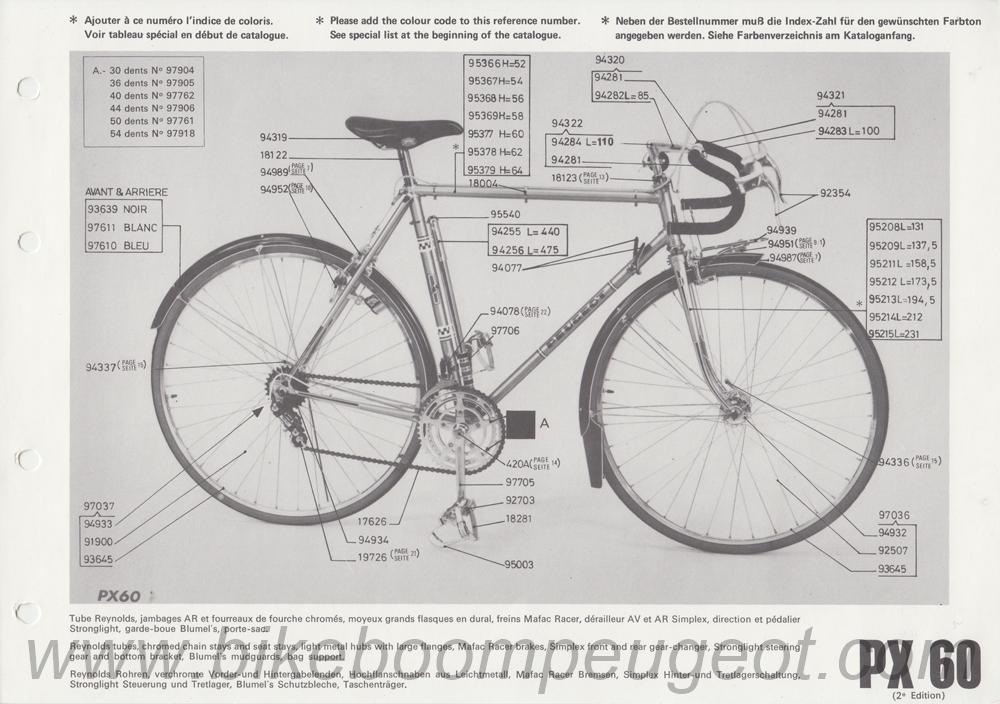

PX60 (2nd Ed.) |

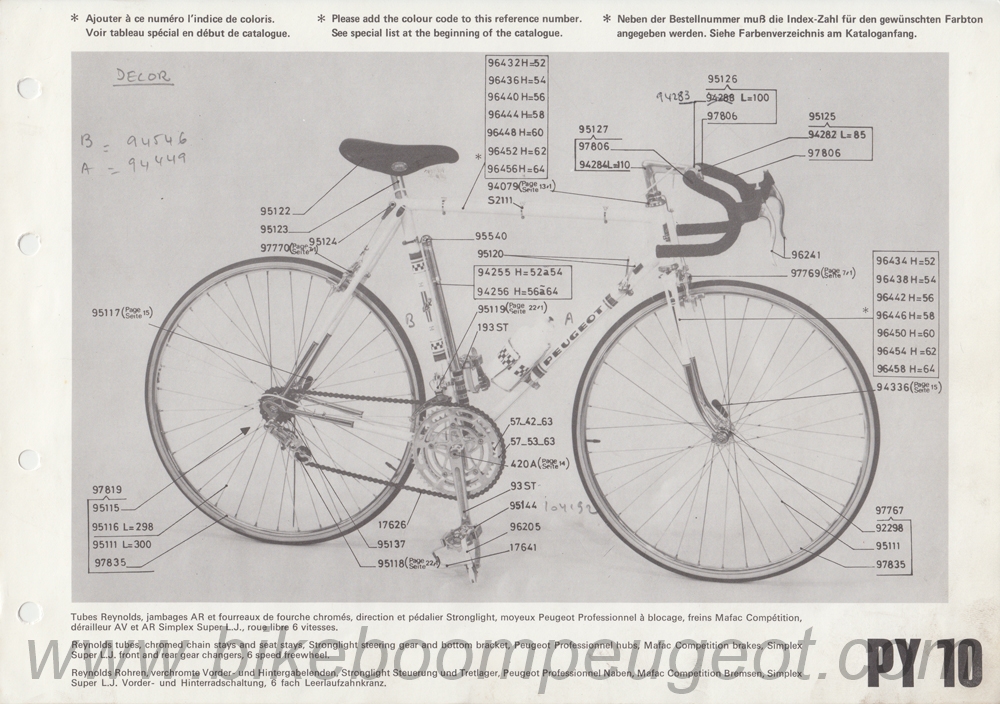

PY10 |

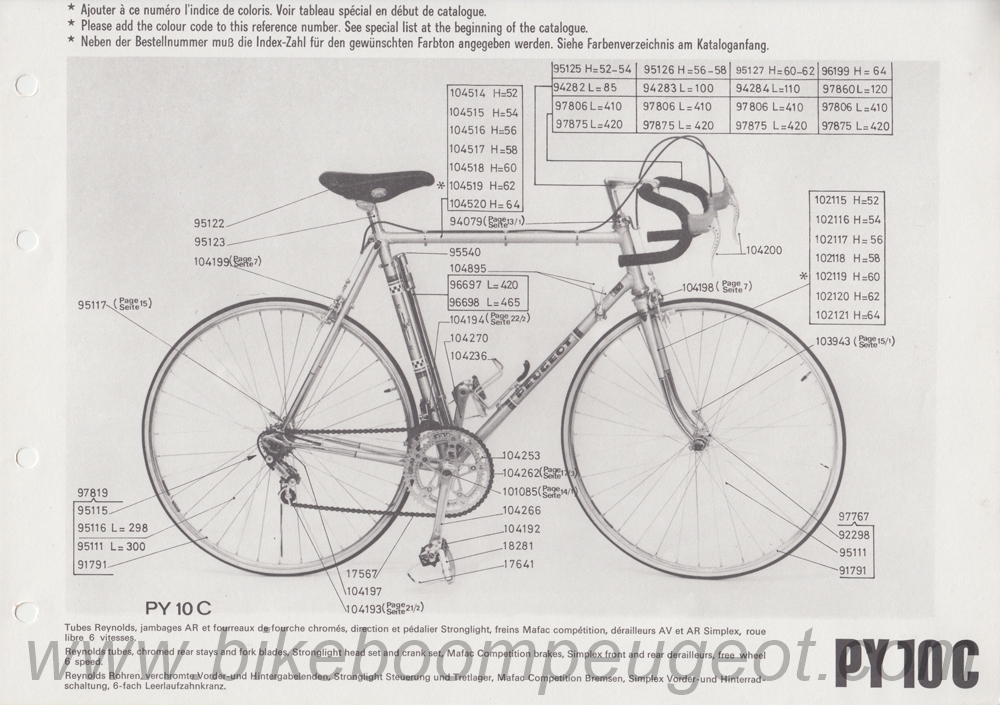

PY10C |
|
|
|
|
|
|
 |
|
|
|

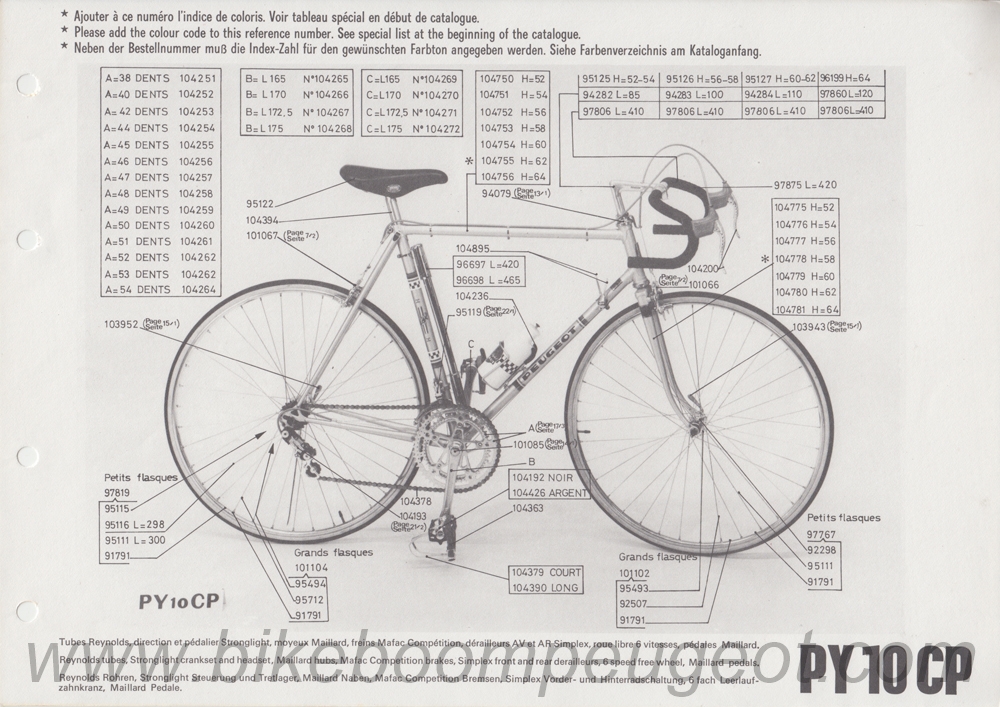

PY10CP |

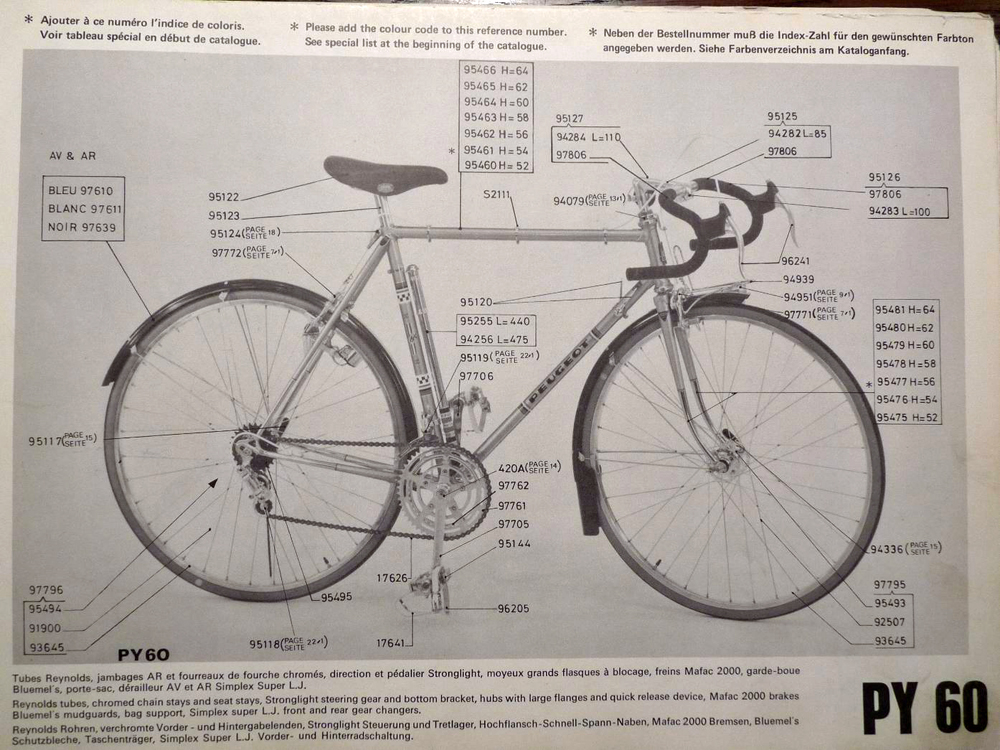

PY60 |

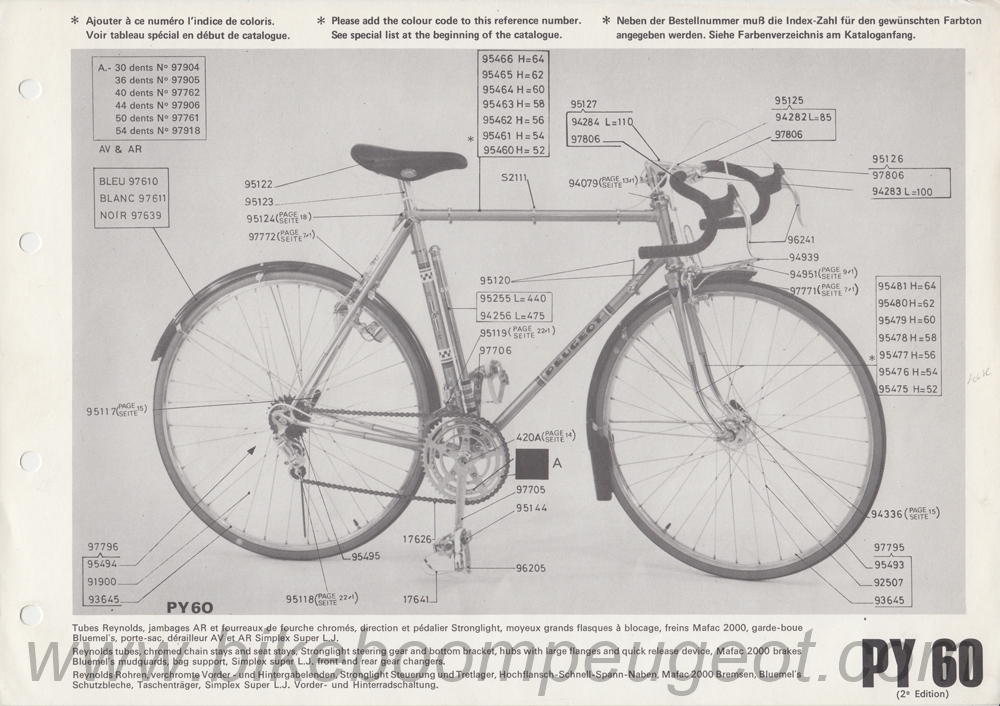

PY60 (2nd Ed.) |

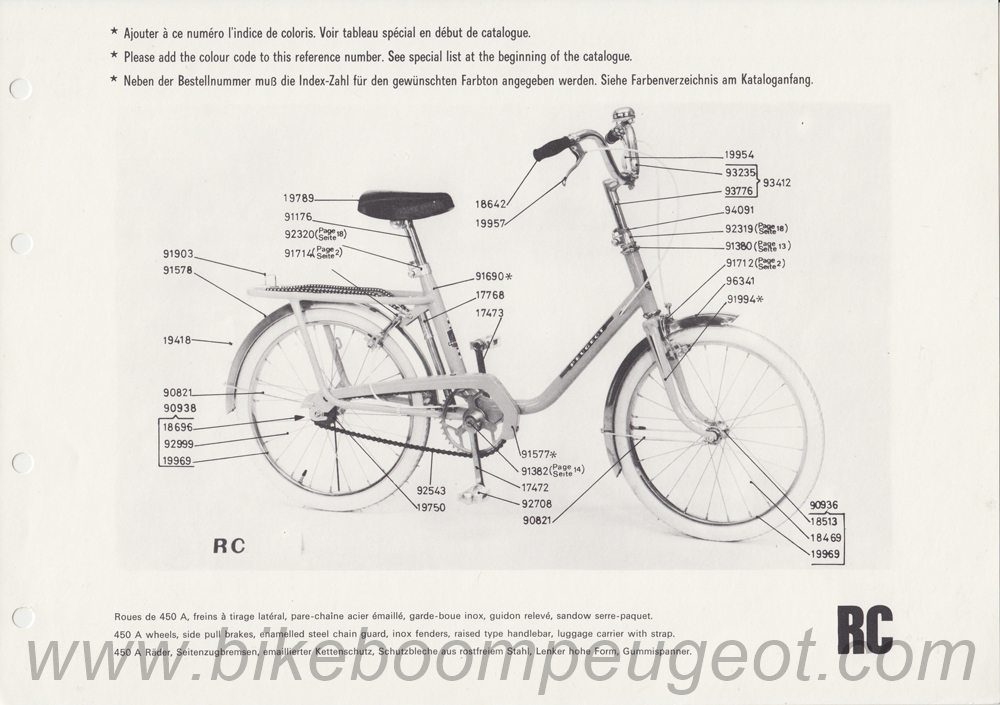

RC |

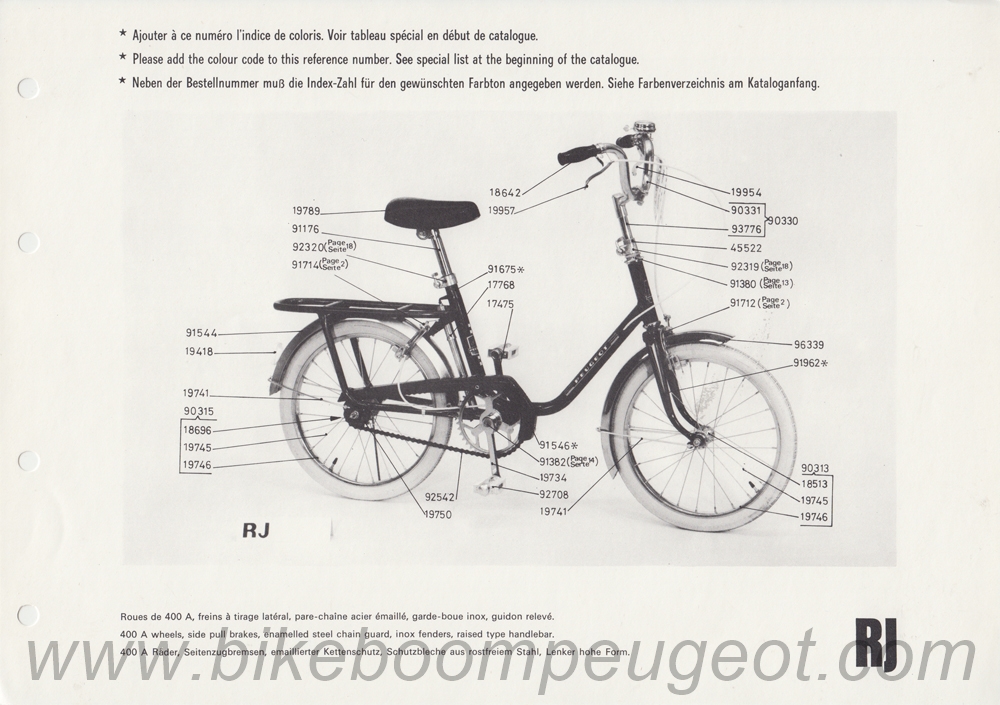

RJ |
| |
|
|
|
|
|
|
|
|
|

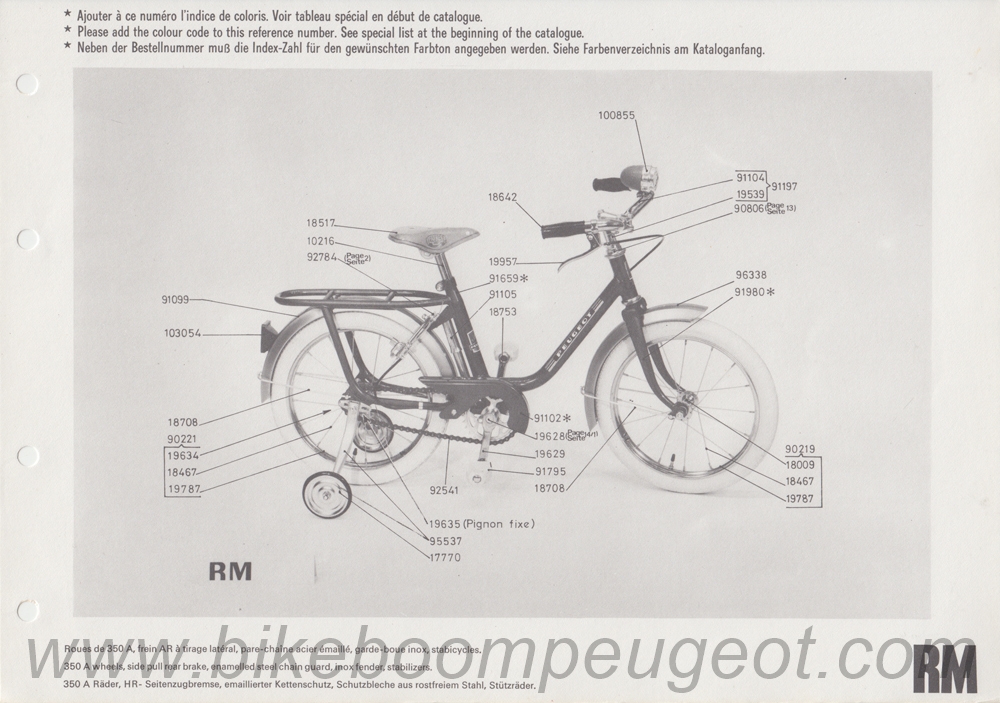

RM |

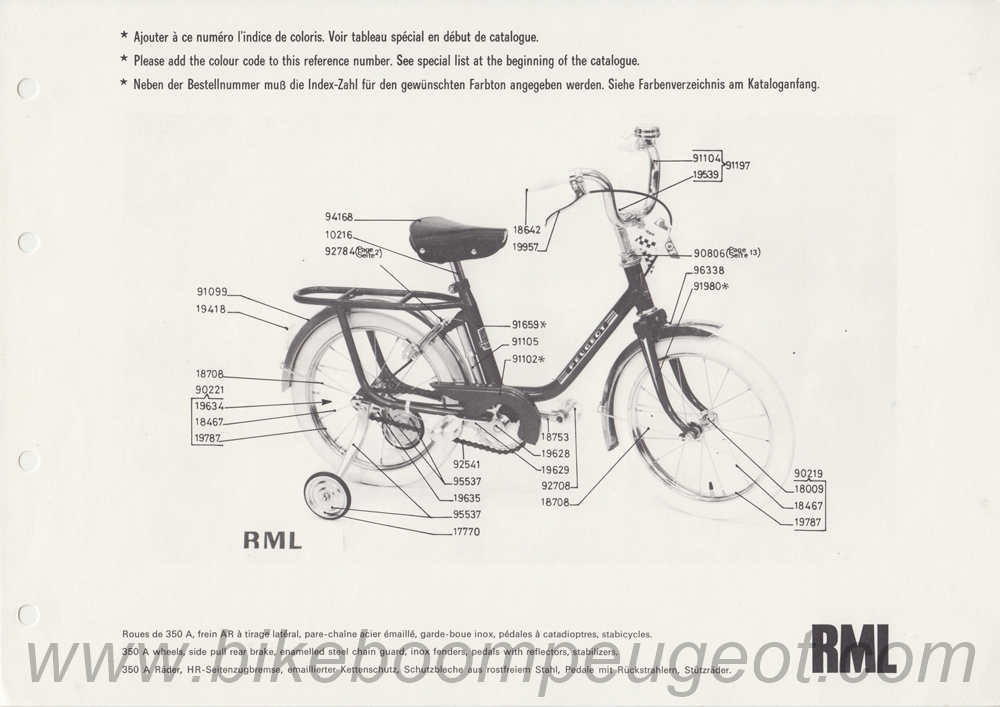

RML |
TH8 |

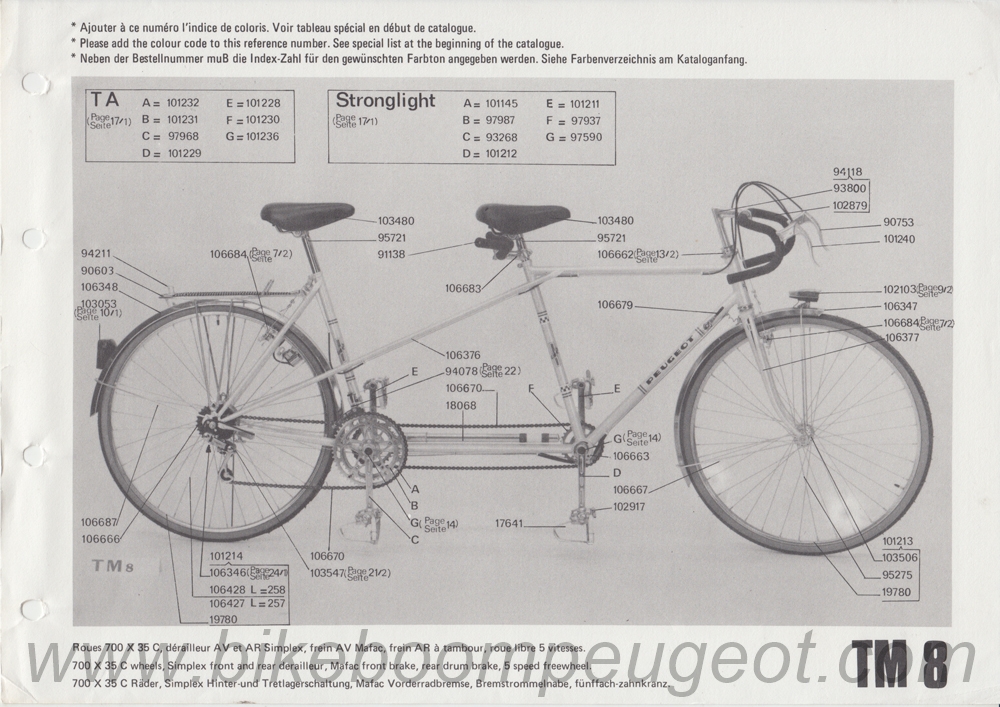

TM8 |
|
Table Des Matieres - Detail Des Matieres
The new and updated parts pages for the 2nd to 6th Editions are presented together in numerical page order and not separated by edition.
 |
 |
 |
 |
 |

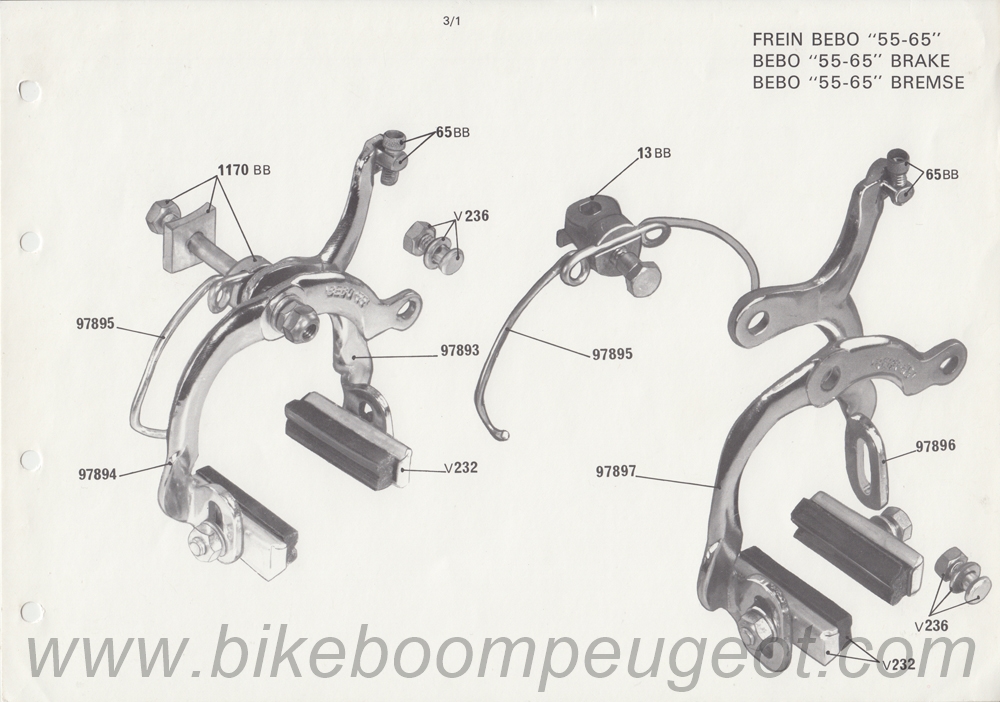

Bebo "55-65" Brake
Page 3/1
|
Mafac Race Brake
Page 7 (Different from Edition 1)
|

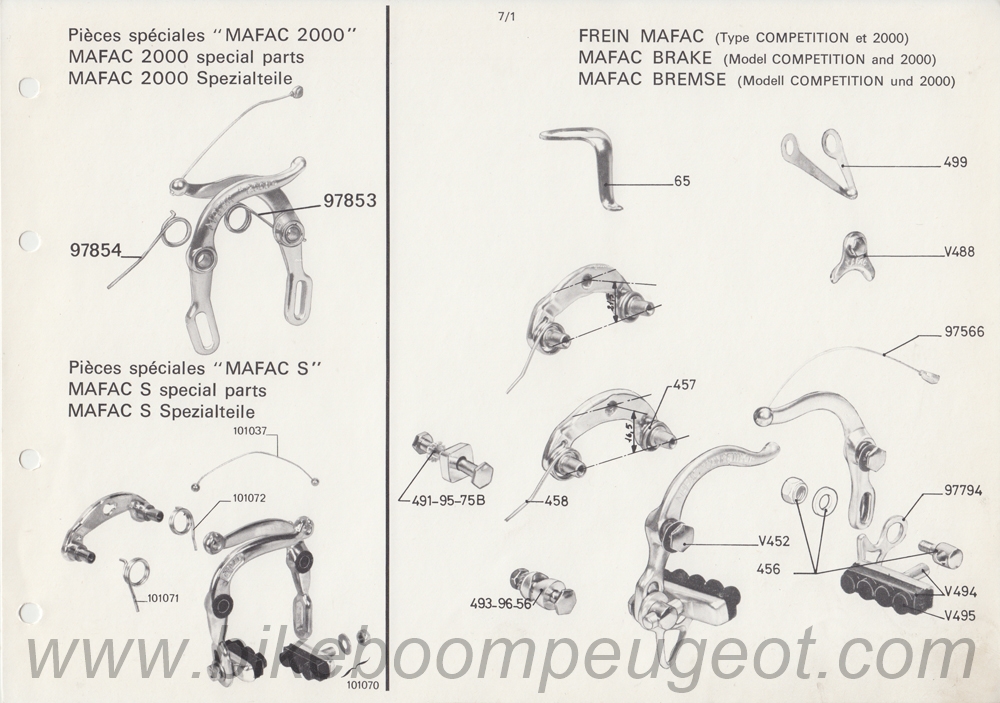

Mafac 2000, Mafac S, Mafac Brake
Page 7/1
|

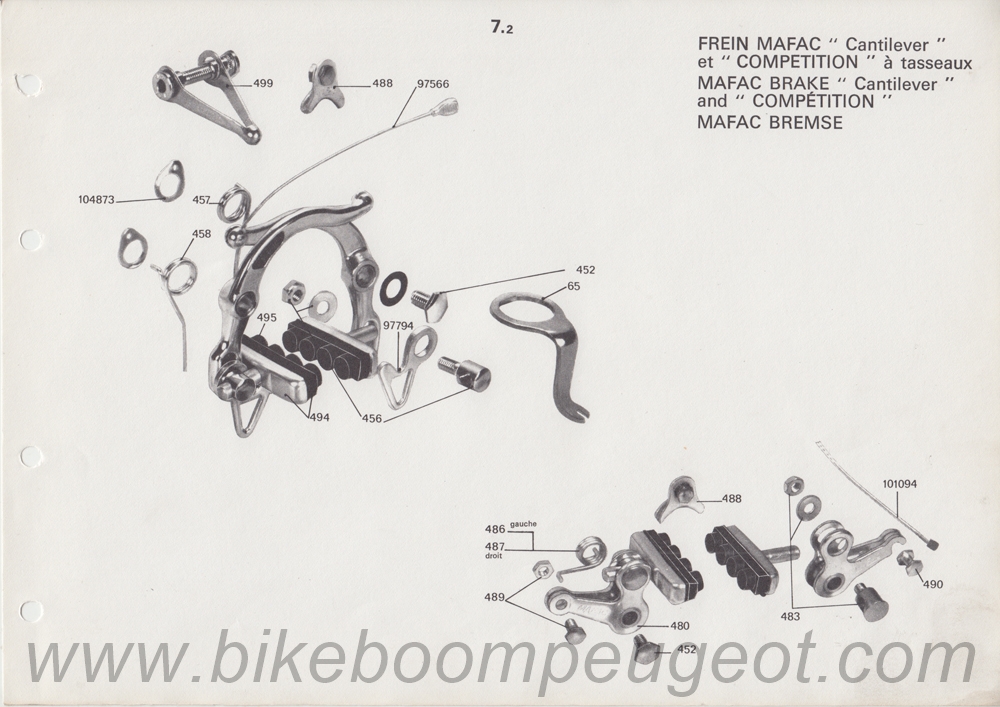

Mafac Brake Cantilever and Competition
Page 7.2
|

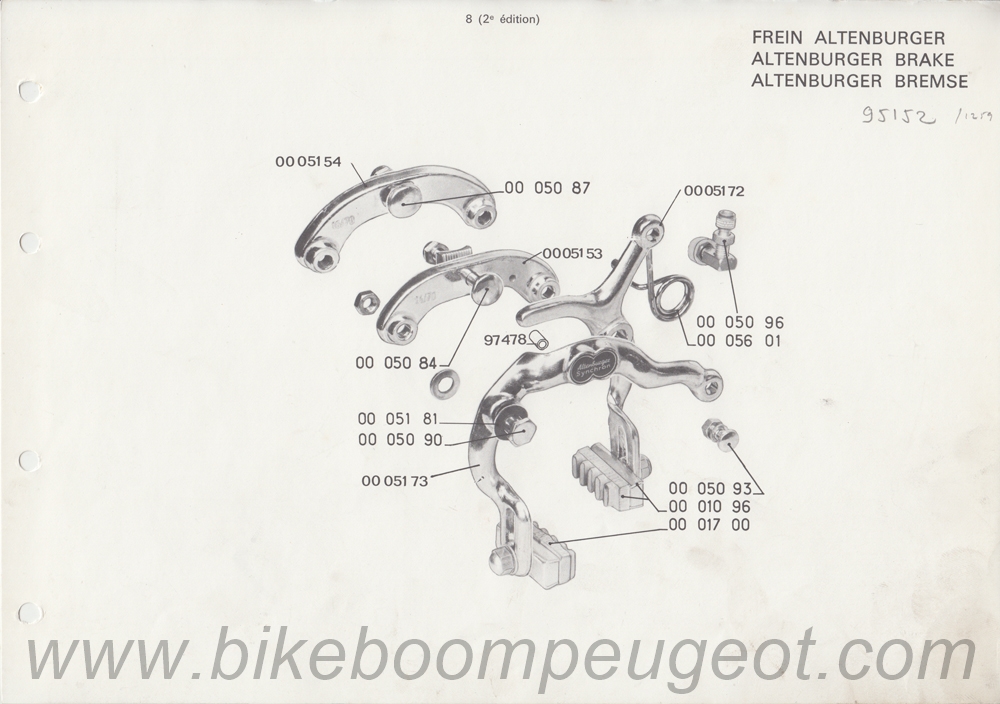

Altenburger Brake
Page 8 (2nd Edition)
|
| |
|
|
|
|
 |
 |
 |
 |
 |
CLB Brake
Page 8/1 |

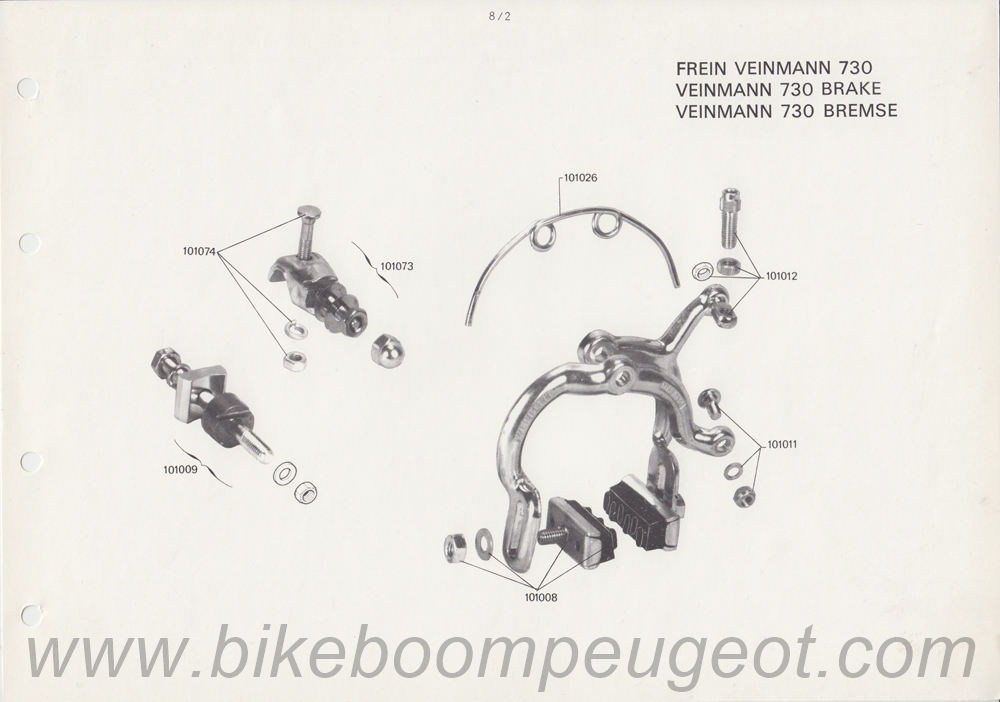

Veinmann 730 Brake
Page 8/2 |
Headlight

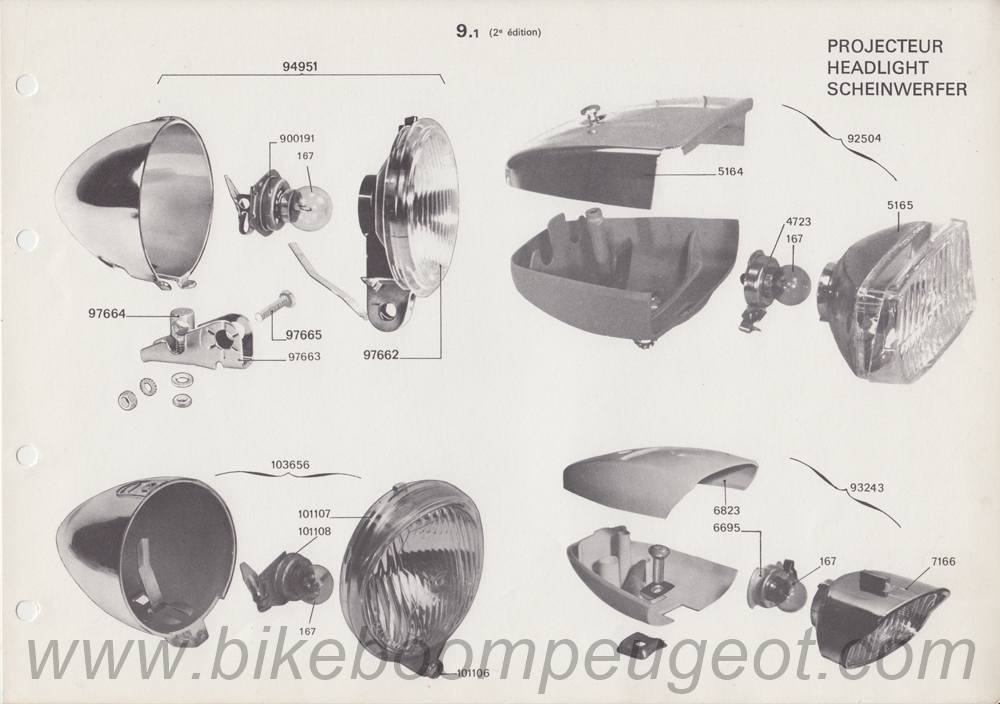

Page 9.1 (2nd Edition)
|

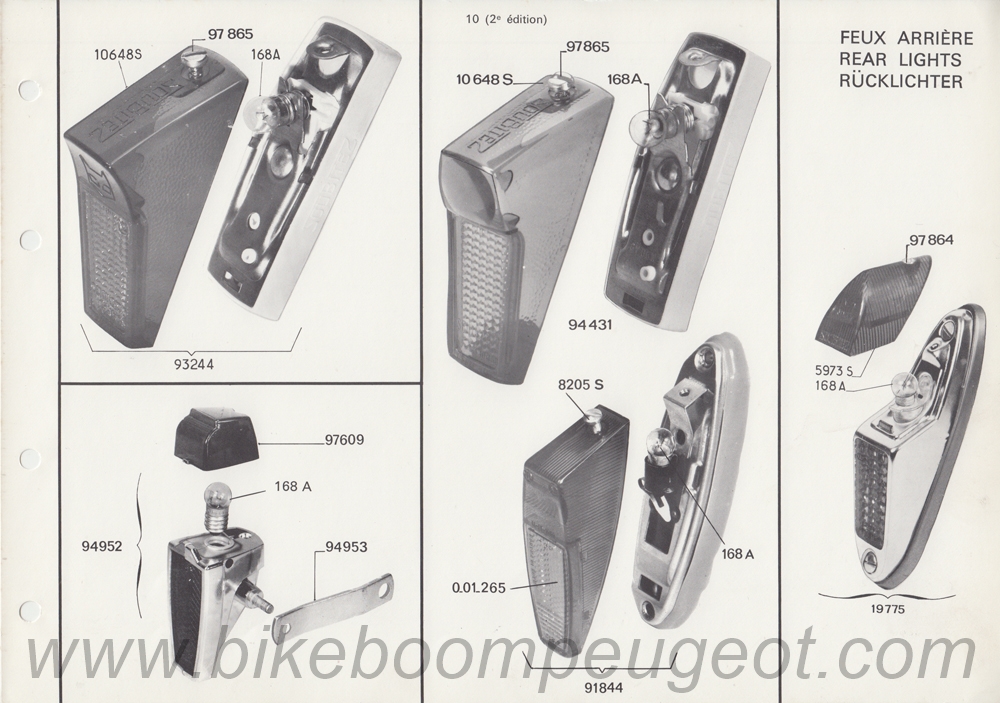

Rear Lights
Page 10 (2nd Edition)
|

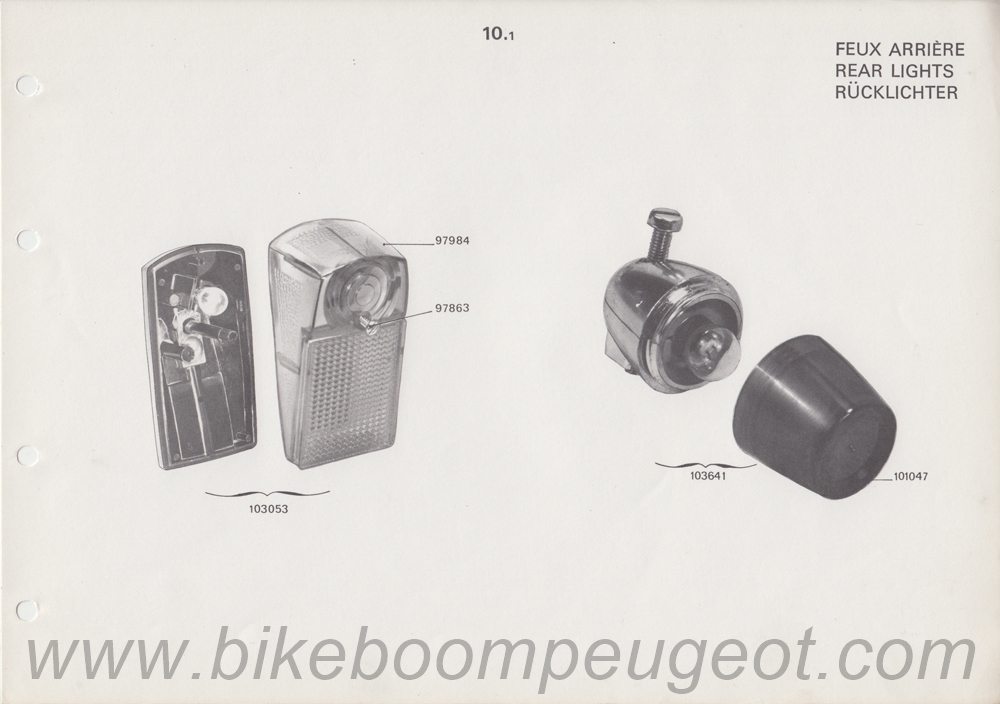

Rear Lights
Page 10.1 |
| |
|
|
|
|
 |
 |
 |
 |
 |

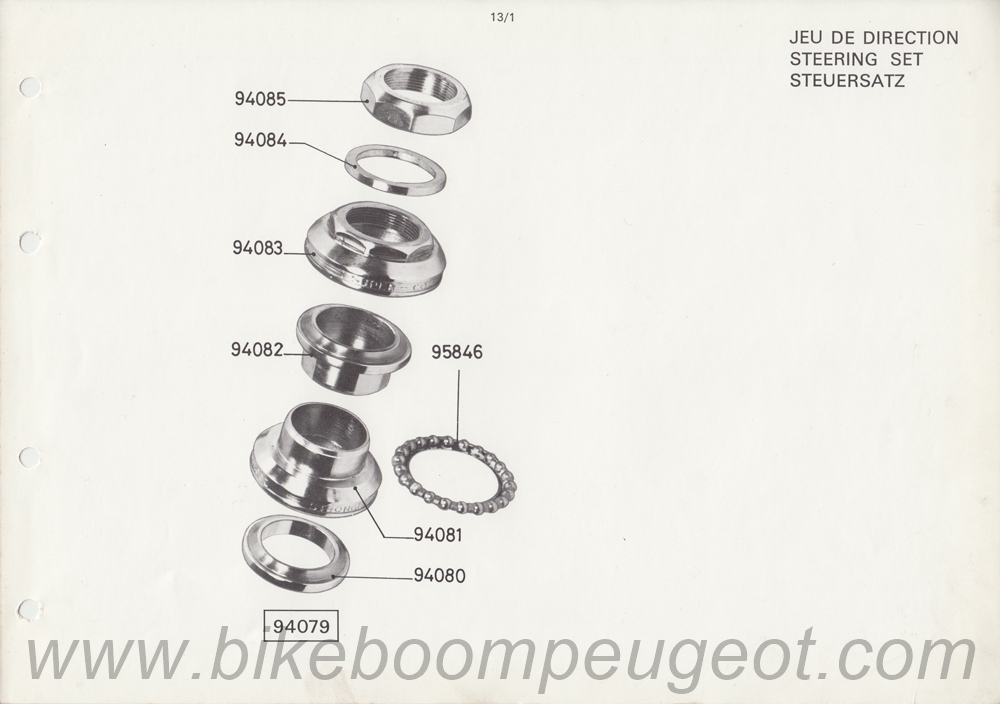

Steering Set
Page 13/1 |

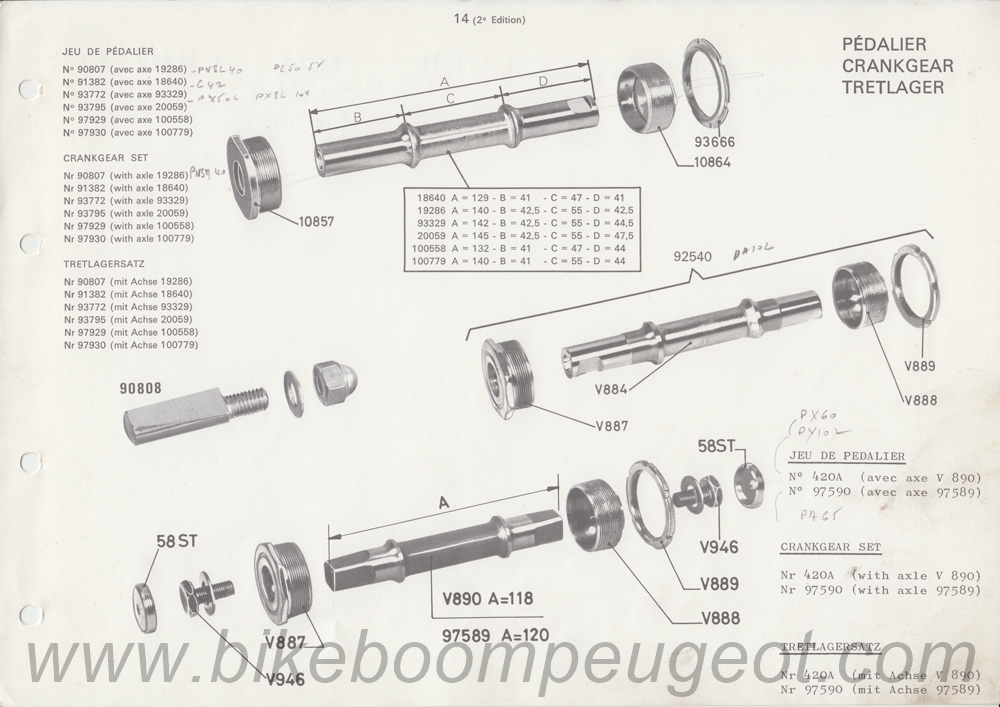

Crankgear
Page 14 (2nd Edition)
|

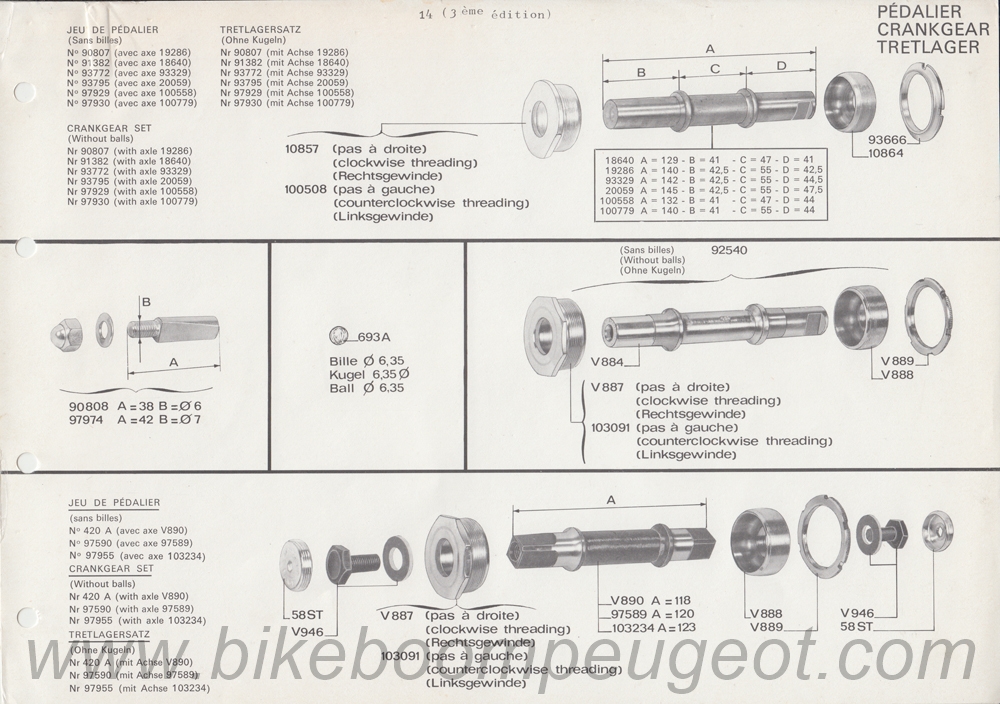

Crankgear
Page 14 (3rd Edition)
|
Crankgear

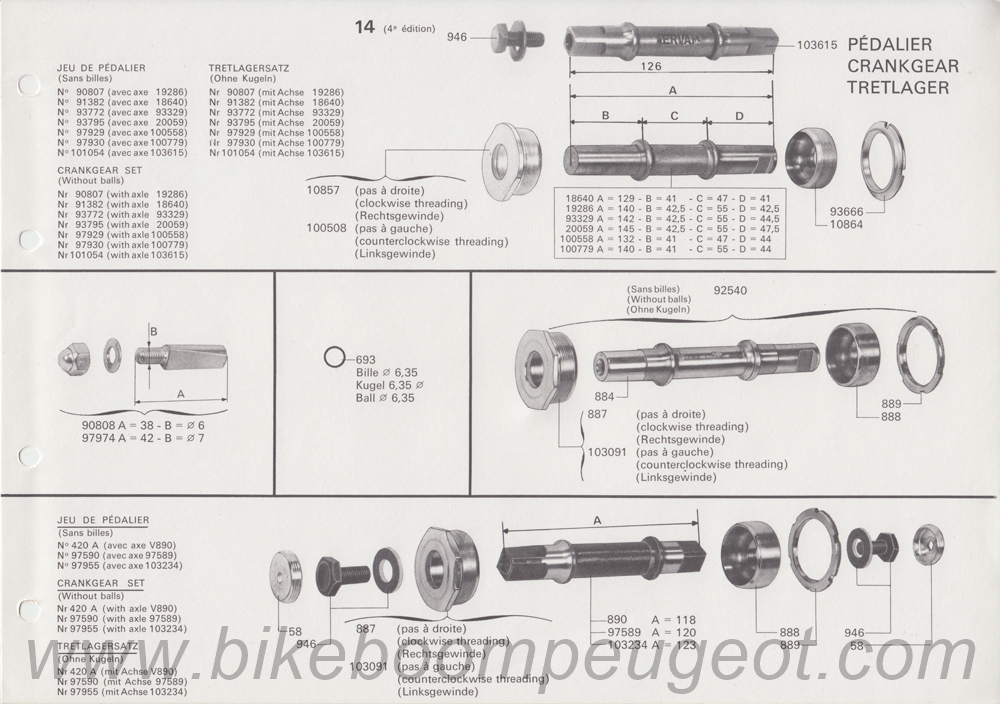

Page 14 (4th Edition) |
Crankgear

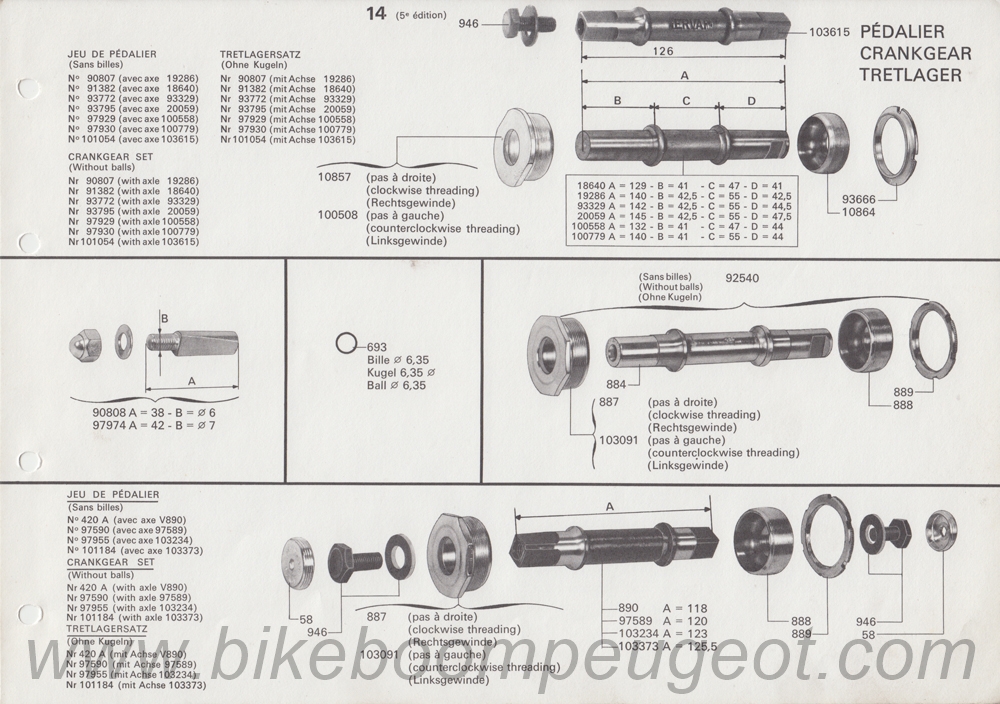

Page 14 (5th Edition) |
| |
|
|
|
|
 |
 |
 |
 |
 |

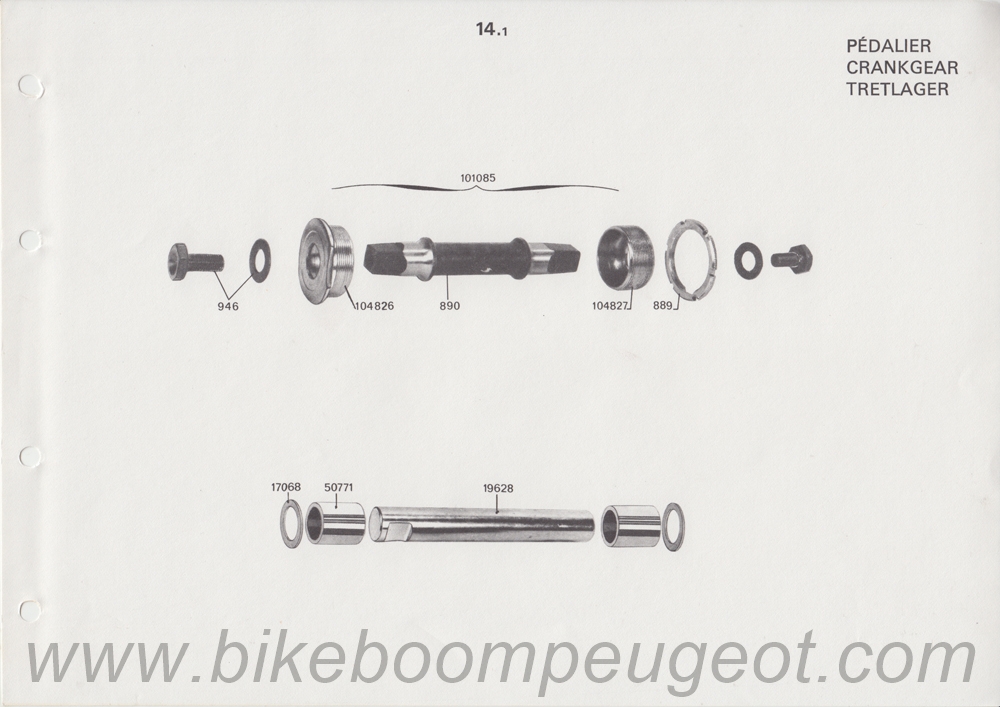

Crankgear
Page 14.1 |

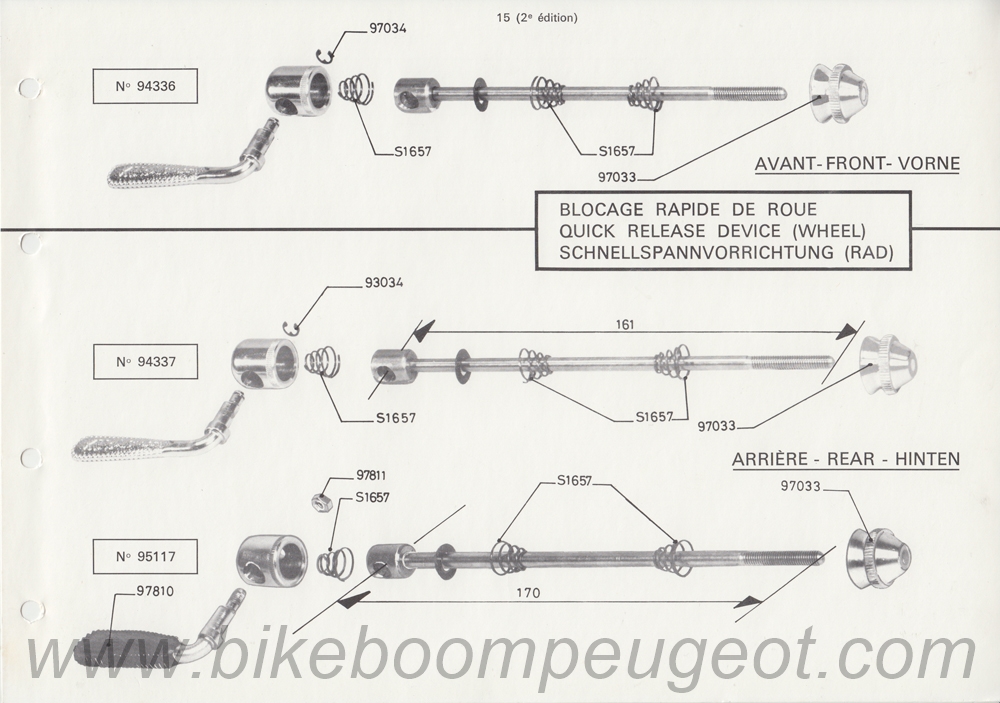

Crankgear
Page 15 (2nd Edition)
|

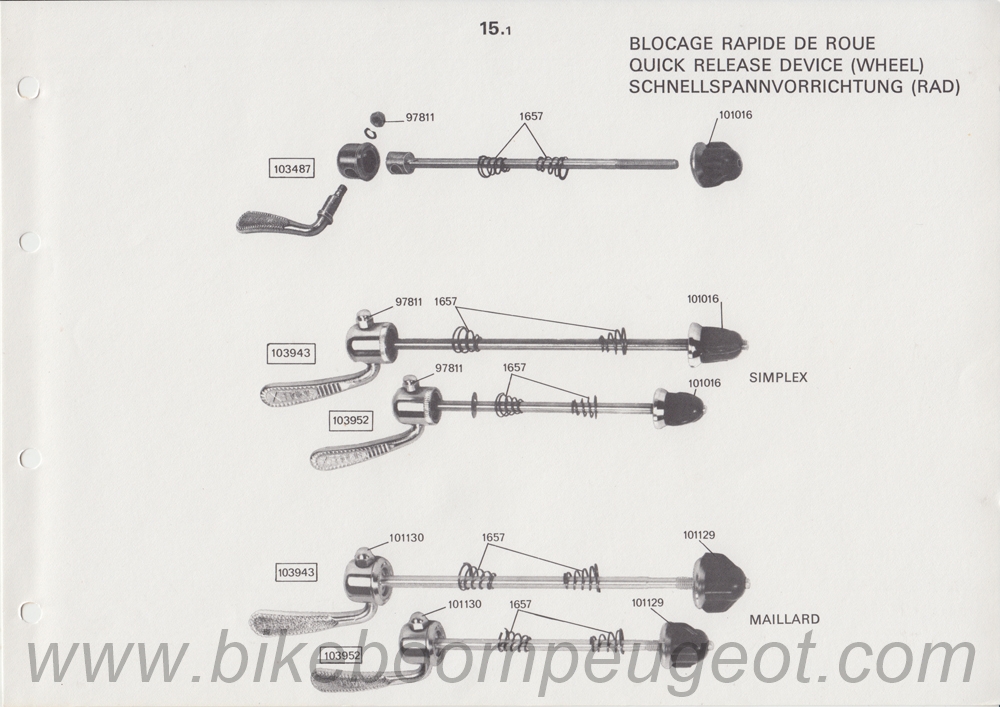

Quick Release Device (Wheel)
Page 15.1 |
Stand

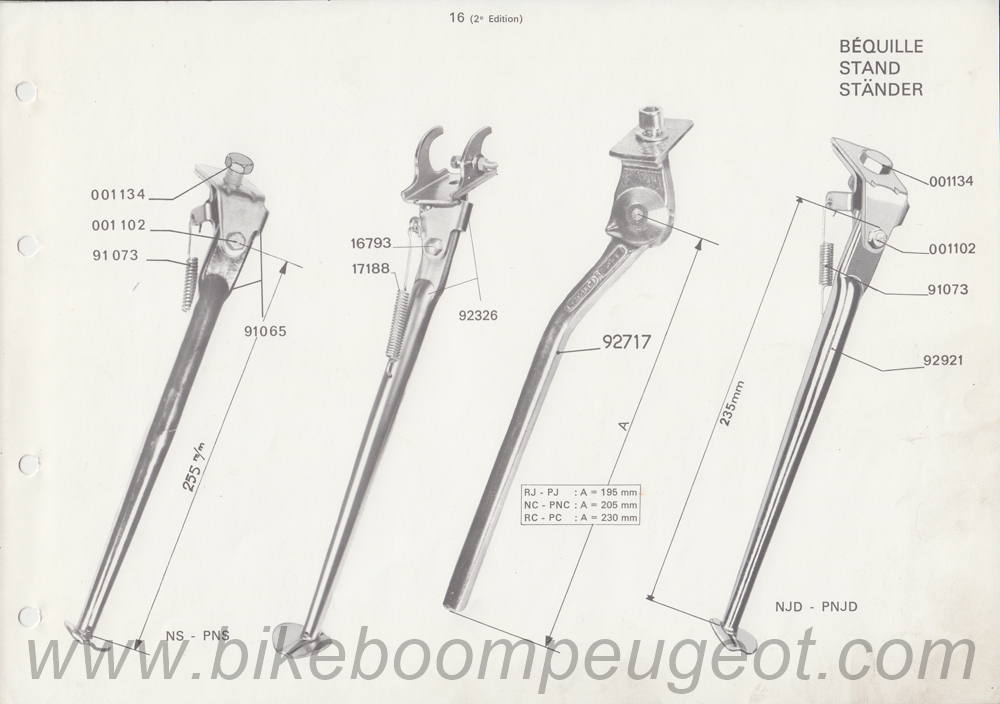

Page 16 (2nd Edition)
|

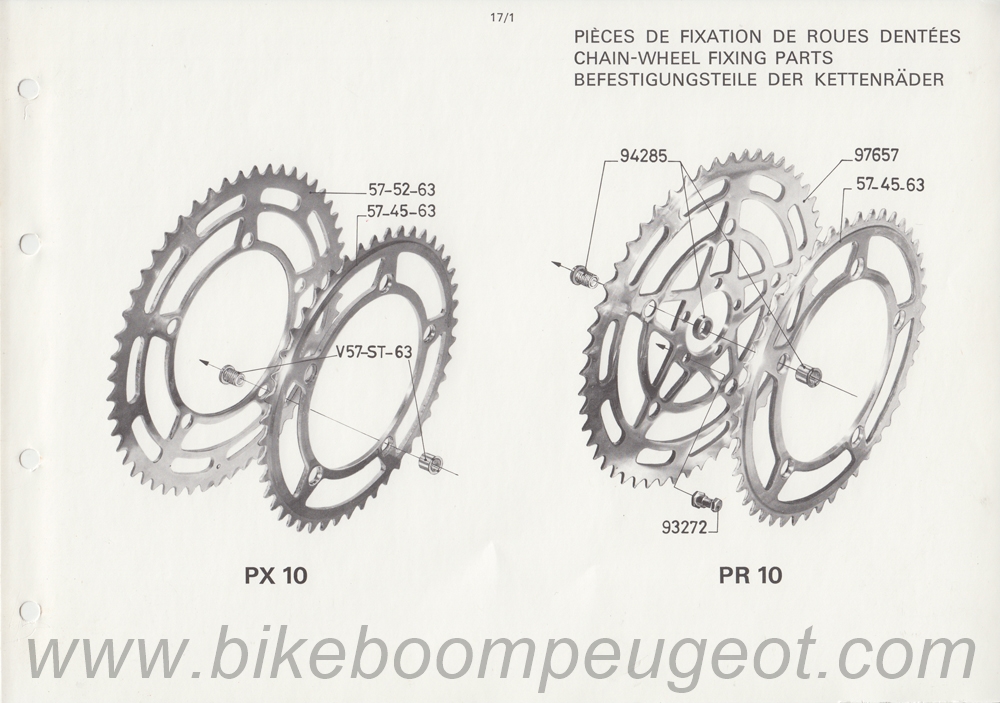

Chain-Wheel Fixing Parts
Page 17/1 |
| |
|
|
|
|
 |
 |
 |
 |
 |

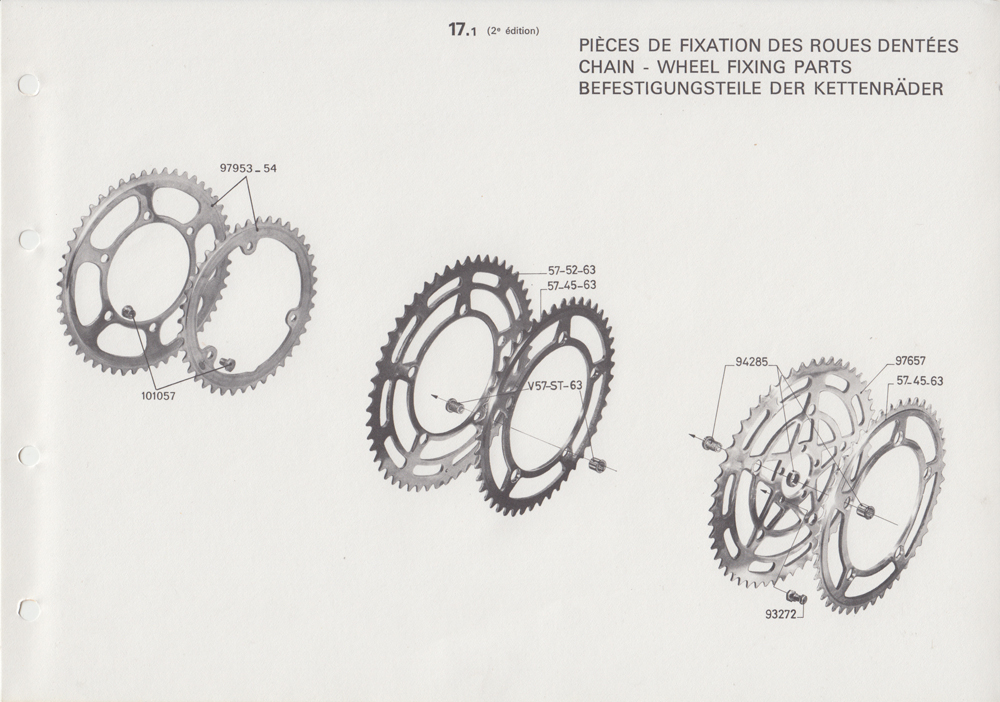

Chain-Wheel Fixing Parts
Page 17/1 (2nd Edition) |

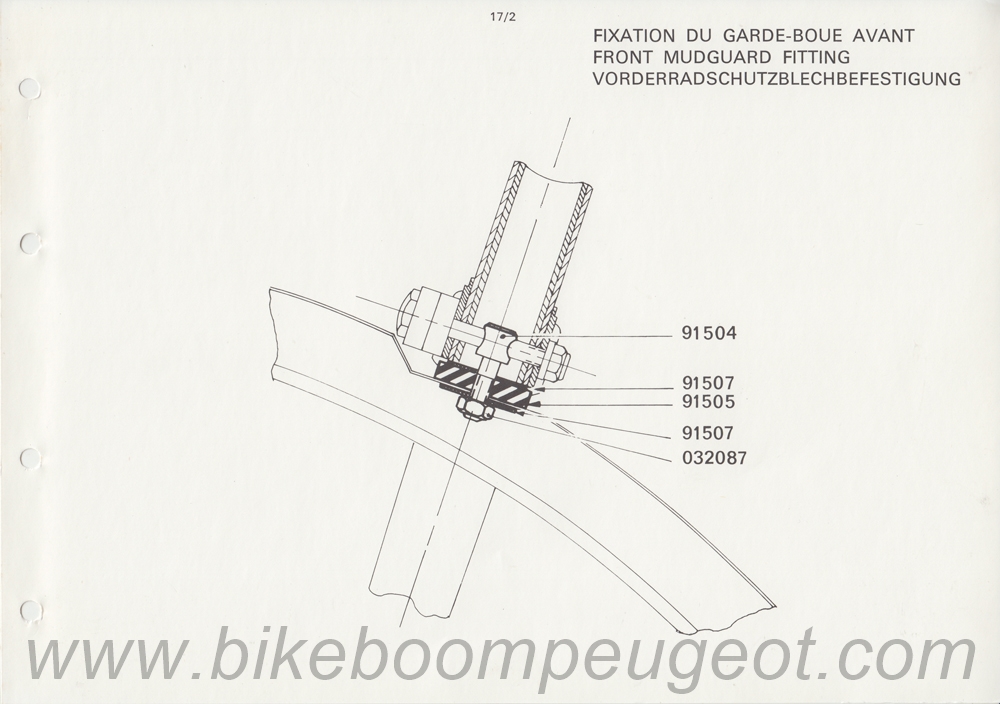

Front Mudguard Fitting
Page 17/2 |

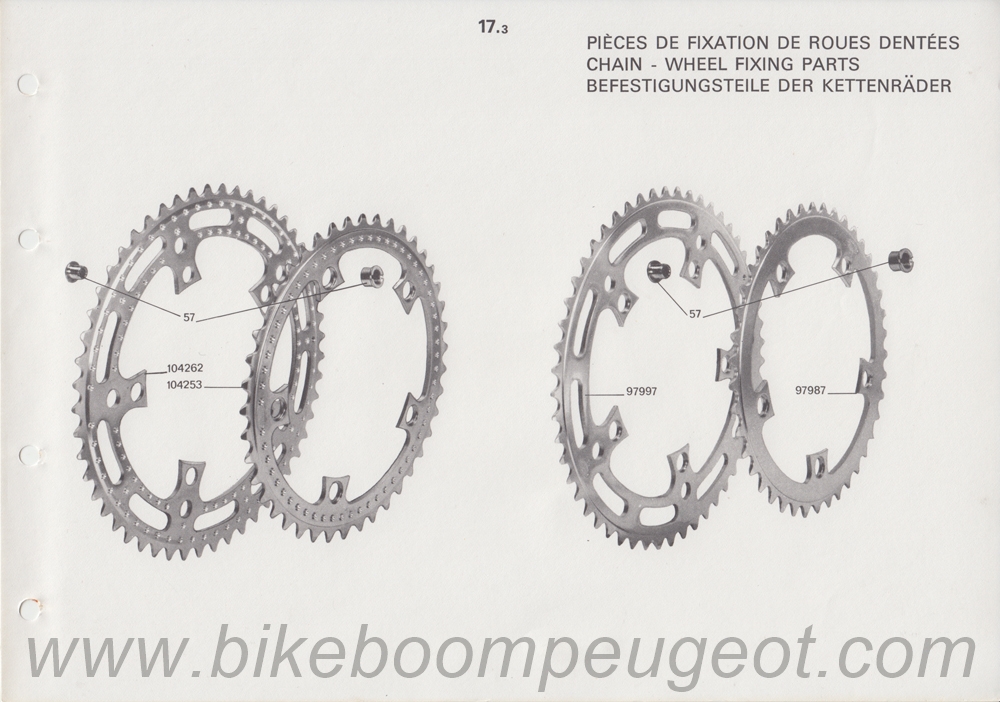

Chain-Wheel Fixing Parts
Page 17.3 |

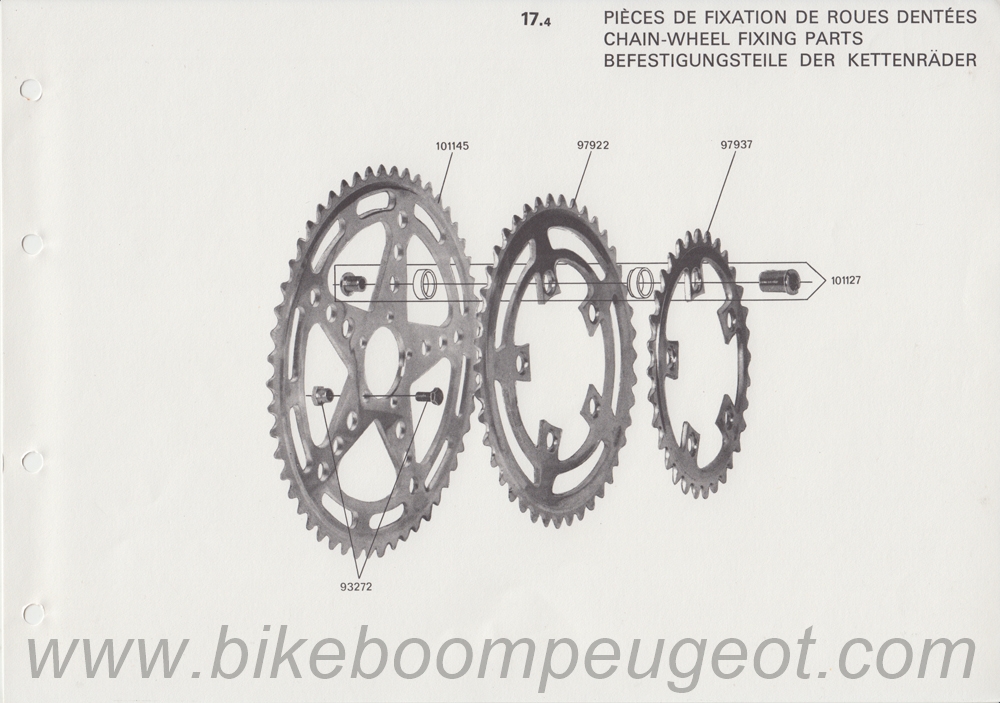

Chain-Wheel Fixing Parts
Page 17.4 |

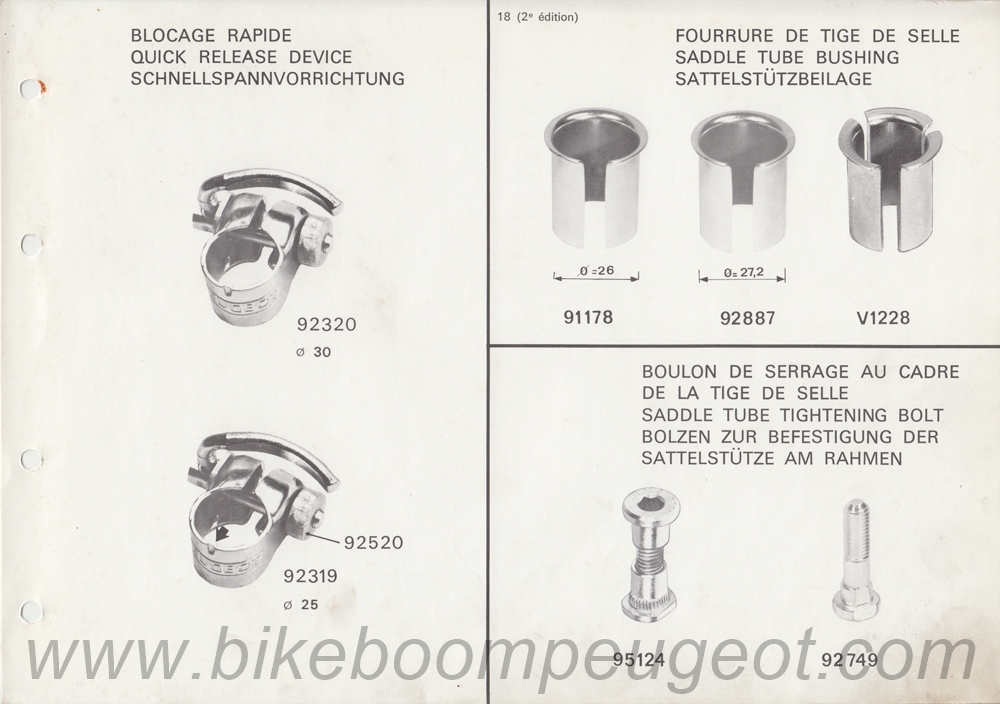

Saddle Tube Bushing
Page 18 (2nd Edition)
|
| |
|
|
|
|
 |
 |
 |
 |
 |

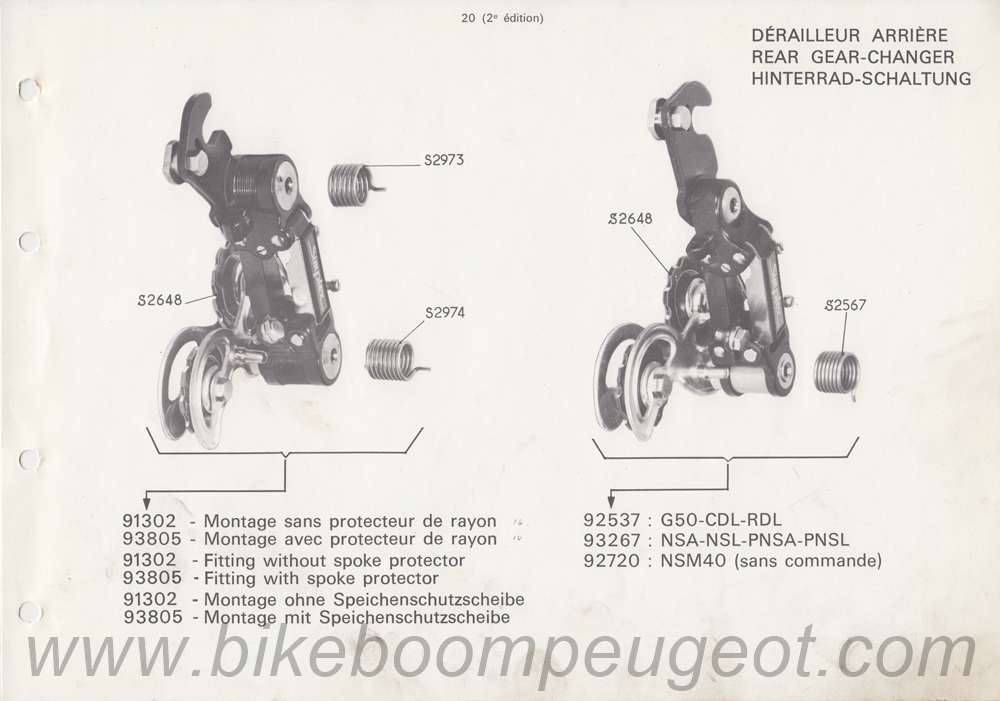

Rear Gear-Changer
Page 20 (2nd Edition) |

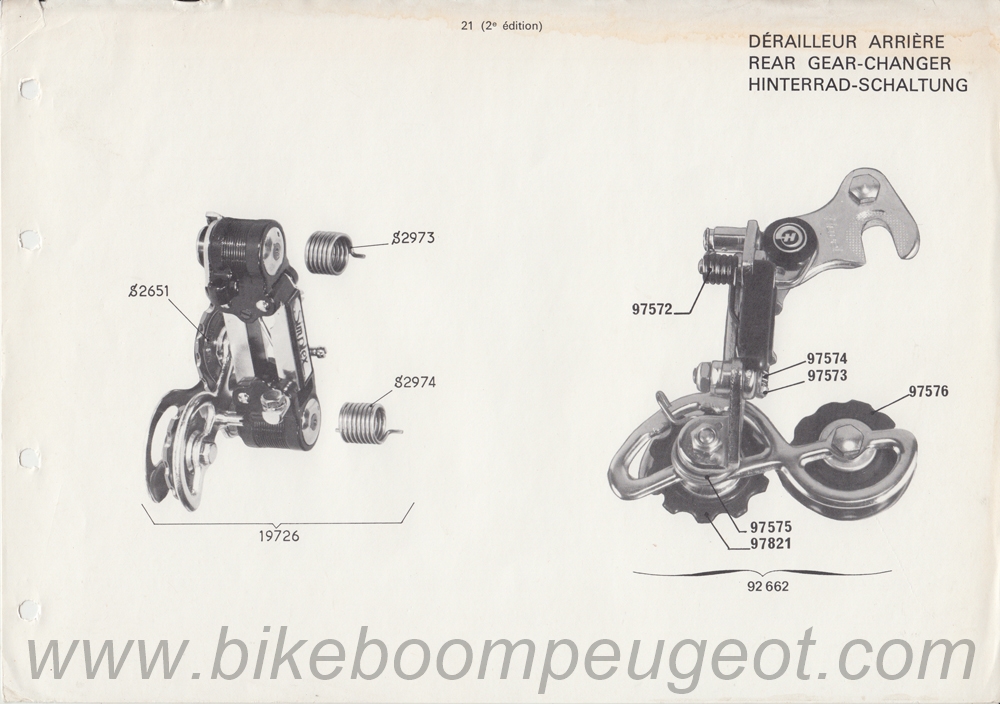

Rear Gear-Changer
Page 21 (2nd Edition) |

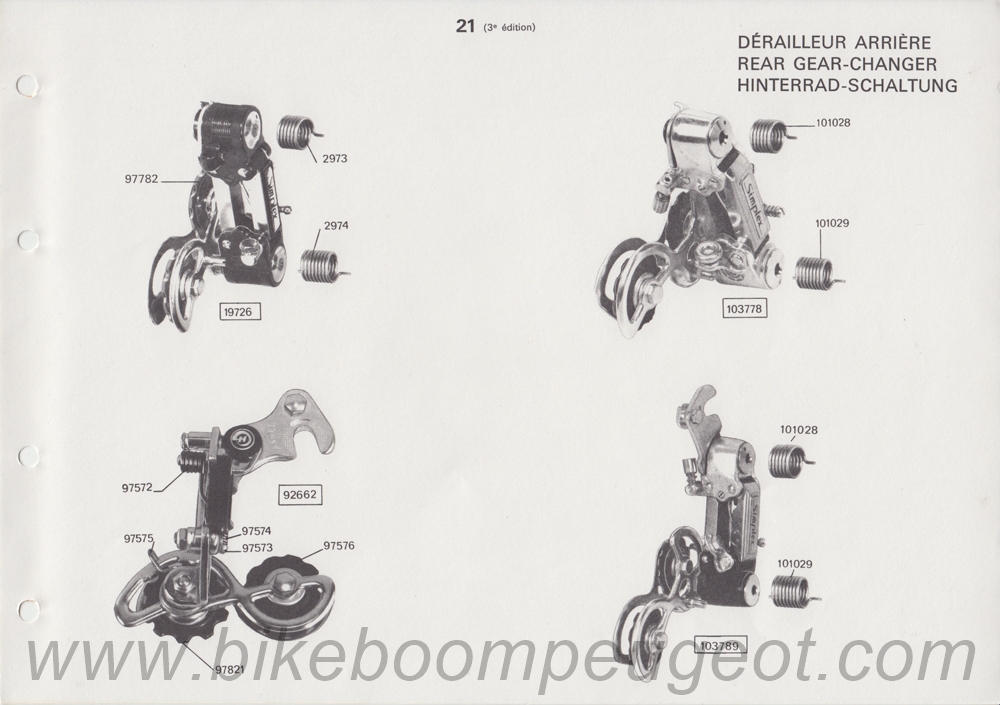

Rear Gear-Changer
Page 21 (3rd Edition) |

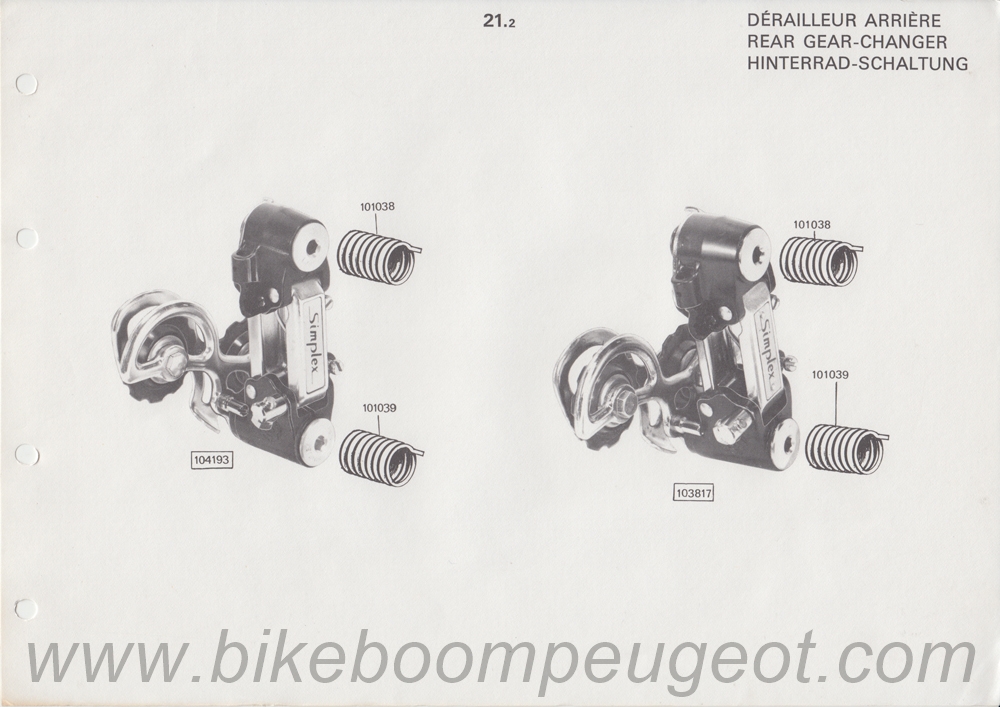

Rear Gear-Changer
Page 21.2 |

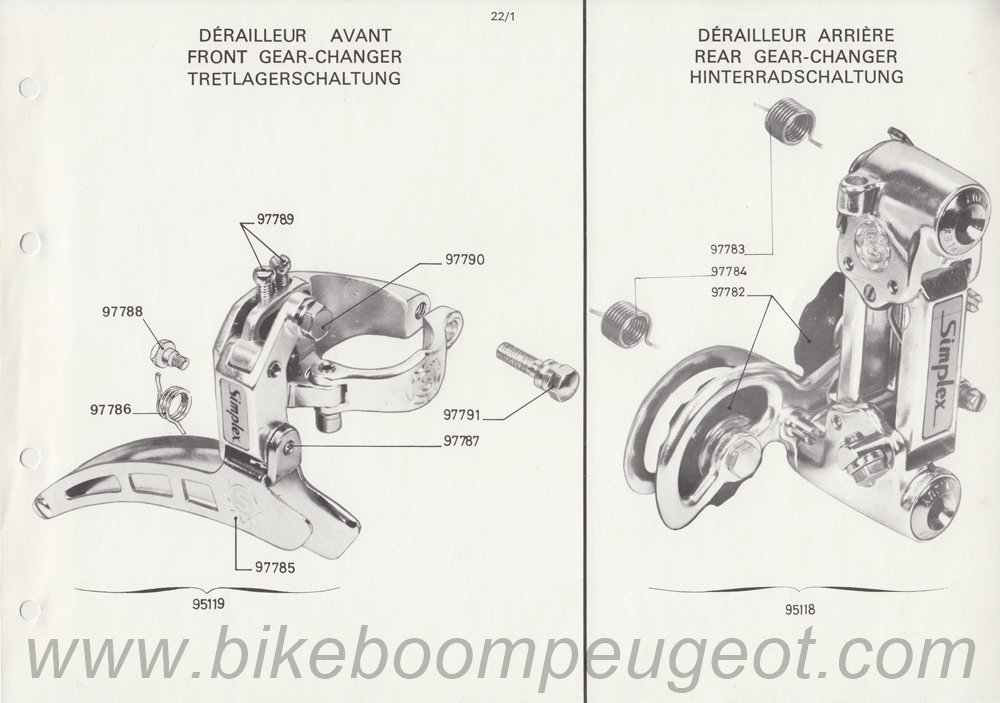

Front Gear-Changer
Rear Gear-Changer
Page 22/1 |
| |
|
|
|
|
 |
 |
 |
|
|

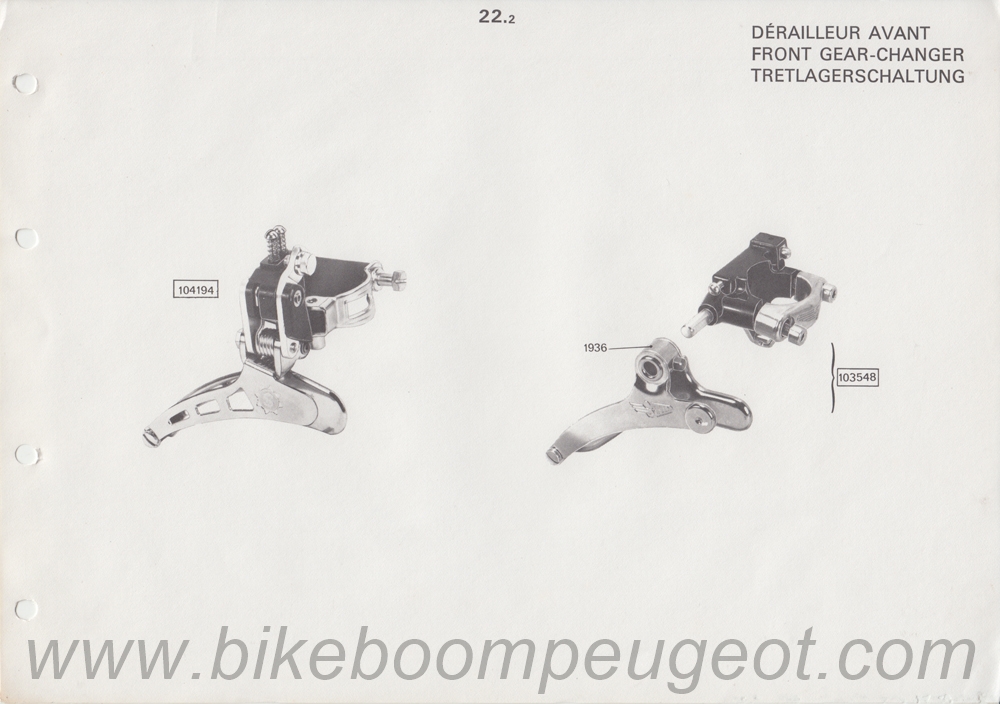

Front Gear-Changer
Page 22.2 |

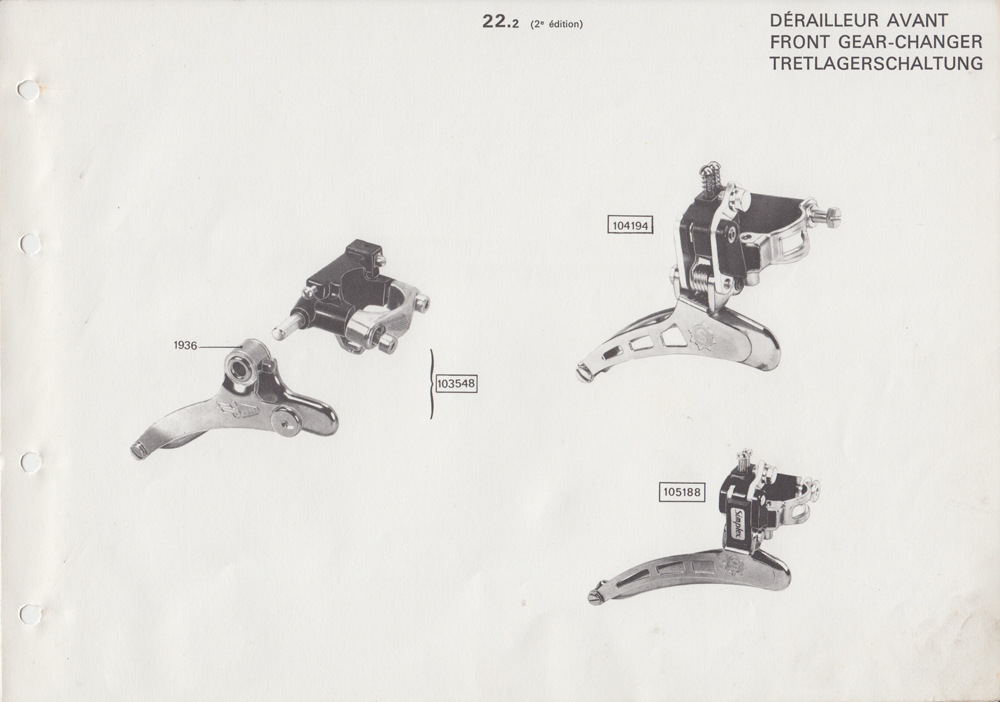

Front Gear-Changer
Page 22.2
Page 22.2 (2nd Edition) |

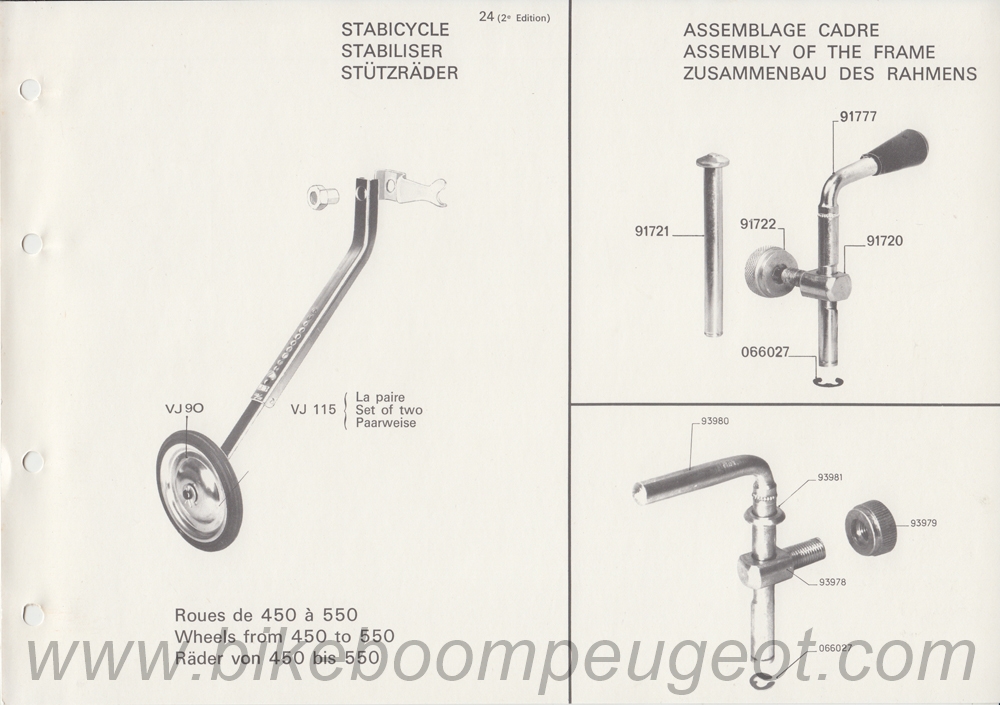

Stabiiser
Assembly of the Frame
Page 24 (2nd Edition)
|
|
|
|
